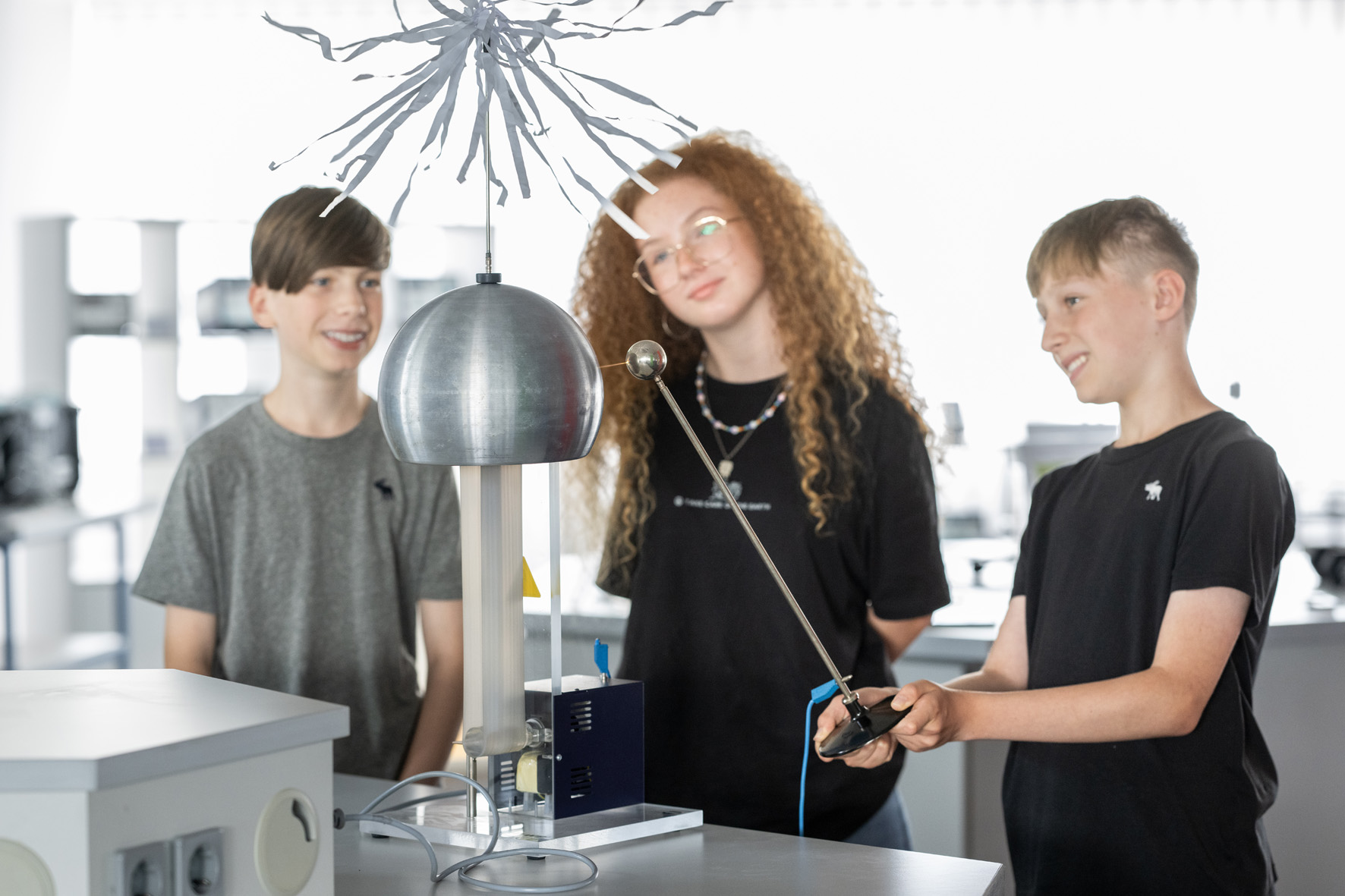

Van-de-Graaff generator
Article No: 07645-97
Compact device for generating high direct voltage. Delivered fully ready for operation – no assembly required Maintains stable and constant polarity during operation Achieves a spark length of up to approx. 120 mm Technical Specification Integrated motor for mains operation; additional crank for manual operation Detachable conductor sphere with 4 mm socket Conductor sphere diameter: 210 mm Output voltage: max. 150…200 kV Supply voltage: 230 V Height: approx. 58 cm Includes conductor sphere (d = 40 mm) on rod with insulating base Neon tube 50 cm connection lead Can also be operated with a 60 Hz generator (maximum continuous operation: 30 minutes)
