PEM Solar-Hydrogen Tutorial Pro Set
Article No: 06762-00

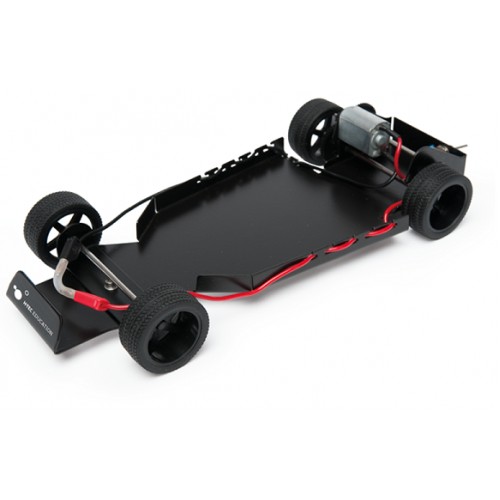

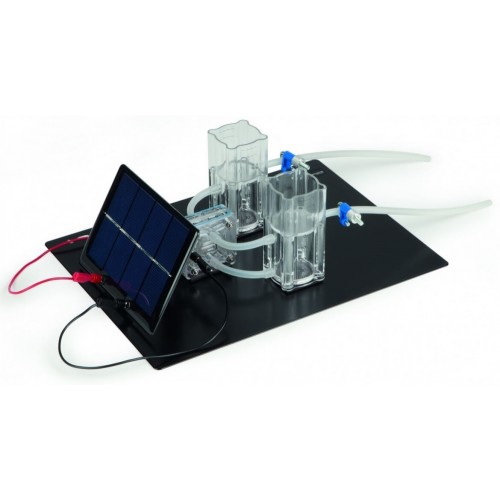

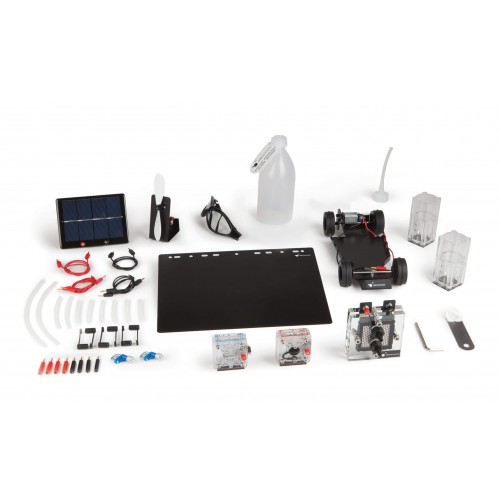

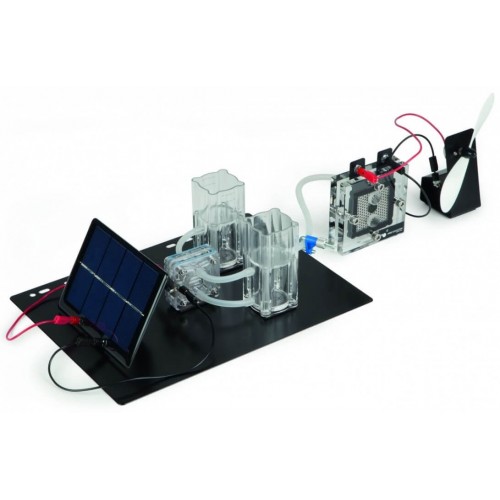

Modular solar hydrogen experimantation system Consisting of a solar module, PEM electrolyzer, hydrogen and oxygen storage tanks, PEM fuel cell and electric load fan. Contains a dismountable PEM fuel cell as well as an automotive and a metal base plate. The single components are equipped with a magnetic base, which allows for a modular arrangement. Electrolyzer: 1.16 W (0 - 2 V DC, 0 - 2 A). Fuel cells: 500 mW (0.4 - 0.96 V). Gas storage: each 30 cm³. Solar module: 2.0 V / 600mA (135 x 95 x 30 mm). Fan: 10 mW.
