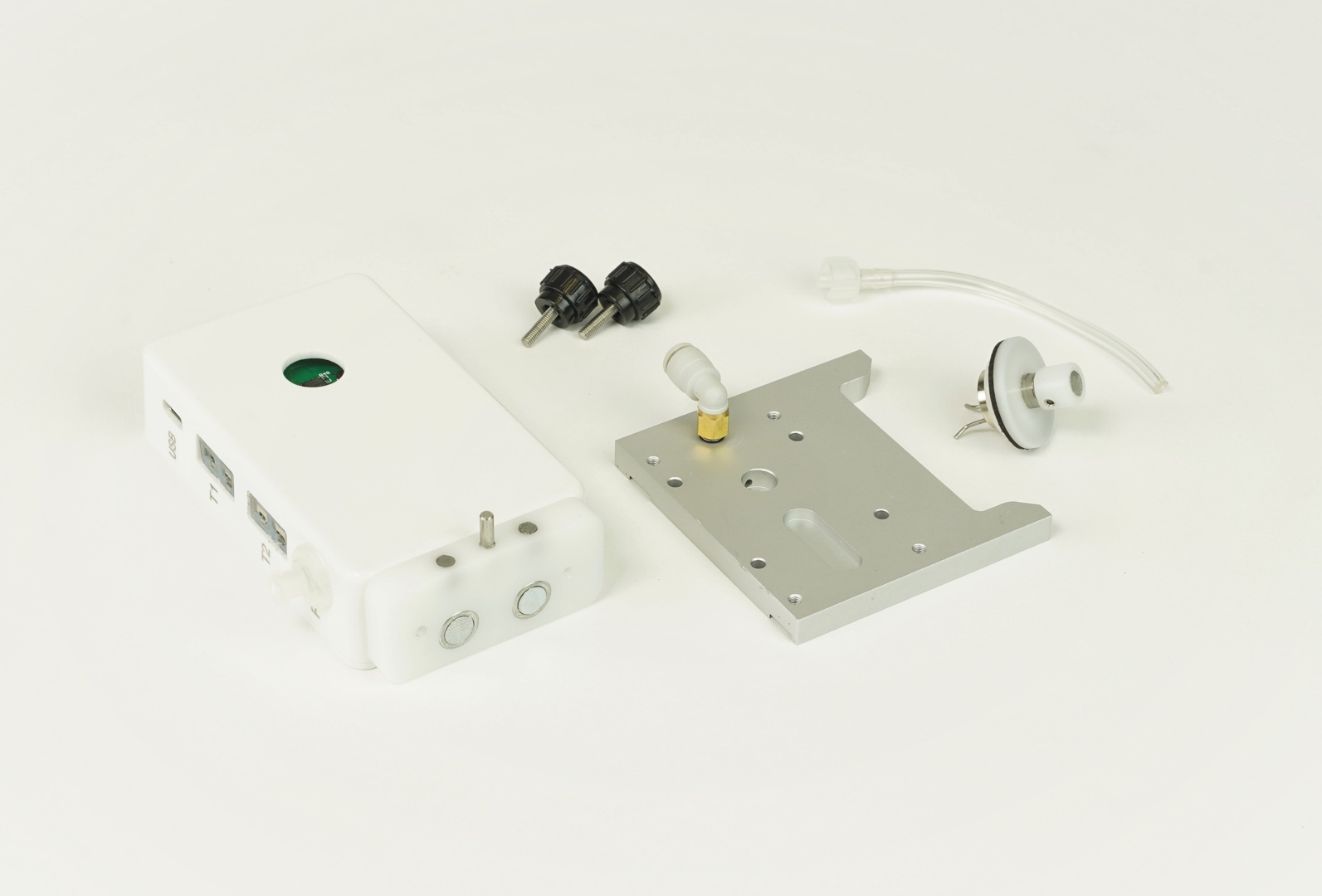

Stirling Engine Datalogging Module
Article No: 04372-10

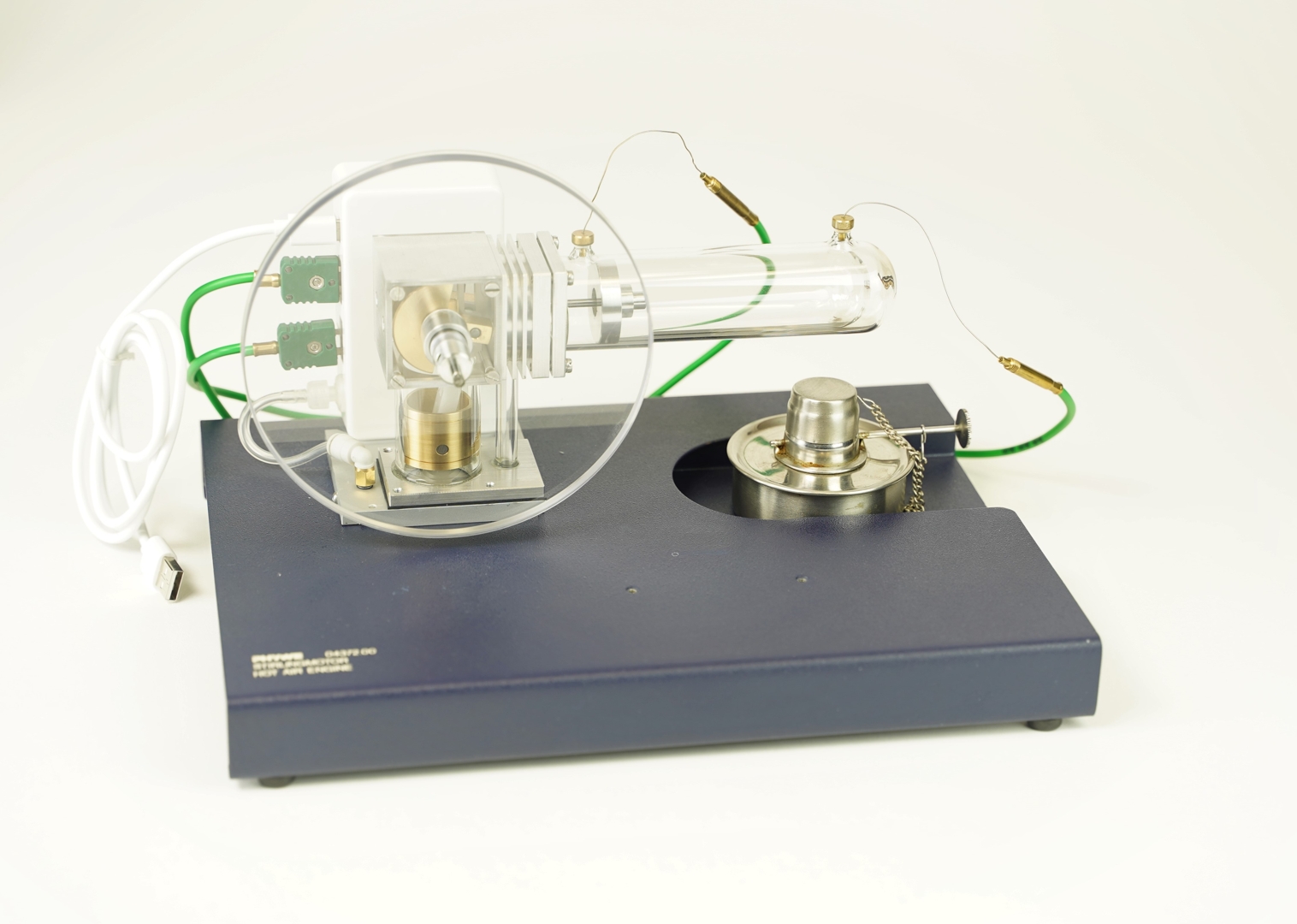

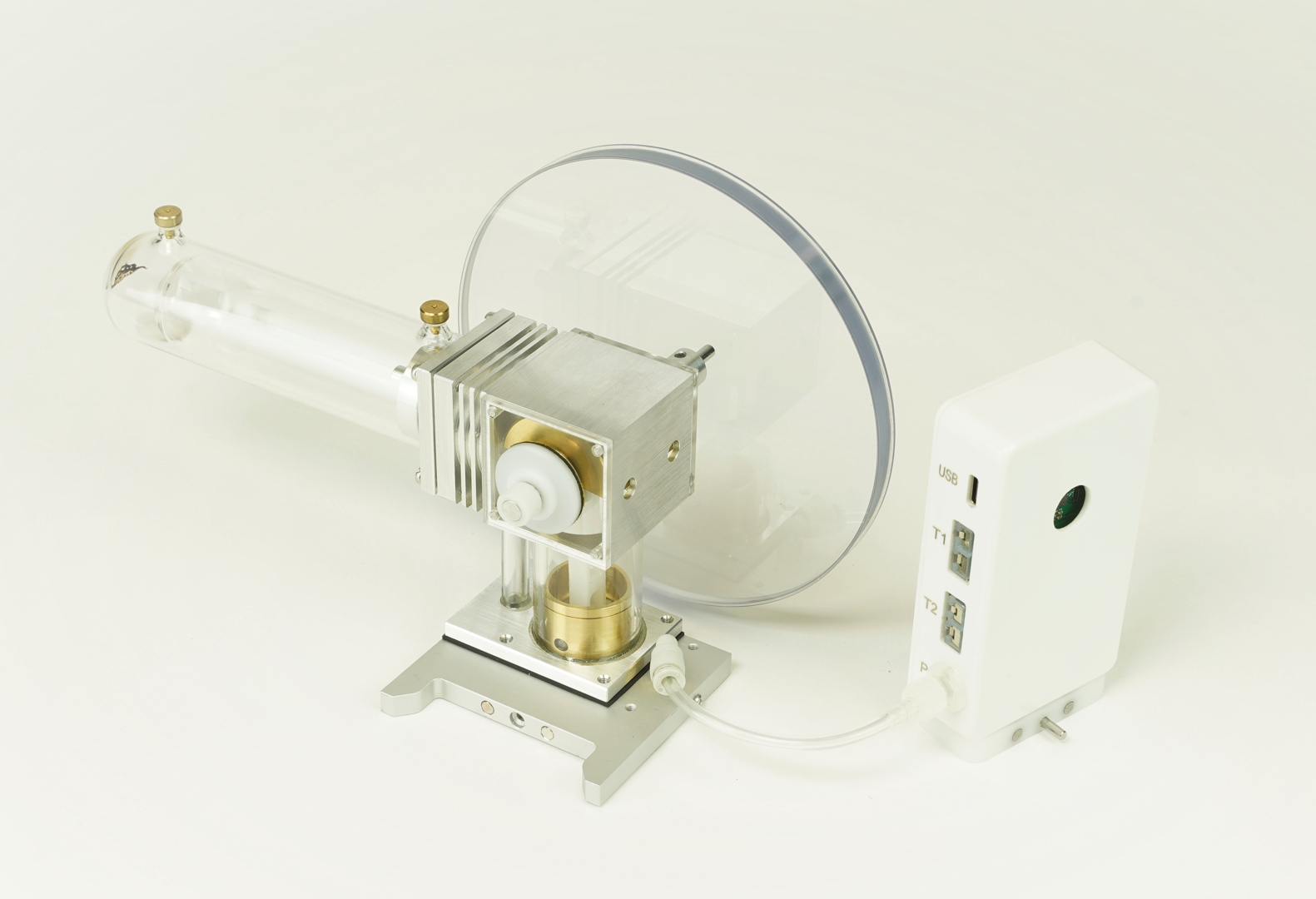

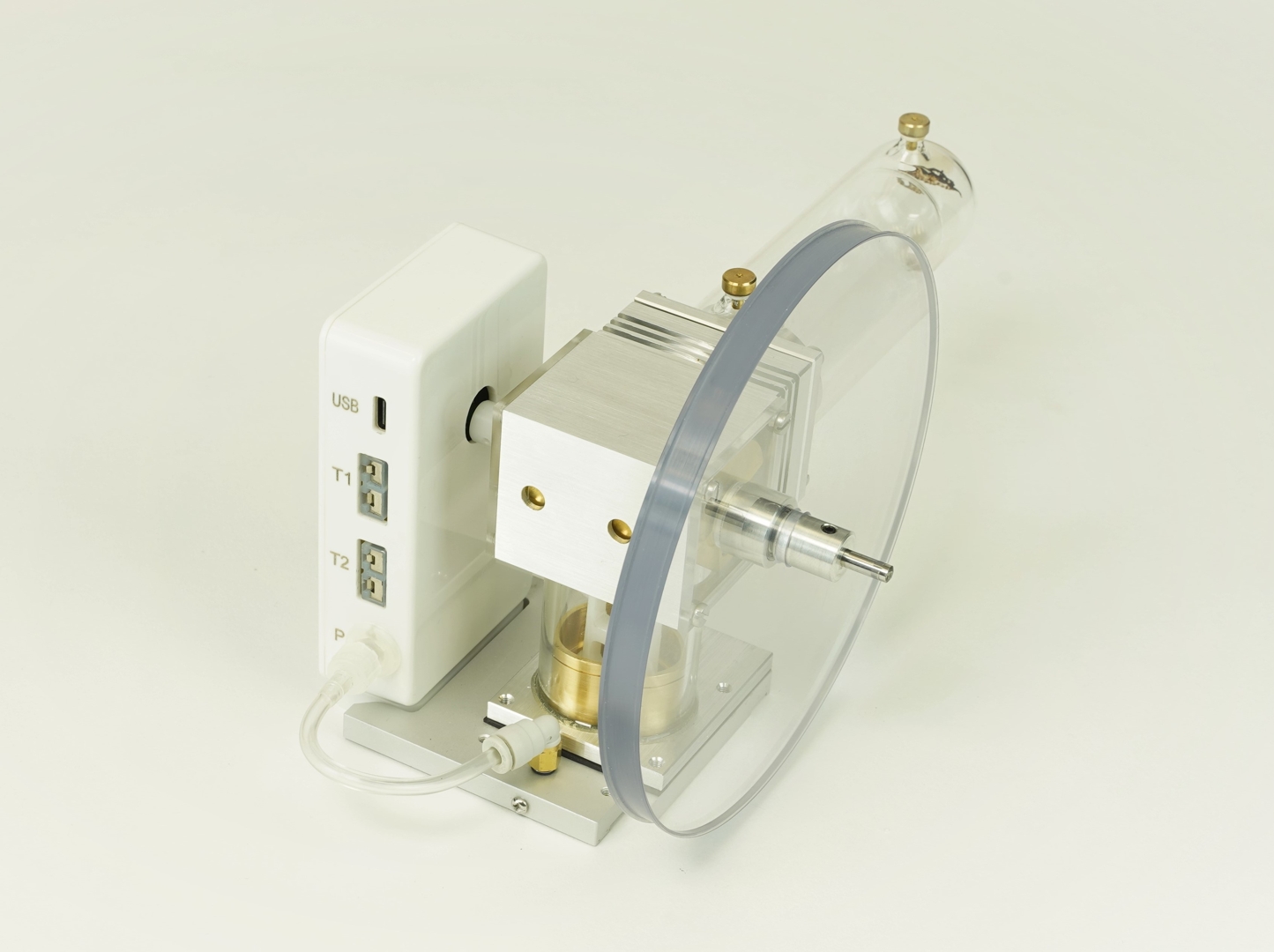

Datalogging module for quantitative digital measurements of the Stirling engine (04372-00). All relevant quantities are directly measured with a single device: 2x temperature (T1, T2), pressure (p), rotational angle and speed, as well as the calculated volume. Enhancing your classical qualitative Stirling engine experiment to allow quantitative measurements is easy. Directly view the thermodynamic cycle on your PC. USB-C 3.0 for Data transfer. T1: Type-K temperature sensor for the exact determination of the warm working temperature Measurement range: -10°C ... 400°C Resolution: 0.4°C T2: Type-K Temperature sensor for the exact determination of the cold working temperature Measurement range: -10°C ... 400°C Resolution: 0.4°C p: Pressure sensor to determine the compression inside of the motor. Measurement range: 0 ... 200 kPa Resolution: 0.1 kPa Contact-free rotation sensor to determine the rotational speed and angle of the motor. Measurement range: 0 ... 2000 rpm Resolution: 0.1° V: The volume is given by the construction ans is calculated.
