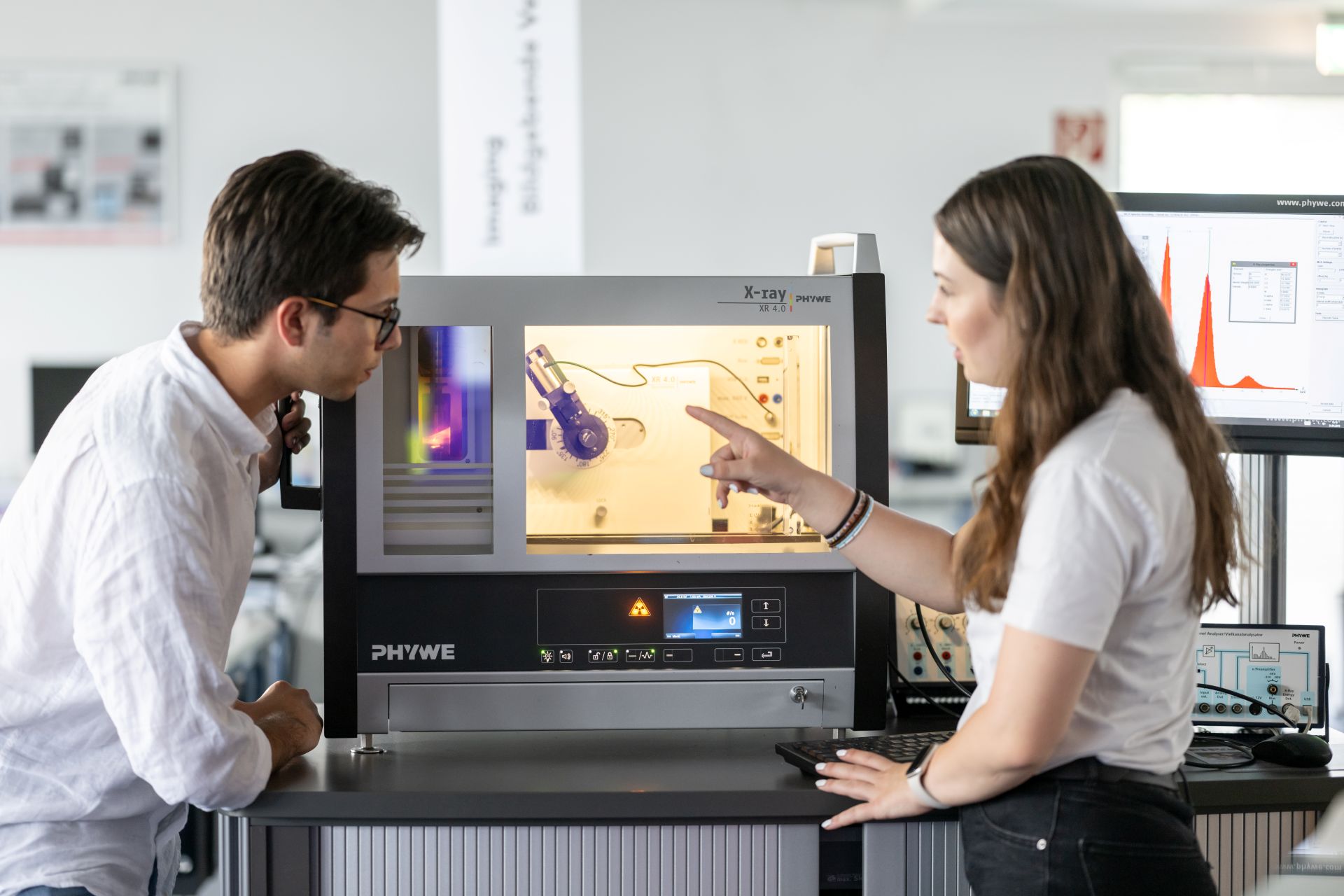

XR 4.0 expert unit, 35 kV
Article No: 09057-99
The XR 4.0 expert unit is a microprocessor-controlled X-ray system with quick-change X-ray tube technology, specifically designed for use in schools, universities, vocational training, and laboratories. As a fully shielded educational device in accordance with the requirements of the German Federal Office for Radiation Protection, it enables the safe performance of demonstration and laboratory experiments with X-rays. The rapid exchange of X-ray tubes with different anode materials (Fe, Cu, Mo, W) allows a wide range of experiments, which can be controlled and monitored directly on the device or via PC.BenefitsEducational and fully shielded device in accordance with BfS regulationsQuick-change X-ray tube technology for experiments with various anode materialsFour visible X-ray tubes during operation (Fe, Cu, Mo, W) can be used (optional accessories)High level of safety due to two independent safety circuits for door monitoringMicroprocessor-controlled system for reproducible settingsOperation directly on the device via TFT color display or PC control via USB 2.0Lockable accessory drawer for safe storage of important componentsTrue-color LED interior illumination for clear visibility of the experiment chamberTechnical SpecificationMicroprocessor-controlled base unitTwo independent safety circuits for monitoring the door positionTwo independent monitoring circuits for controlling door lockingFour visible X-ray tubes during operation (Fe, Cu, Mo, W) can be used (optional accessories)Connection for a Geiger-Müller tube to determine X-ray intensityVariable counter tube voltage: 0…600 VIntegrated loudspeaker for acoustic signalsTFT color display, 4.3 inches, 56,536 colors, 480 × 272 pixels, 16 bitTrue-color, line-shaped LED interior illuminationIntegrated, lockable accessory drawerHigh voltage: 5.0…35.0 kV in 0.1 kV stepsEmission current: 0.01…1.0 mA in 0.01 mA stepsHousing dimensions (D × H × W): 446 × 562 × 682 mmExperiment chamber dimensions (D × H × W): 354 × 345 × 440 mmPower supply: 110/240 V~, 50/60 HzPower consumption: 200 VAMass: 55 kgPC control via USB 2.0At least one separately available X-ray tube is required for operation (Cu 09057-51; Mo 09057-61; Fe 09057-71; W 09057-81)
