Products
Browse PHYWE Simple Circuits products. Click any product for full details and to request a quote.
Electricity Magnetism
06001-00

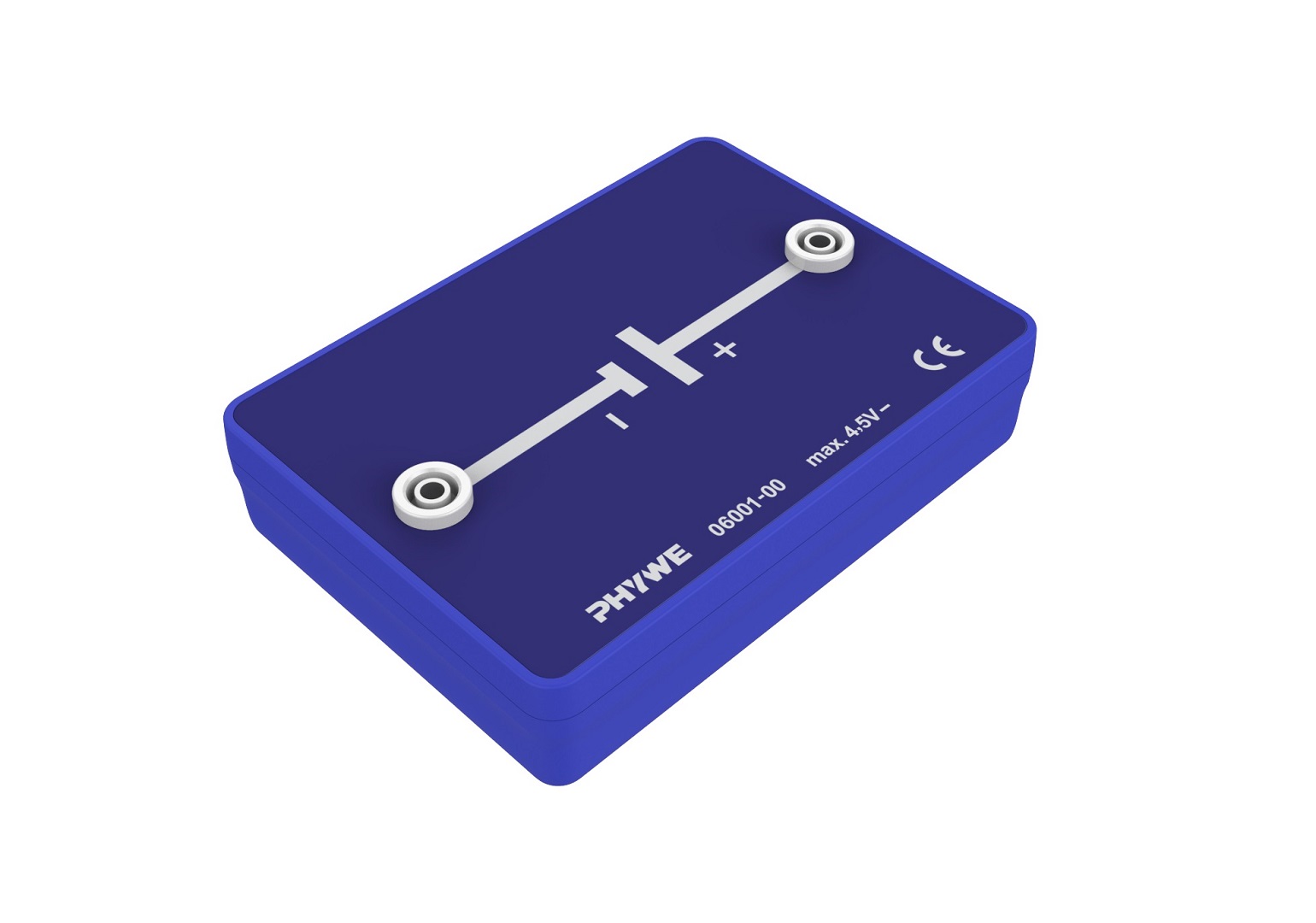

Battery box
Shock-resistant plastic housing to hold a 4.5 V flat battery. Safety connection sockets Dimensions (mm): 130 x 95 x 40
Electricity Magnetism
39115-01
Battery holder
For holding a battery 1,5 V, IEC R14 (Baby). Holder with 4 mm plugs. Plug distance: 38 mm.
Electricity Magnetism
13024-22
Bimetallic strip, 100 mm
Width and thickness of strip (mm)10 ×0.3, width and length slit (mm)4×7.5.
Electricity Magnetism
06988-00
Braun's tube with socket
Electron tube on a base with connection sockets for examining the structure and operation of a Braun's tube. The electron beam can be deflected i...
Electricity Magnetism
06031-11
Bridge rectifier 250 VAC/5 A
Bridge rectifier for propaedeutic pupils' and demo experiments in electronics. Shock-resistant plastic housing. Dimensions (mm): 120 x 90 x 30. W...
Electricity Magnetism
EAK-P-3285

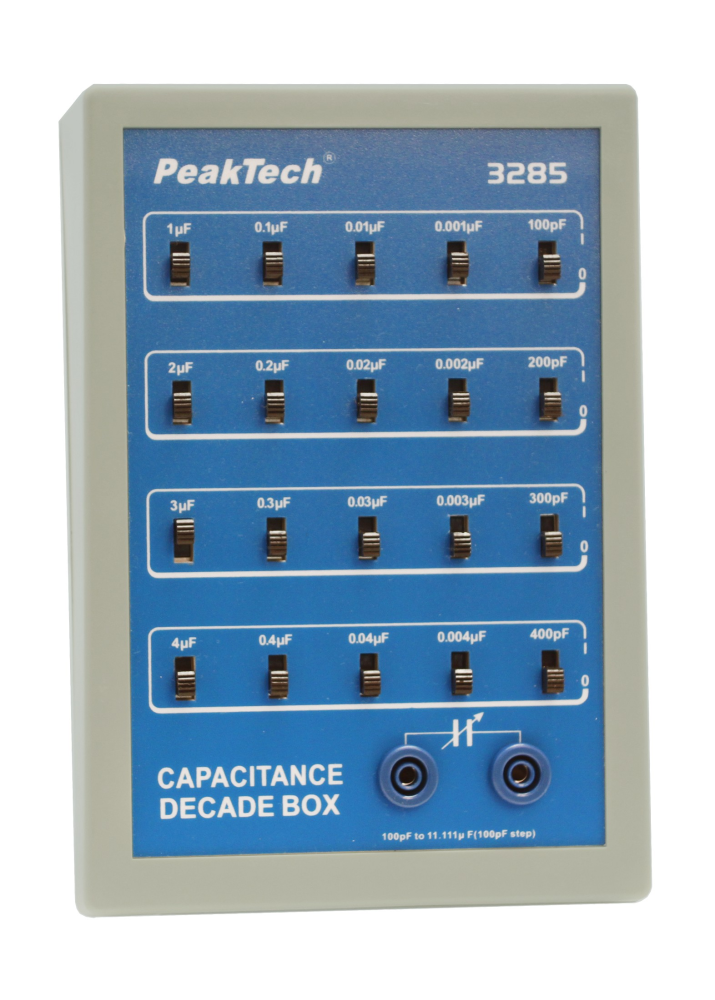

Capacitance Decade Box ~ 100pF bis 11.111µF
Capacitance Decade Box with slide switch This decade for capacitance is characterized by their long-term stability and is designed for the area of edu...
Electricity Magnetism
39105-50
Capacitor 0,1 µF, G1
Film capacitor in plastic housing. Capacitance: 0,1 µF Dimensions (mm): 37 x 18 x 32. With 4 mm plugs with a distance of 19 mm. Maximum permissible vo...
Electricity Magnetism
39105-51
Capacitor 1,0 µF, G1
Film capacitor in plastic housing. Capacitance: 1,0 µF Dimensions (mm): 37 x 18 x 32. With 4 mm plugs with a distance of 19 mm. Maximum permissible vo...
Electricity Magnetism
39113-01
Capacitor 1 microF, G2
Film capacitor in plastic housing. Dimensions (mm): 40 x 40 x 54. With 4 mm plugs with a distance of 19 mm. Tolerance: +/- 20%. Maximum permissible vo...
Electricity Magnetism
39105-52
Capacitor 10 µF, G1
Film capacitor in plastic housing. Capacitance: 10 µF Dimensions (mm): 37 x 18 x 32. With 4 mm plugs with a distance of 19 mm. Maximum permissible vol...
Electricity Magnetism
39105-54
Capacitor 100 µF, G1
Film capacitor in plastic housing. Capacitance: 100 µF Dimensions (mm): 37 x 18 x 32. With 4 mm plugs with a distance of 19 mm. Maximum permissible vo...
Electricity Magnetism
39105-18
Capacitor 100 nF, G1
Film capacitor in plastic housing. Dimensions (mm): 37 x 18 x 32. With 4 mm plugs with a distance of 19 mm. Tolerance: +/- 20%. Maximum permissible vo...
Electricity Magnetism
39105-53
Capacitor 1000 µF, G1
Film capacitor in plastic housing. Capacitance: 1000 µF Dimensions (mm): 37 x 18 x 32. With 4 mm plugs with a distance of 19 mm. Maximum permissible v...
Electricity Magnetism
39105-04

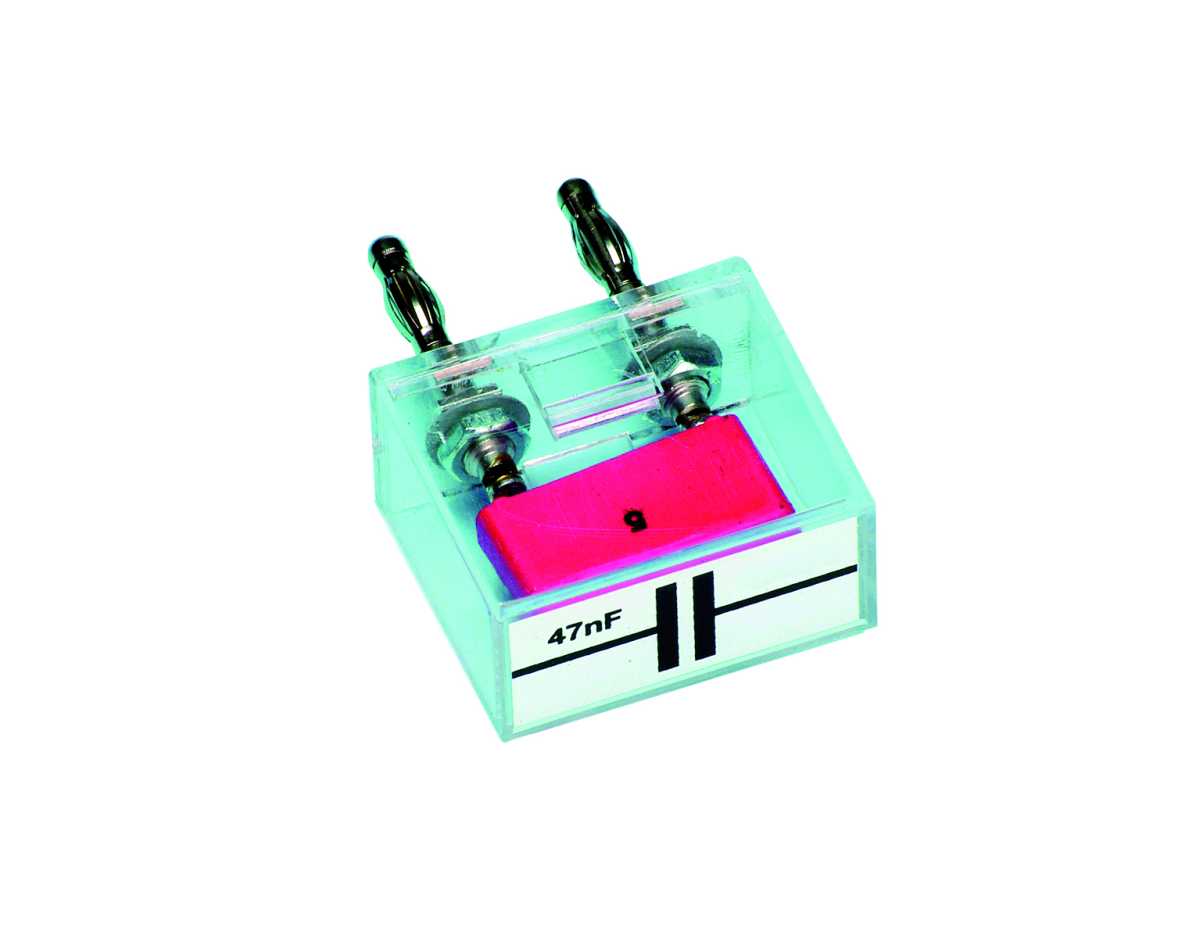

Capacitor 100pF, G1
Film capacitor in plastic housing. Dimensions (mm): 37 x 18 x 32. With 4 mm plugs with a distance of 19 mm. Tolerance: +/- 20%. Maximum permissible vo...
Electricity Magnetism
39105-14
Capacitor 10nF, G1
Film capacitor in plastic housing. Dimensions (mm): 37 x 18 x 32. With 4 mm plugs with a distance of 19 mm. Tolerance: +/- 20%. Maximum permissible vo...
Electricity Magnetism
39105-10
Capacitor 1nF, G1
Film capacitor in plastic housing. Dimensions (mm): 37 x 18 x 32. With 4 mm plugs with a distance of 19 mm. Tolerance: +/- 20%. Maximum permissible vo...
Electricity Magnetism
39113-02
Capacitor 2,2microF, G2
Film capacitor in plastic housing. Dimensions (mm): 40 x 40 x 54. With 4 mm plugs with a distance of 19 mm. Tolerance: +/- 20%. Maximum permissible vo...
Electricity Magnetism
06007-00
Capacitor, 2 x 30 µF
Electrical component for introductory experiments in impact-resistant plastic housing with 4 mm sockets. Two MP capacitors with a total of 60μF Capaci...
Electricity Magnetism
39105-19
Capacitor 220nF, G1
Film capacitor in plastic housing. Dimensions (mm): 37 x 18 x 32. With 4 mm plugs with a distance of 19 mm. Tolerance: +/- 20%. Maximum permissible vo...
Electricity Magnetism
39113-03
Capacitor 4,7microF, G2
Film capacitor in plastic housing. Dimensions (mm): 40 x 40 x 54. With 4 mm plugs with a distance of 19 mm. Tolerance: +/- 20%. Maximum permissible vo...
Electricity Magnetism
39105-20
Capacitor 470nF, G1
Film capacitor in plastic housing. Dimensions (mm): 37 x 18 x 32. With 4 mm plugs with a distance of 19 mm. Tolerance: +/- 20%. Maximum permissible vo...
Electricity Magnetism
39105-07
Capacitor 470pF, G1
Film capacitor in plastic housing. Dimensions (mm): 37 x 18 x 32. With 4 mm plugs with a distance of 19 mm. Tolerance: +/- 20%. Maximum permissible vo...
Electricity Magnetism
39105-17
Capacitor 47nF, G1
Film capacitor in plastic housing. Dimensions (mm): 37 x 18 x 32. With 4 mm plugs with a distance of 19 mm. Tolerance: +/- 20%. Maximum permissible vo...
Electricity Magnetism

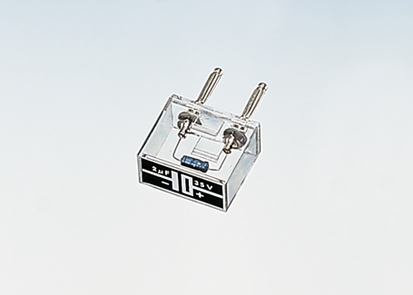

06049-09
Capacitor,electr.1mF/35V,G1
Tolerance ?10?+ 50 % Maximum permissible voltage: 60 V DC and 30 V AC
Electricity Magnetism
06211-00
Capacitor,electrolyt.,22000 µF
Electrolytic capacitor for propaedeutic experiments. In cylindrical metal case with 4 mm sockets. Height: 114 mm. Diameter: 52 mm.
Electricity Magnetism
39300-00
Case G1, kit
For the installation of resistors, capacitors, et al. Transparent plastic housing. Dimensions (mm): 37 x 18 x 32. With two 4 mm plugs. With two nuts a...
Electricity Magnetism

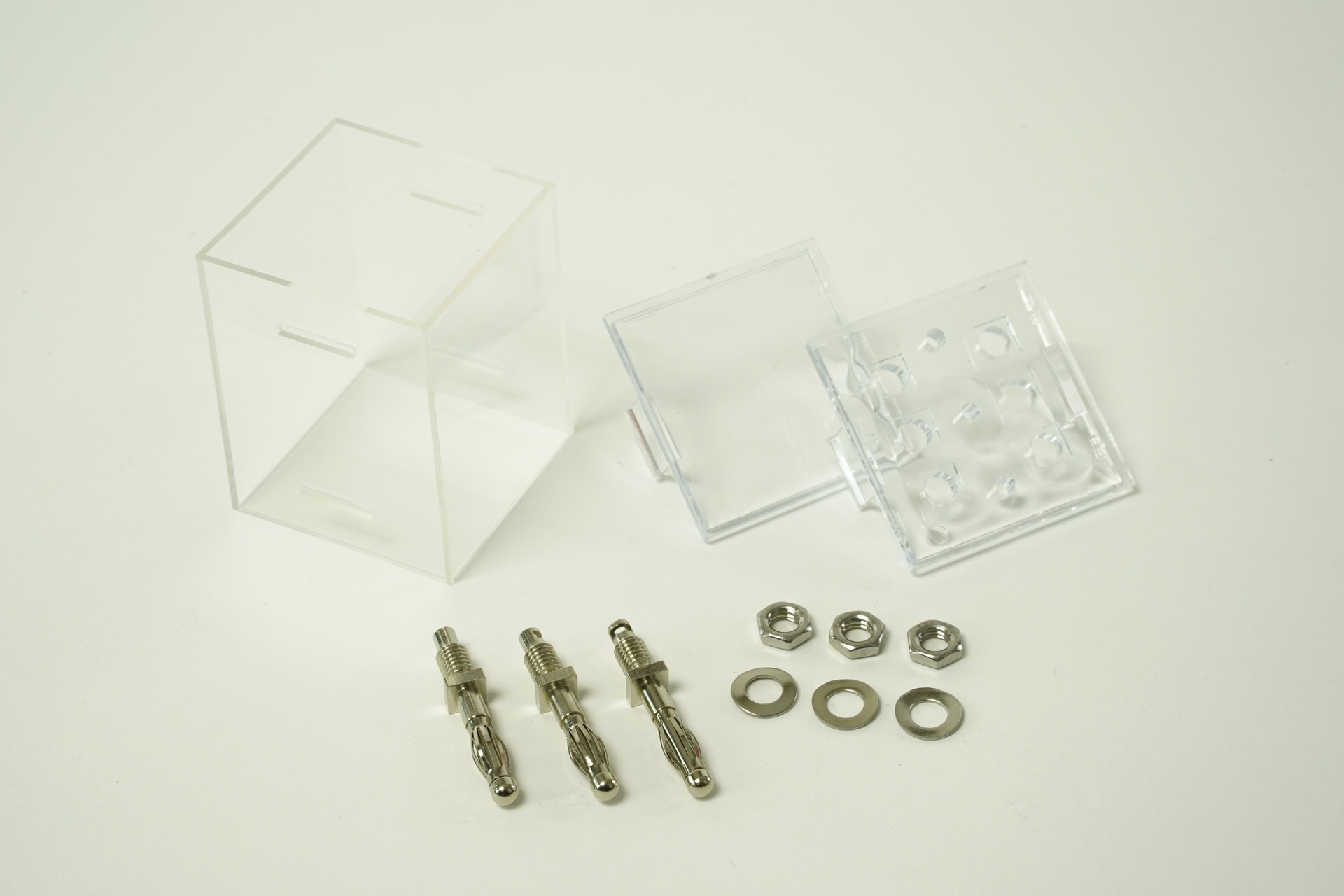

39304-01
Case G2, kit
(no description provided)
Electricity Magnetism
39169-00
Change over switch, G3
(no description provided)
Electricity Magnetism
P2411167
Characteristic curve and efficiency of a PEM fuel cell and a PEM electrolyser
In a PEM electrolyser, the electrolyte consists of a proton-conducting membrane and water (PEM = Proton-Exchange-Membrane). When an electric voltage i...
Electricity Magnetism

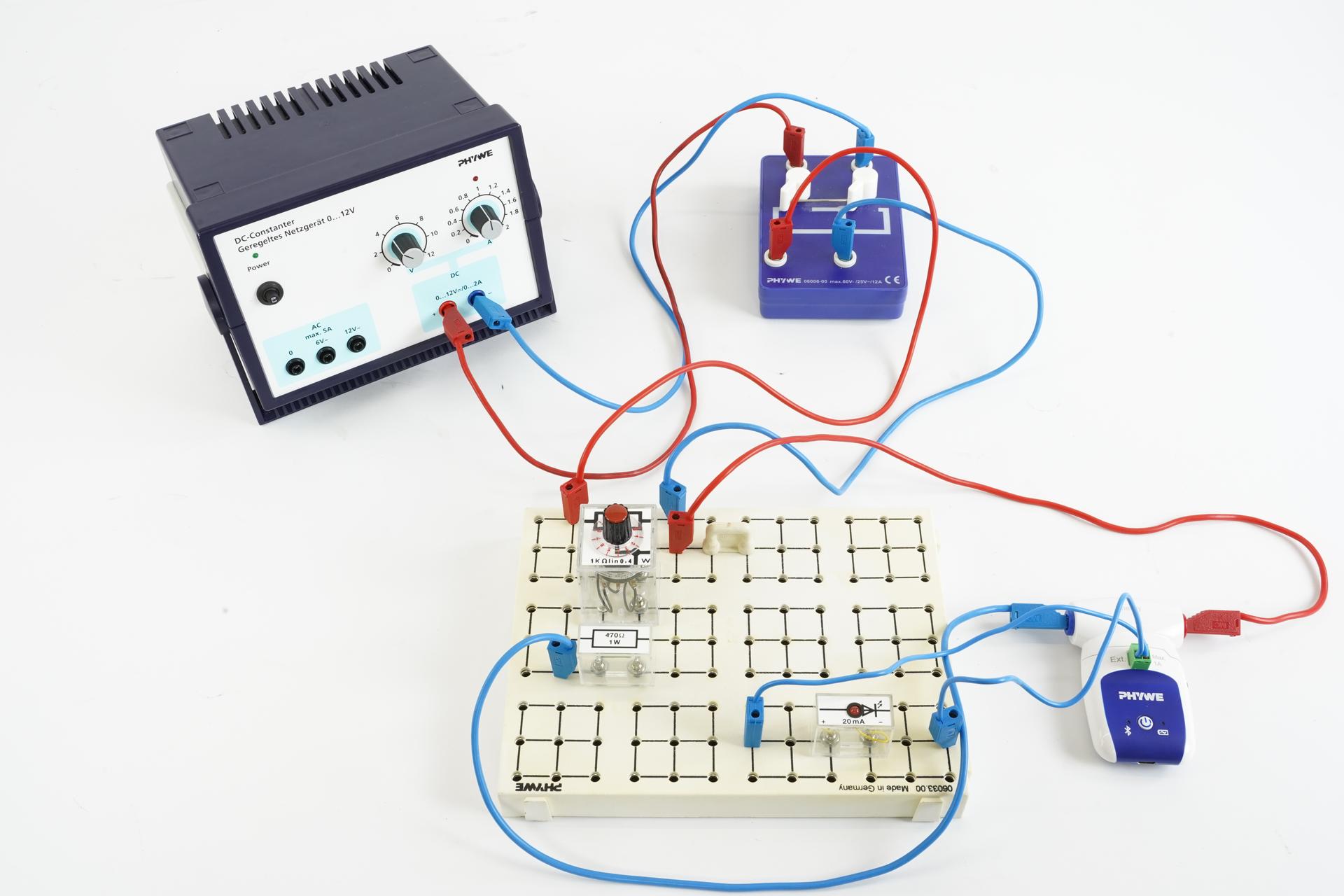

P2410967
Characteristic curves of semiconductors with Cobra SMARTsense
The current-voltage characteristic of a semiconducting diode is measured. The collector current in dependency on the emitter-collector voltage is meas...
Electricity Magnetism

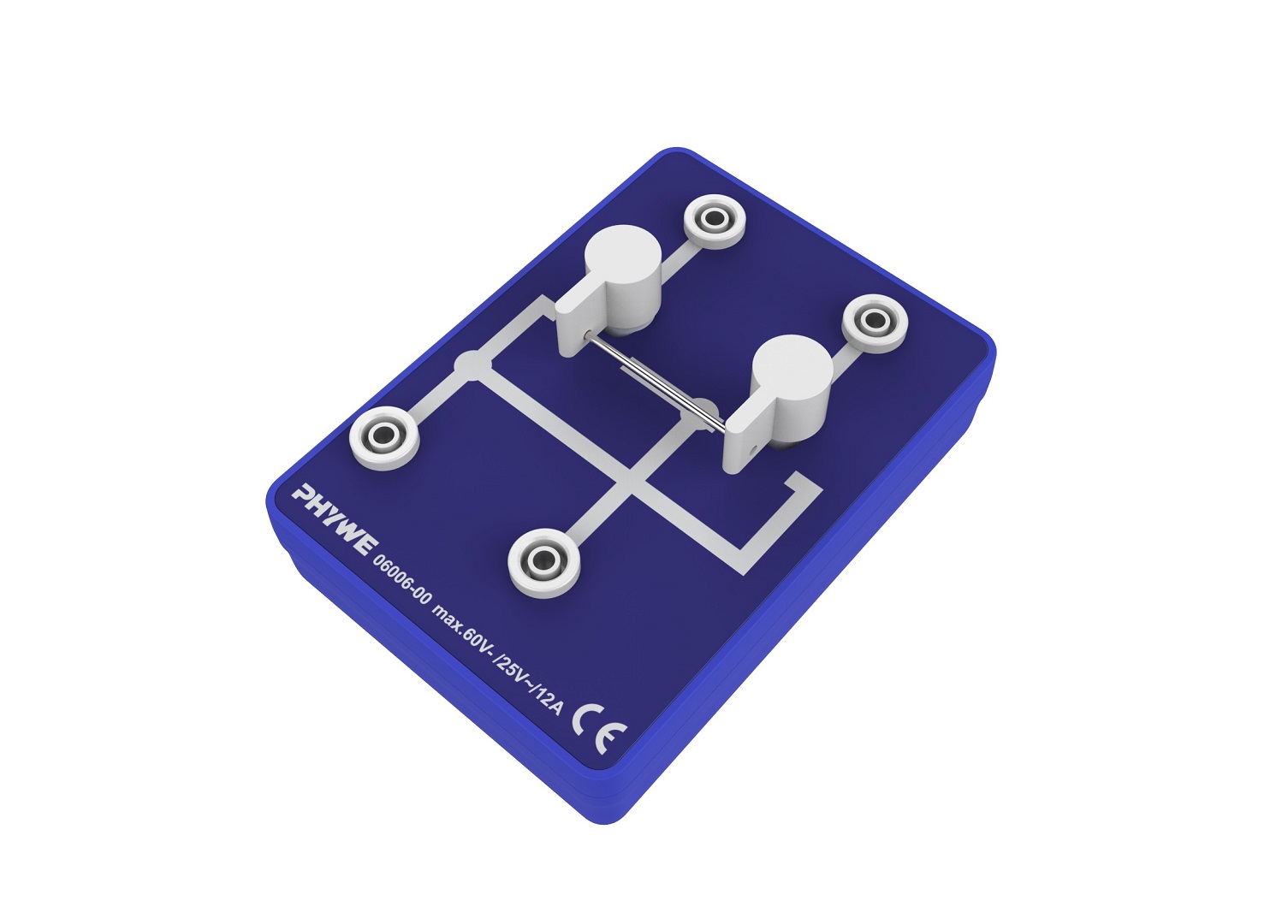

06006-00
Commutator switch
For propaedeutic student and demo experiments in electronics in shock-resistant plastic housing with 4 mm sockets. Safety connection sockets Dimension...
Electricity Magnetism
06107-15

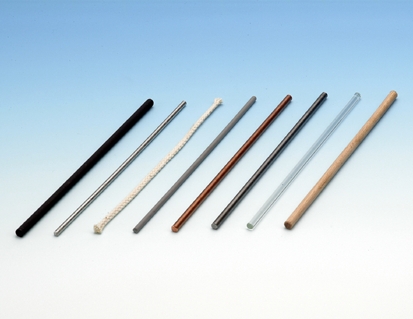

Conductors/non-conductors, l = 150 mm
(no description provided)
Electricity Magnetism
06107-01
Conductors/non-conductors,l-50 mm
(no description provided)
Electricity Magnetism
06000-00
Connection box
Connecting box for plug-in units with 19 mm sockets. Safety connection sockets Load capacity: max. 60V-/25V~/12A Dimensions (mm): 130 x 95 x 40.
Electricity Magnetism
06640-00
Discharge tube,Pohl type
To demonstrate luminescence phenomena in a gas discharge in air while pressure is continously reduced from 50 mbar to approx. 4 . 10-2 mbar. Glass tub...
Electricity Magnetism
06024-00
Distributor
For demonstrative attachment of electrical devices (resistor, condenser, inductor). Distributor on stem with four socket pairs for 4 mm plugs, wired i...
Electricity Magnetism
39105-26
Electr.capaci. 470 microF,G1
Polarised electrolytic capacitor in plastic housing. Dimensions (mm): 37 x 18 x 32. With 4 mm plugs with a distance of 19 mm. Tolerance: - 10%...+50%....
Electricity Magnetism
39105-24
Electr.capacitor 47microF, G1
Polarised electrolytic capacitor in plastic housing. Dimensions (mm): 37 x 18 x 32. With 4 mm plugs with a distance of 19 mm. Tolerance: - 10%...+50%....
Electricity Magnetism
39105-28
Electrol. capacitor 10microF, G1
Polarised electrolytic capacitor in plastic housing. Dimensions (mm): 37 x 18 x 32. With 4 mm plugs with a distance of 19 mm. Tolerance: - 10%...+50%....
Electricity Magnetism
39113-08
Electrolyte capacitor 2000 µF/, G2
Polarised electrolytic capacitor in plastic housing. Dimensions (mm): 40 x 40 x 54. With 4 mm plugs with a distance of 19 mm. Tolerance: -10%...+50%. ...
Electricity Magnetism
39105-45
Electrolytic capacitor 47 µF/63V, bipolar, G1
Not polarised electrolytic capacitor in plastic housing. Dimensions (mm): 37 x 18 x 32. With 4 mm plugs with a distance of 19 mm. Tolerance: - 10%...+...
Electricity Magnetism
39105-47
Electrolytic capacitor 470 µF/16V bipolar, G1
Not polarised electrolytic capacitor in plastic housing. Dimensions (mm): 37 x 18 x 32. With 4 mm plugs with a distance of 19 mm. Tolerance: - 10%...+...
Electricity Magnetism
11803-00
Hall effect, Cu, carrier board
To demonstrate the normal Hall effect in a metal. Integrated heating system with thermocouple to demonstrate temperature independence of the Hall volt...
Electricity Magnetism
11802-01
Hall effect, n-Ge, carrier board
In connection with Halleffect-module for determination of temperature dependent Hall voltage and conductivity of nondoped semiconductors. Heatable car...
Electricity Magnetism
11805-01
Hall effect, p-Ge, carrier board
In connection with Halleffect-module for determination of temperature dependent Hall voltage and conductivity of doped semiconductors. Heatable carrie...
Electricity Magnetism
11804-01
Hall effect, Zn, carrier board
To demonstrate the abnormal Hall effect of zinc. Without heating and thermo couple. The lateral 4 mm outwards leading sockets allow for easy holding b...
Electricity Magnetism
07160-00
High-value resistor, 10 MOhm
High-value resistor with plug and socket in insulating sleeve.
Electricity Magnetism
07159-00
High-value resistor, 50 megOhms
High-value resistor with plug and socket in insulating sleeve.
Electricity Magnetism
07163-00
Immersion probes for determining ct
10 components for determining temperature dependence (up to max. 100°C) of characteristic parameters such as resistance, conducting-state voltage and ...
Electricity Magnetism
07807-00
Insulating pin
For holding round rodes, sheet metal and wires up to a diameter of 6 mm. With adjusting screw. Material: brass. Total length: 130 mm. Rod diameter: 6 ...
Electricity Magnetism
06021-00
Insulating stem
To be used in electrostatic experiments to provide insulating support for plug-in apparatus, e. g. condcuctor balls. Material: insulating plastic. Ste...
Electricity Magnetism
07924-00

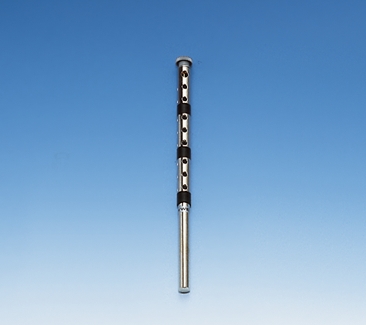

Insulating support, l = 235 mm
Insulating support for plug-in components with 19 mm spaced plugs. 3 mutually insulated sections with 3 cross-holes. Total length: 235 mm. Rod diamete...
Electricity Magnetism
06641-00
Intermediate piece for discharge tube
Tube with two ground cones to receive discharge tube (06640-00) or to attach to oil air pumps. Three-way stopcock with connecting sleeve to shut off p...
Electricity Magnetism
06002-00
Lamp holder E10 on base plate
Lamp holder in a plastic housing with two 4 mm sockets for integrating an E10 lamp into electrical circuits (e.g. for school experiments on circuits, ...
Electricity Magnetism

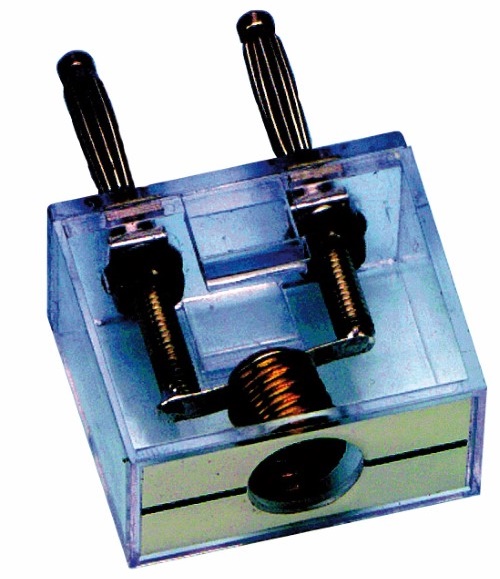

17049-00
Lampholder E10, case G1
(no description provided)
Electricity Magnetism

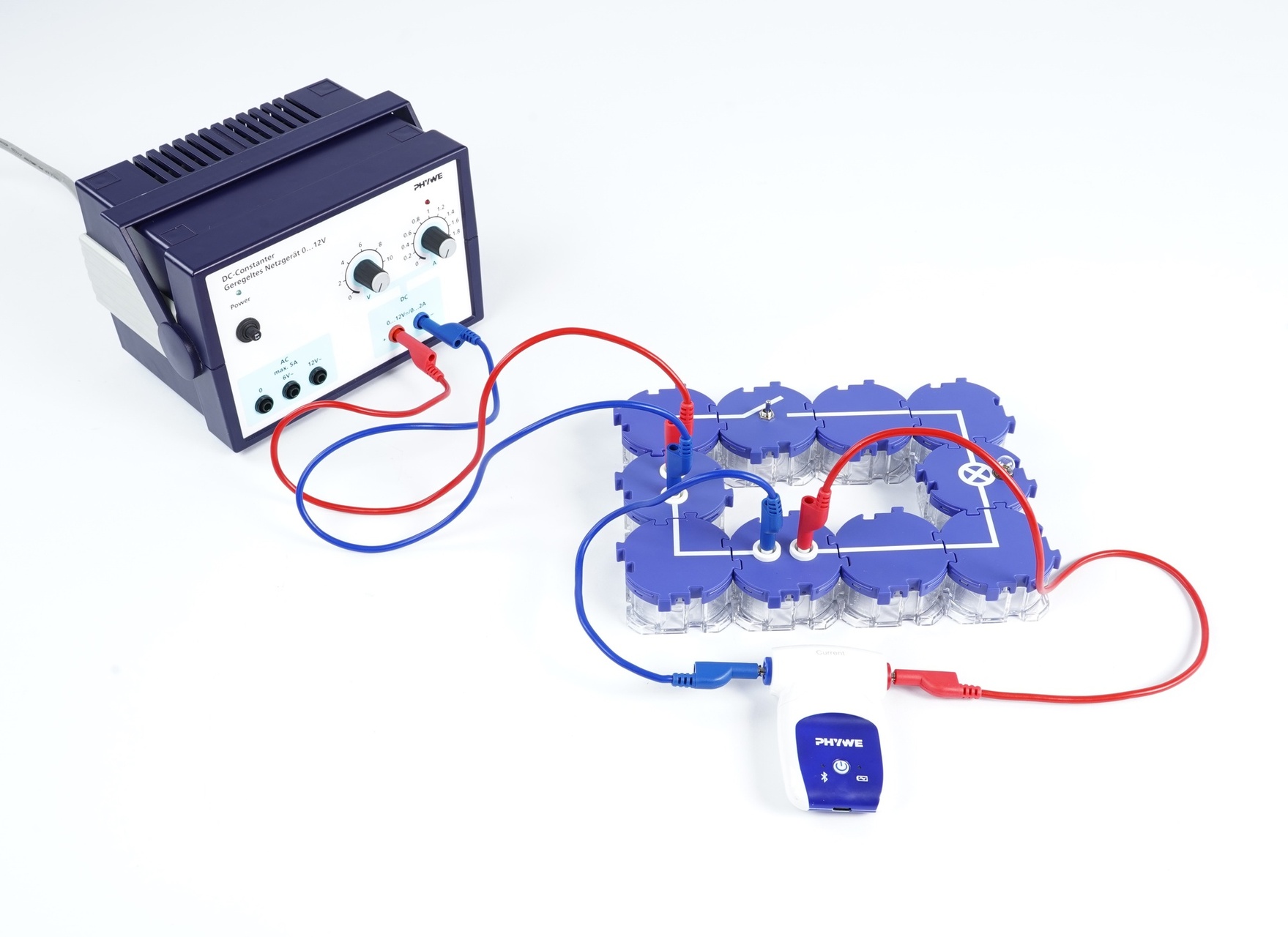

P1371869
Measurement of current with Cobra SMARTsense
A simple circuit is examined to introduce the measurement of the strength of an electric current. It is assumed that the students understand the term ...
Electricity Magnetism

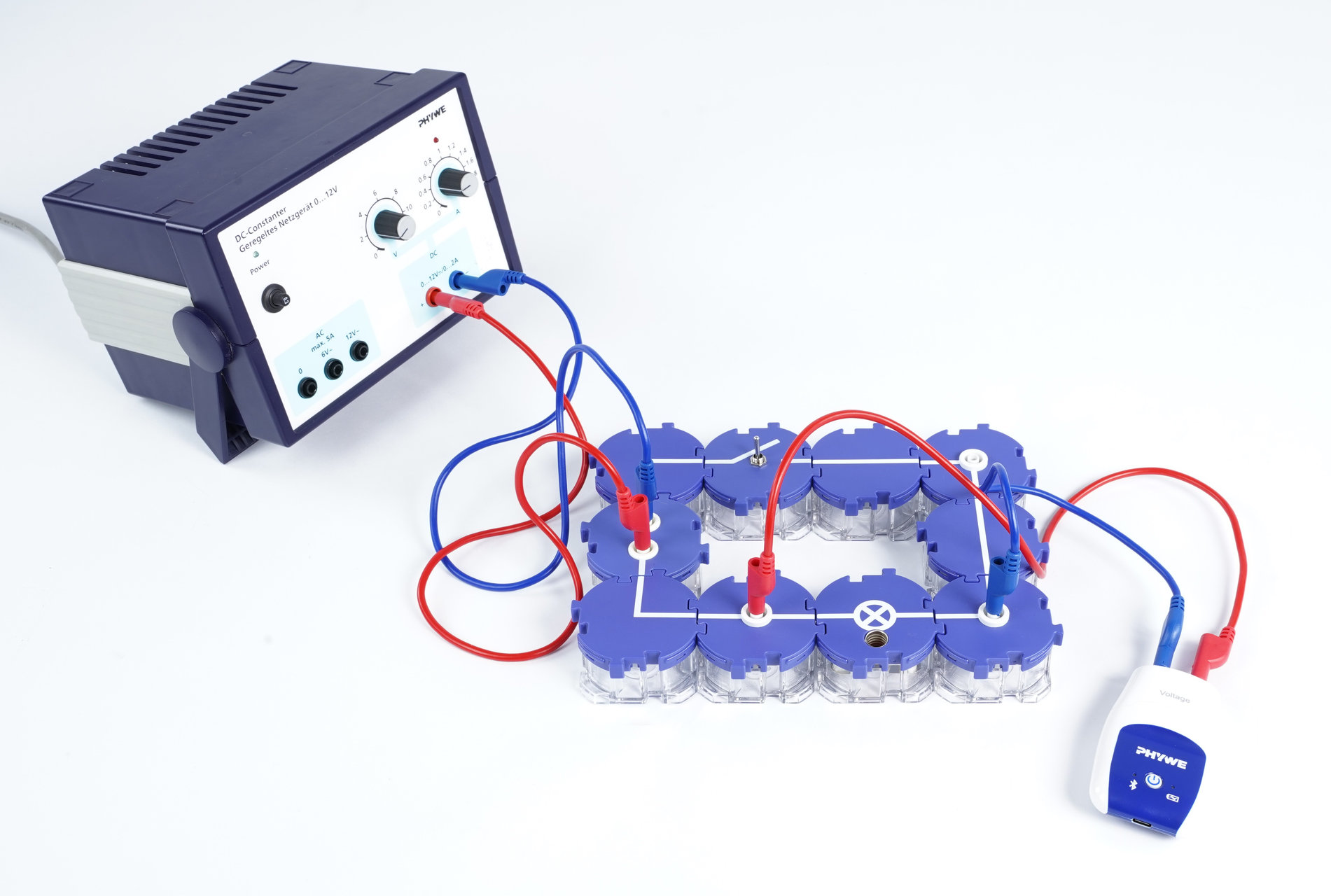

P1371769
Measurement of voltage with Cobra SMARTsense
After the students have become acquainted with the term voltage and its unit, they should learn how a voltmeter must be connected and what must be tak...
Electricity Magnetism
09491-00
Metal angle for building block with magnetic pad
For vertical mounting of magnetic components in combination with the building block. Dimensions H x W x D (mm): 60 x 60 x 60
Electricity Magnetism
39110-03
NTC-resistor 1 kOhm/ 1W, G1
Semiconductor resistor, led to the outside, with negative temperature coefficient, in plastic housing. Dimensions (mm): 37 x 18 x 32. With 4 mm plugs ...
Electricity Magnetism
39139-00
on-off switch, G1
(no description provided)
Electricity Magnetism
06004-00
On/off switch
On/off switch for propaedeutic student and demo experiments in electronics in shock-resistant plastic housing with 4 mm sockets. Safety connection soc...
Electricity Magnetism
P1372169
Parallel and series connection of voltage sources
It frequently occurs in practice that single-cell batteries must be connected together to act as the power supply for portable or mobile electrical an...
Electricity Magnetism
06033-00
Plug-in board, for 4 mm plugs
The plug-in board serves as a base for assembling electrical circuits. Using the 4 mm sockets, components and measuring instruments can be connected q...
Electricity Magnetism
39103-04
Potentiometer 1 kOhm, 0.4W, G2
(no description provided)
Electricity Magnetism
39138-11
Potentiometer 10kOhm, case G1
(no description provided)
Electricity Magnetism
39103-21
Potentiometer 250 Ohm, 4W, G3
Potentiometer in plastic housing. Dimensions (mm): 40 x 40 x 54. With 4 mm plugs with a distance of 19 mm. With adjusting knob with 270° scale. Tolera...
Electricity Magnetism
06988-93
Power supply for Braun's tube
Externally sweepable function generator with power amplifier for use in student and internship experiments to carry out diverse experiments in vibrati...
Electricity Magnetism
39110-04
PTC-resistor 50 Ohm/ 0,5W, G1
Semiconductor resistor, led to the outside, with positive temperature coefficient, in plastic housing. Dimensions (mm): 37 x 18 x 32. With 4 mm plugs ...
Electricity Magnetism
06003-00
Push-button switch
For propaedeutic student and demo experiments in electronics in shock-resistant plastic housing with 4 mm sockets. Safety connection sockets Dimension...
Electricity Magnetism
39148-00
Relay pluggable, G3
(no description provided)
Electricity Magnetism
EAK-P-3265

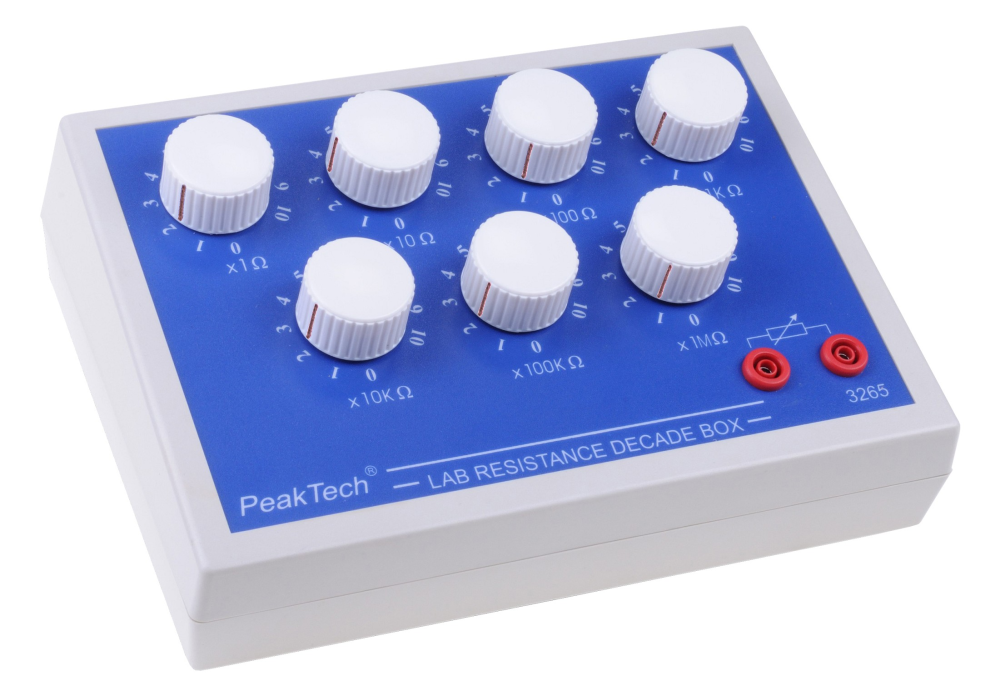

Resistance Decade Box ~ 1Ω bis 10MΩ
LAB Decade Box with rotary switch For the completion of our sales program in LAB decade with shielding plastic housing for education, maintenance, tro...
Electricity Magnetism
39104-21
Resistor 1,5 kOhm, 1W, G1
Carbon resistor in plastic housing. Dimensions (mm): 37 x 18 x 22. With 4 mm plugs with a distance of 19 mm. Tolerance: +/- 5%. Capacity: 1 W, tempora...
Electricity Magnetism
39104-19
Resistor 1 kOhm, 1W, G1
Carbon resistor in plastic housing. Dimensions (mm): 37 x 18 x 22. With 4 mm plugs with a distance of 19 mm. Tolerance: +/- 5%. Capacity: 1 W, tempora...
Electricity Magnetism
39104-52
Resistor 1 MOhm, 1W, G1
Carbon resistor in plastic housing. Dimensions (mm): 37 x 18 x 22. With 4 mm plugs with a distance of 19 mm. Tolerance: +/- 5%. Capacity: 1 W, tempora...
Electricity Magnetism
06055-10
Resistor 1 Ohm 2%, 2W, G1
(no description provided)
Electricity Magnetism
39104-30
Resistor 10 kOhm, 1W, G1
Carbon resistor in plastic housing. Dimensions (mm): 37 x 18 x 22. With 4 mm plugs with a distance of 19 mm. Tolerance: +/- 5%. Capacity: 1 W, tempora...
Electricity Magnetism
39104-01
Resistor 10 Ohm, 1W, G1
Carbon resistor in plastic housing. Dimensions (mm): 37 x 18 x 22. With 4 mm plugs with a distance of 19 mm. Tolerance: +/- 5%. Capacity: 1 W, tempora...
Electricity Magnetism
06056-10
Resistor 10 Ohm 2%, 2W, G1
(no description provided)
Electricity Magnetism
39104-41
Resistor 100 kOhm, 1W, G1
Carbon resistor in plastic housing. Dimensions (mm): 37 x 18 x 22. With 4 mm plugs with a distance of 19 mm. Tolerance: +/- 5%. Capacity: 1 W, tempora...
Electricity Magnetism
39104-63
Resistor 100 Ohm, 1W, G1
Carbon resistor in plastic housing. Dimensions (mm): 37 x 18 x 22. With 4 mm plugs with a distance of 19 mm. Tolerance: +/- 5%. Capacity: 1 W, tempora...
Electricity Magnetism
06057-10
Resistor 100 Ohm 2%, 1W, G1
(no description provided)
Electricity Magnetism
39104-10
Resistor 150 Ohm, 1W, G1
Carbon resistor in plastic housing. Dimensions (mm): 37 x 18 x 22. With 4 mm plugs with a distance of 19 mm. Tolerance: +/- 5%. Capacity: 1 W, tempora...
Electricity Magnetism
39104-23
Resistor 2.2 kOhm, 1W, G1
Carbon resistor in plastic housing. Dimensions (mm): 37 x 18 x 22. With 4 mm plugs with a distance of 19 mm. Tolerance: +/- 5%. Capacity: 1 W, tempora...
Electricity Magnetism
06055-20
Resistor 2 Ohm 5%, 2W, G1
(no description provided)
Electricity Magnetism
39104-34
Resistor 22 kOHM, 1W, G1
Carbon resistor in plastic housing. Dimensions (mm): 37 x 18 x 22. With 4 mm plugs with a distance of 19 mm. Tolerance: +/- 5%. Capacity: 1 W, tempora...
Electricity Magnetism
39104-64
Resistor 220 Ohm, 1W, G1
Carbon resistor in plastic housing. Dimensions (mm): 37 x 18 x 22. With 4 mm plugs with a distance of 19 mm. Tolerance: +/- 5%. Capacity: 1 W, tempora...
Electricity Magnetism
39104-25
Resistor 3.3 kOhm, 1W, G1
Carbon resistor in plastic housing. Dimensions (mm): 37 x 18 x 22. With 4 mm plugs with a distance of 19 mm. Tolerance: +/- 5%. Capacity: 1 W, tempora...
Electricity Magnetism
39104-13
Resistor 330 Ohm, 1W, G1
Carbon resistor in plastic housing. Dimensions (mm): 37 x 18 x 22. With 4 mm plugs with a distance of 19 mm. Tolerance: +/- 5%. Capacity: 1 W, tempora...
Electricity Magnetism
39104-27
Resistor 4.7 kOhm, 1W, G1
Carbon resistor in plastic housing. Dimensions (mm): 37 x 18 x 22. With 4 mm plugs with a distance of 19 mm. Tolerance: +/- 5%. Capacity: 1 W, tempora...
Electricity Magnetism
39104-38
Resistor 47 kOhm, 1W, G1
Carbon resistor in plastic housing. Dimensions (mm): 37 x 18 x 22. With 4 mm plugs with a distance of 19 mm. Tolerance: +/- 5%. Capacity: 1 W, tempora...
Electricity Magnetism
39104-62
Resistor 47 Ohm, 1W, G1
Resistor in plastic housing. Dimensions (mm): 37 x 18 x 22. With 4 mm plugs with a distance of 19 mm. Tolerance: +/- 5%. Capacity: 1 W, temporary 2 W....
Electricity Magnetism
39104-15
Resistor 470 Ohm, 1W, G1
Carbon resistor in plastic housing. Dimensions (mm): 37 x 18 x 22. With 4 mm plugs with a distance of 19 mm. Tolerance: +/- 5%. Capacity: 1 W, tempora...
Electricity Magnetism
06055-50
Resistor 5 Ohm 5%, 2W, G1
Electrical component for introductory experiments. In plastic housing (mm) 37 x 18 x 22. With 4 mm plugs at 19 mm spacing. Resistance: 5 Ohm. Load cap...
Electricity Magnetism
39104-17
Resistor 680 Ohm, 1W, G1
Carbon resistor in plastic housing. Dimensions (mm): 37 x 18 x 22. With 4 mm plugs with a distance of 19 mm. Tolerance: +/- 5%. Capacity: 1 W, tempora...
Electricity Magnetism
06118-03
Rheostat 1 kOhm, 160 W
Suitable as protective resistors or voltage dividers. Resistance 1 kOhm, ± 10% 160 W Four 4 mm safety sockets, of which one to earth the casing. High ...
Electricity Magnetism
06110-03
Rheostat 10 Ohm, 160 W
Suitable as protective resistors or voltage dividers. Resistance 10 Ohm, ± 10% 160 W Four 4 mm safety sockets, of which one to earth the casing. High ...
Electricity Magnetism
06114-03
Rheostat 100 Ohm, 160 W
Suitable as protective resistors or voltage dividers. Resistance 100 Ohm, ± 10% 160 W Four 4 mm safety sockets, of which one to earth the casing. High...
Electricity Magnetism
06112-03
Rheostat 33 Ohm, 160 W
Suitable as protective resistors or voltage dividers. Resistance 33 Ohm, ± 10% Four 4 mm safety sockets, of which one to earth the casing. 160 W High ...
Electricity Magnetism
06116-03
Rheostat, 330 Ohm , 160 W
Suitable as protective resistors or voltage dividers. Resistance 330 Ohm, ± 10% Four 4 mm safety sockets, of which one to earth the casing. High load ...
Electricity Magnetism
EAK-P-8202
Set of laboratory cables with 4mm banana plugs
These high-quality connection cables with 4 mm banana plugs fit all standard 4 mm sockets and enable a secure and reliable connection. An additional c...
Electricity Magnetism
07182-00
Slide wire measurement bridge
To build a Wheatstone bridge. Slide wire measuring bridge. On board with scale division in mm, cm, dm. Slider and board with 4 mm sockets. Scale lengt...
Electricity Magnetism
04374-00
Thermogenerator, Peltier element
For direct conversion of heat energy into electrical energy and for use as a heat pump as well as for demonstrating Seebeck and Peltier effects. 2 nic...
Electricity Magnetism
06005-00
Two-way switch, single pole
For propaedeutic experiments in electronics. To be used as a commutator switch or as an on/off switch. In shock-resistant plastic housing. Safety conn...
Electricity Magnetism
39115-02
Universal holder, G1 housing
Versatile holder for bimetal strips, for armature spring and for resistor wires. Adjustable contact for bell or relay models. Nickel coated metal bar ...
Electricity Magnetism
39120-00
Wire building block, housing G1
Conductive connection between the two 4 mm plugs of the housing. Maximum permissible voltage: 60 V DC and 30 V AC
Ready to Equip Your Physics Lab?
Get a custom quote for your institution, curriculum alignment support, and grant assistance from AmSci's education specialists.
Contact AmSci Today →
