Electricity Magnetism
Electric Field Meter
Article No:
11500-30
The electric field meter is a compact and highly sensitive instrument for measuring the field strength of electrostatic fields as well as high-impedance voltages. Measurement is based on the field mill / induction principle. Operation is carried out via a USB interface in combination with a computer and the corresponding measurement software.
Key Features
- Measurement of DC electric fields based on the field mill / induction principle
- Multiple measuring ranges: 5 kV/m, 25 kV/m, 50 kV/m, and 250 kV/m
- USB interface for data transfer and power supply
- Operation with a PC using the supplied KL_ReadOUT software
- Metal housing with grounding connection via 4 mm banana socket

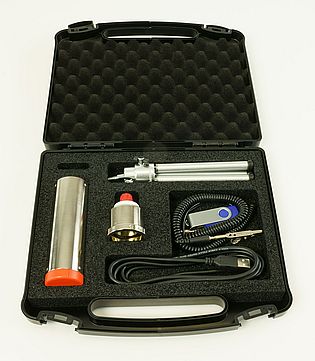

- Supplied including accessories (USB cable, grounding cable, software, tabletop stand)
Specifications
| Operating voltage | 5 V via USB interface |
| Calibration in a plate capacitor | 200 × 200 mm, distance 25 mm |
| Dimensions | length 120 mm, diameter 36 mm |
| Weight | approx. 180 g |
| Interface | USB 2.0 |
| Field measurement Measuring ranges | 5 / 25 / 50 / 250 kV/m Accuracy: ±5 % |
| Voltage measurement Measuring ranges | 50 / 250 / 500 / 2500 V DC Accuracy: ±5 % Input resistance: > 10 PΩ Input capacitance: approx. 5 pF |
Available through American Scientific
All units adapted for 110V/60Hz. Contact us for volume pricing and grant assistance.
