Dynamics & Motion equipment from the PHYWE Mechanics range. 114 products, 110V/60Hz adapted for U.S. labs.

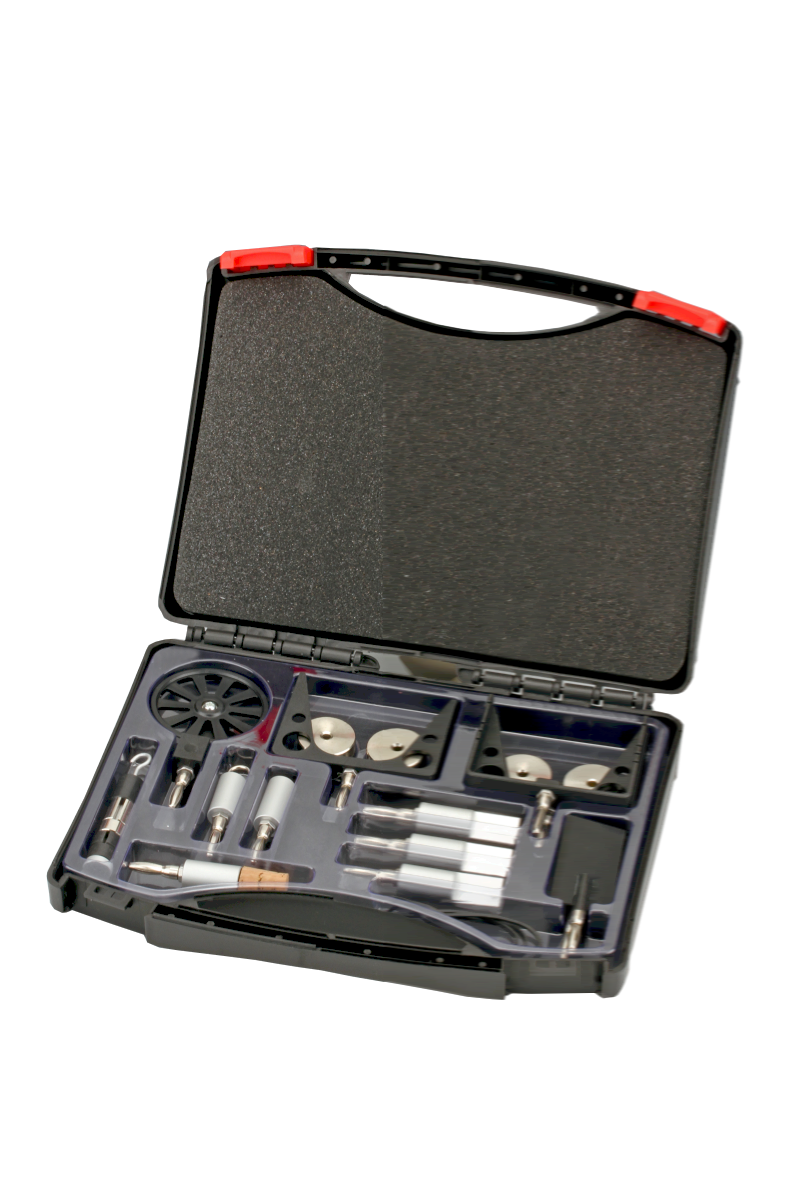

Accessory kit for air track, supplied in the U.S. by American Scientific. Contact us for specifications.
Adaptable foot for starter unit of the air track. With this adapter the starter unit can be mounted on the motion track as well. Including 2 screws and 2 hollow shafts. Dimensions (mm): 10 × 30 × 30.

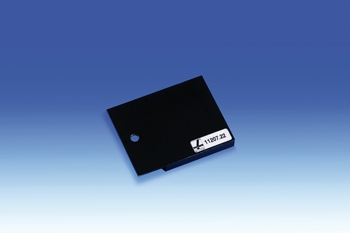

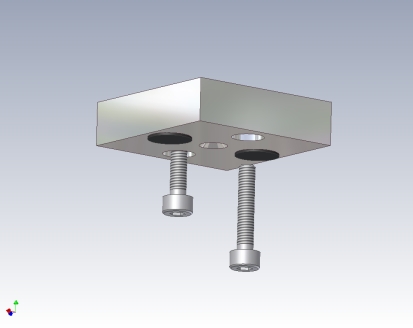

To affix the light barrier compact (11207.20). The scope of delivery includes, in addition to the adapter plate, two spacer bolts and one screw.

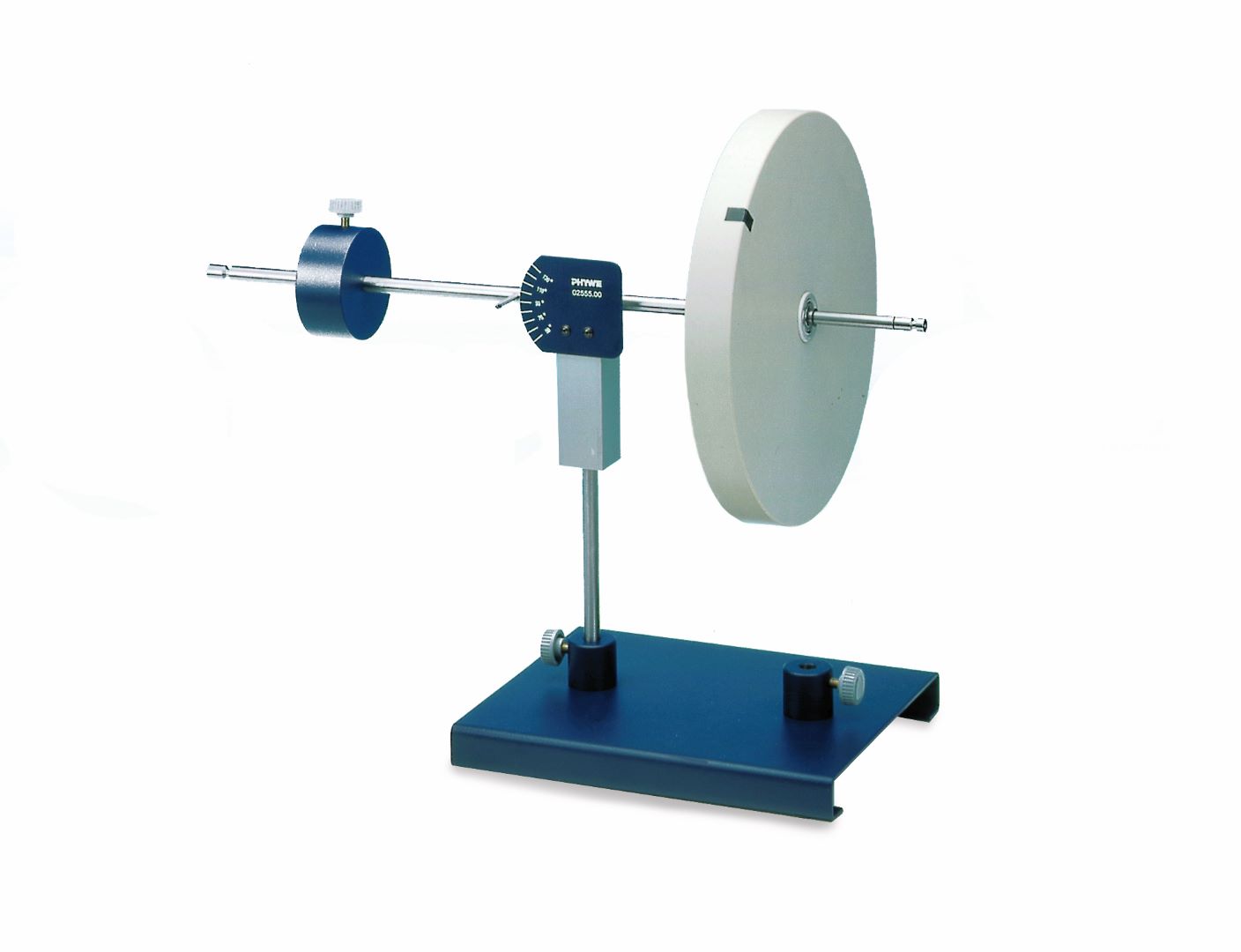

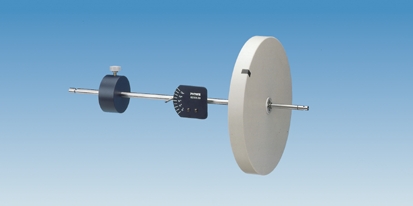

Accessory for the space gyro. Additional gyro-disk with counter weight on a ball bearing. Disk diameter: 245 mm. Disk thickness: 28 mm. Disk mass: approx. 1.317 kg. Counter mass: approx. 0.925 kg.

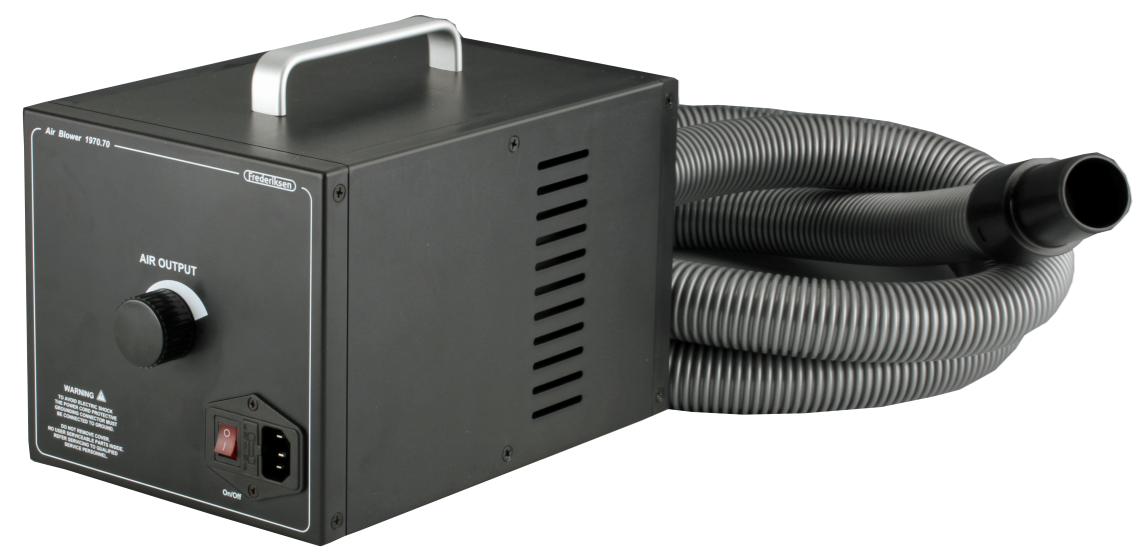

Low noise, continuously adjustable air blower with connection piece for pressure hose, e.g. for air track (11202-88).

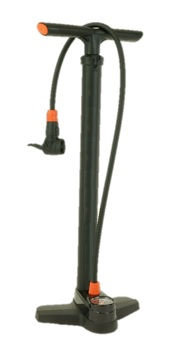

Air pump for rocket modell (02679-00)

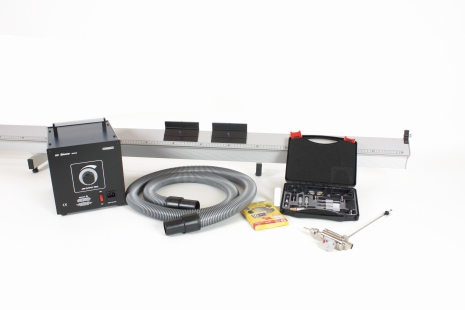

Complete set with all for the perfomance of experiments concering the topic of linear motion.

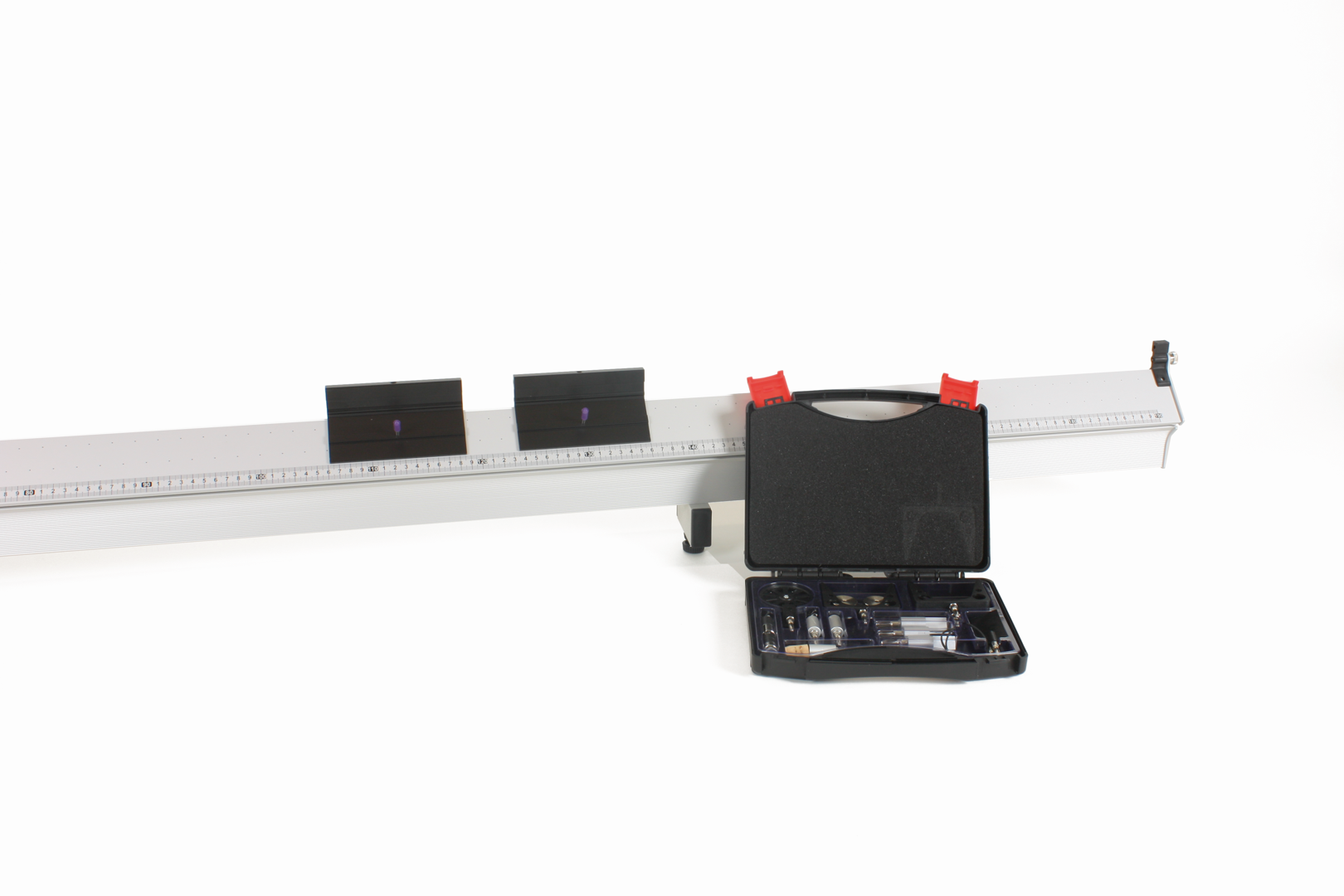

Air track for experiments concerning linear motion under minimization of friciton effects.
Apparatus for the investigationof moment of inertia. for qualitative illustration of relationshipbetween mass distribution and moment of inertia, as well as for quantitative determination of moments...

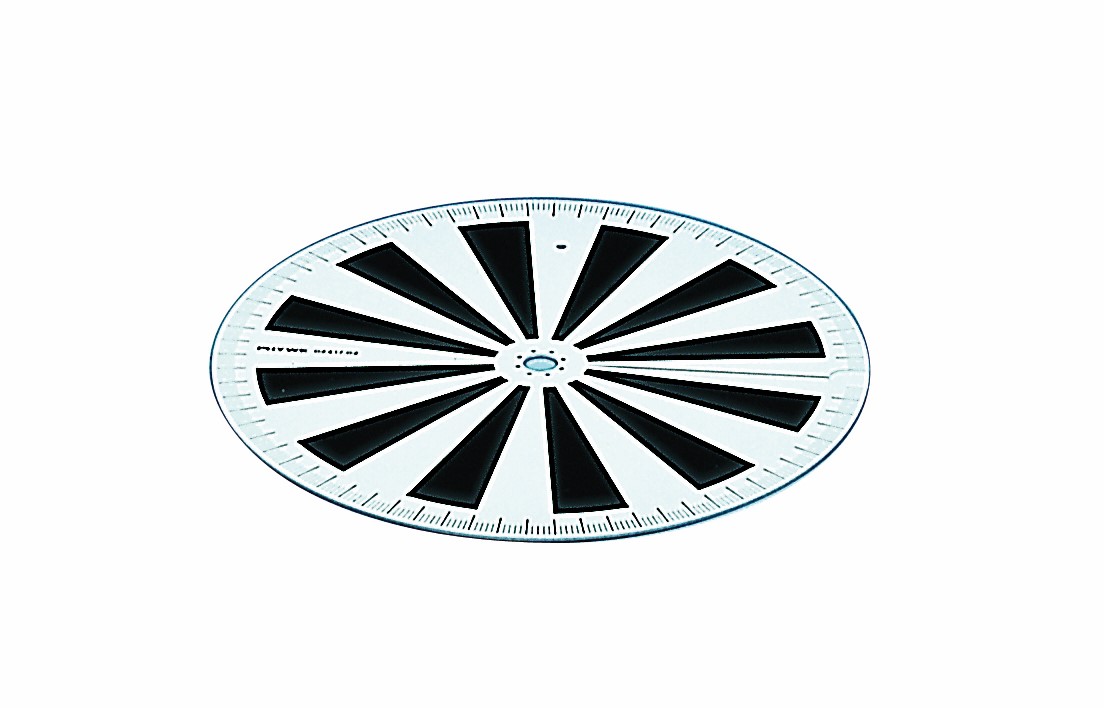

Aperture plate for turntable with angular scale to interrupt light barriers.
(no description provided)
For the determination of fall time together with the starter unit. Tray on top. With 4 mm sockets to connect a time measurement device. With adjustable contact switch.

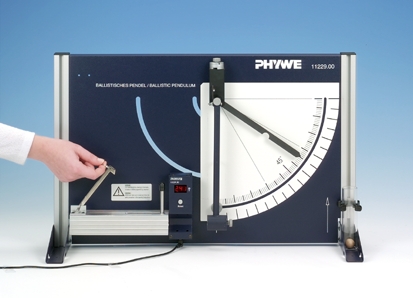

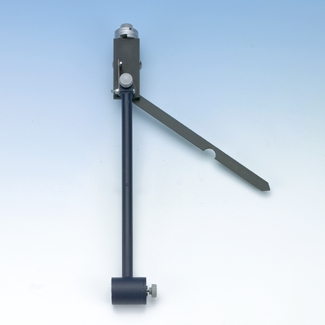

For determination of the momenta of projectiles. Pendulum with trailing pointer. Mountable on ballistic unit.

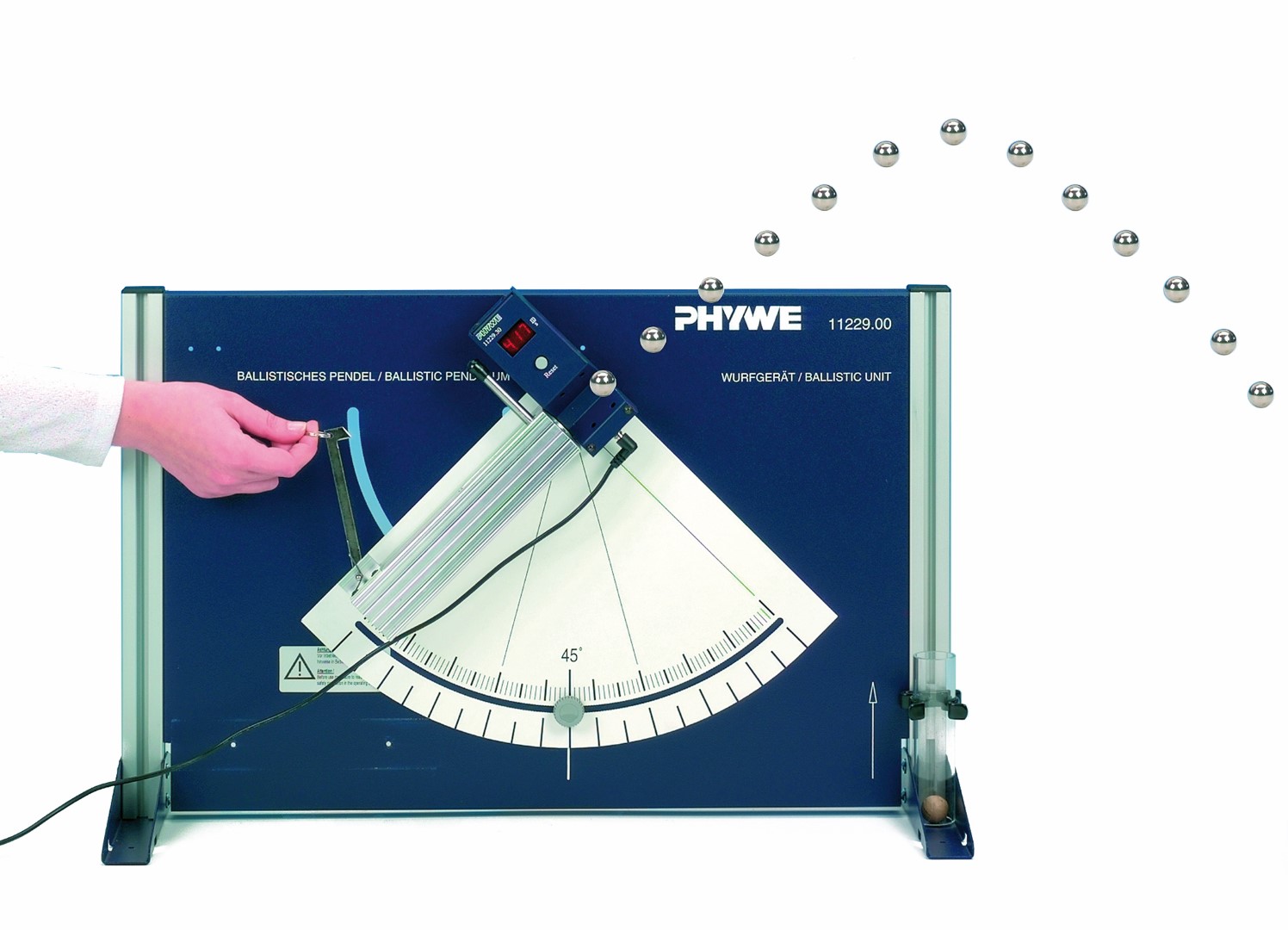

For demonstrating projectile motion and for quantitative investigation of trajectories, in particular for determining the height and range of a projectile as a function of the angle and absolut value...
For demonstrating projectile motion and for quantitative investigation of the laws of projection, in particular for determining the range of a projectile as a function of the projectile angle and the...

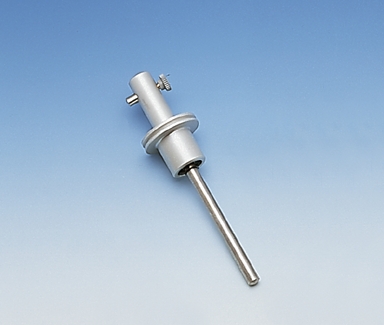

Ball bearing unit on stem with rope pulley. Stem diameter: 10 mm. Pulley diameter: 50 mm.

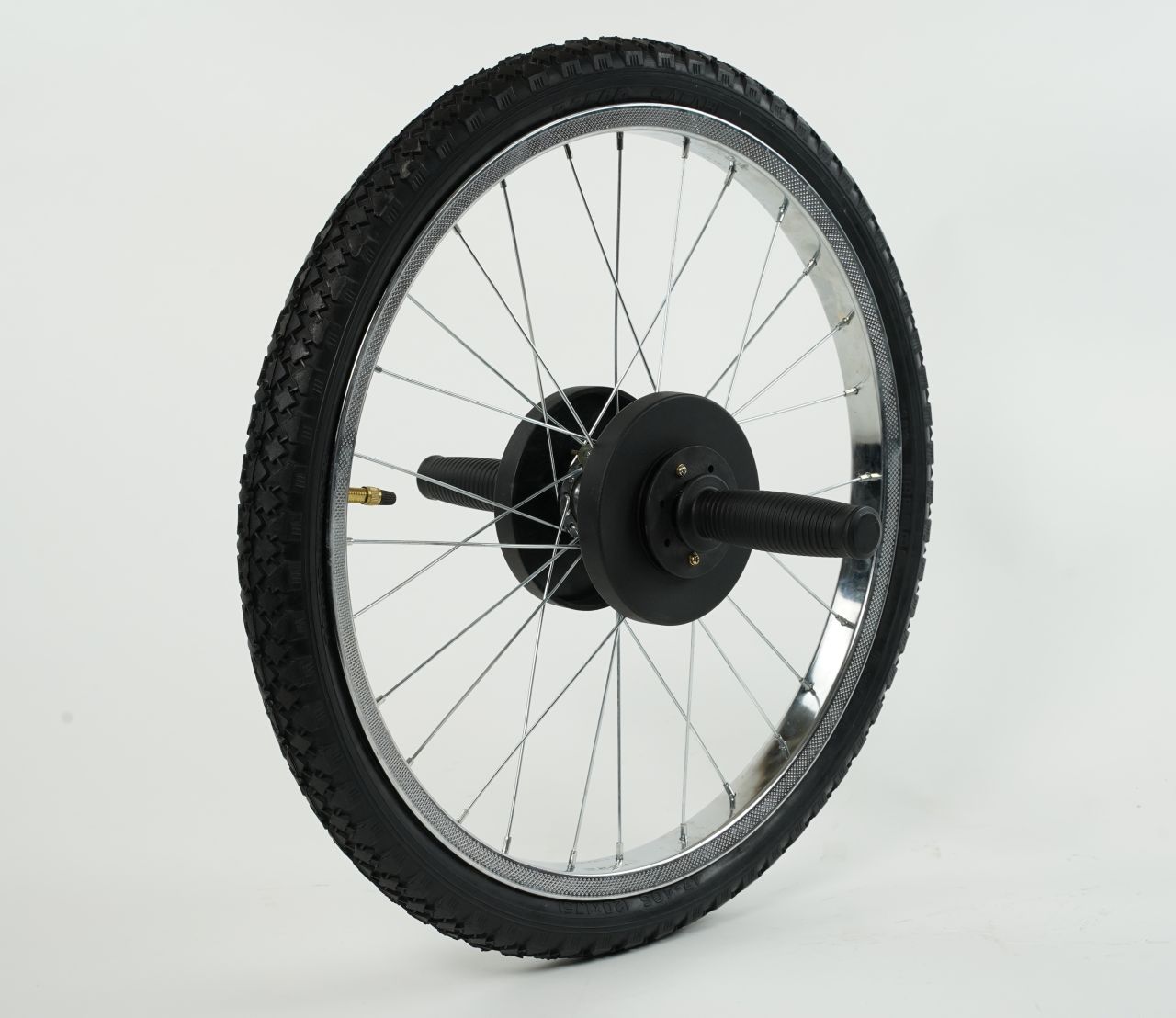

Demonstration gyroscope consisting of a wheel with two handle bars and rope pulley for accelleration. To be used for demonstration of conservation of angular momentum with turntable after Prandtl.

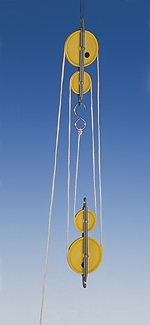

Large tackles particularly suited for demonstration experiments due to the colouring of the pulleys (yellow) and to the marking dots on the pulleys.
(no description provided)

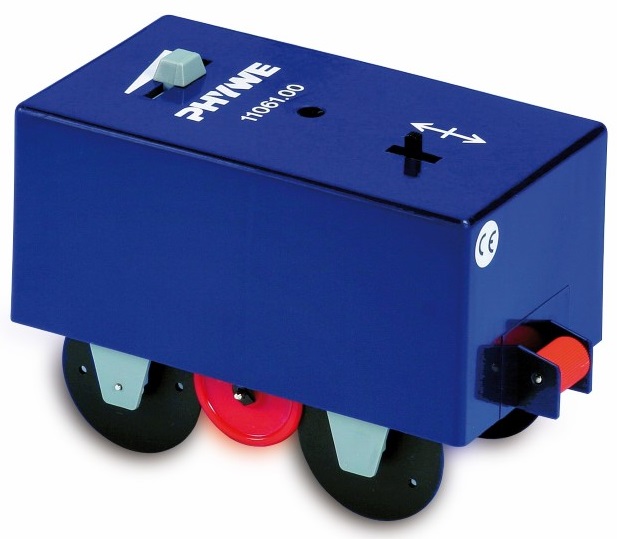

Motor-driven cart for the experimental investigation of uniform movements and introduction of the concept of speed.
For experiments to observe and measure rectilineal motions, e. g. on a track.
Cart for track systems with sapphire-supported axle bearings for minimized friction.

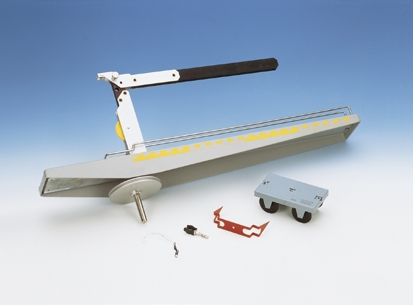

Set to measure and investigate centrifugal forces due to rotation of a body arounda defined axis.
Device for measuring the centrifugal force.

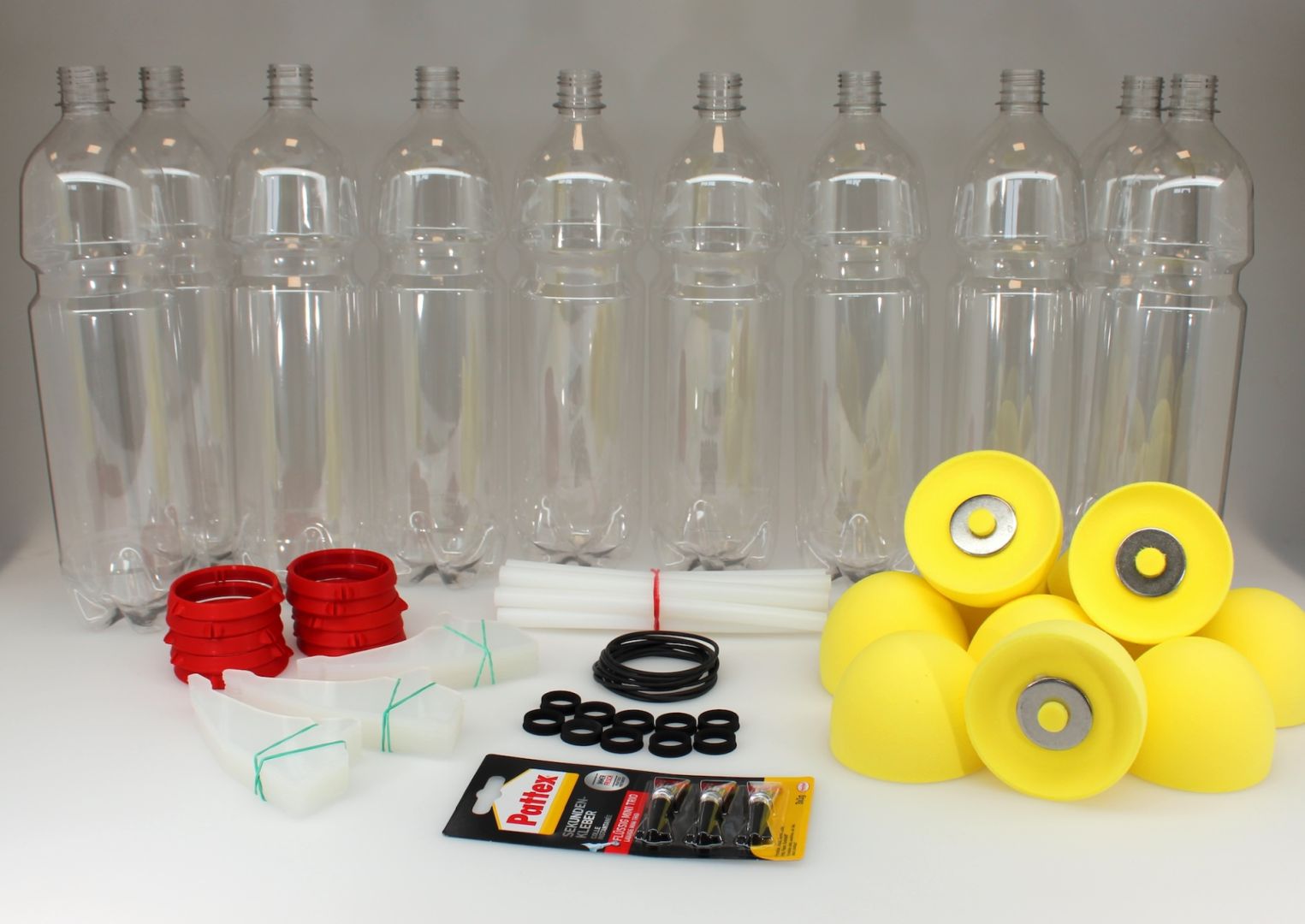

Class set for building rockets.

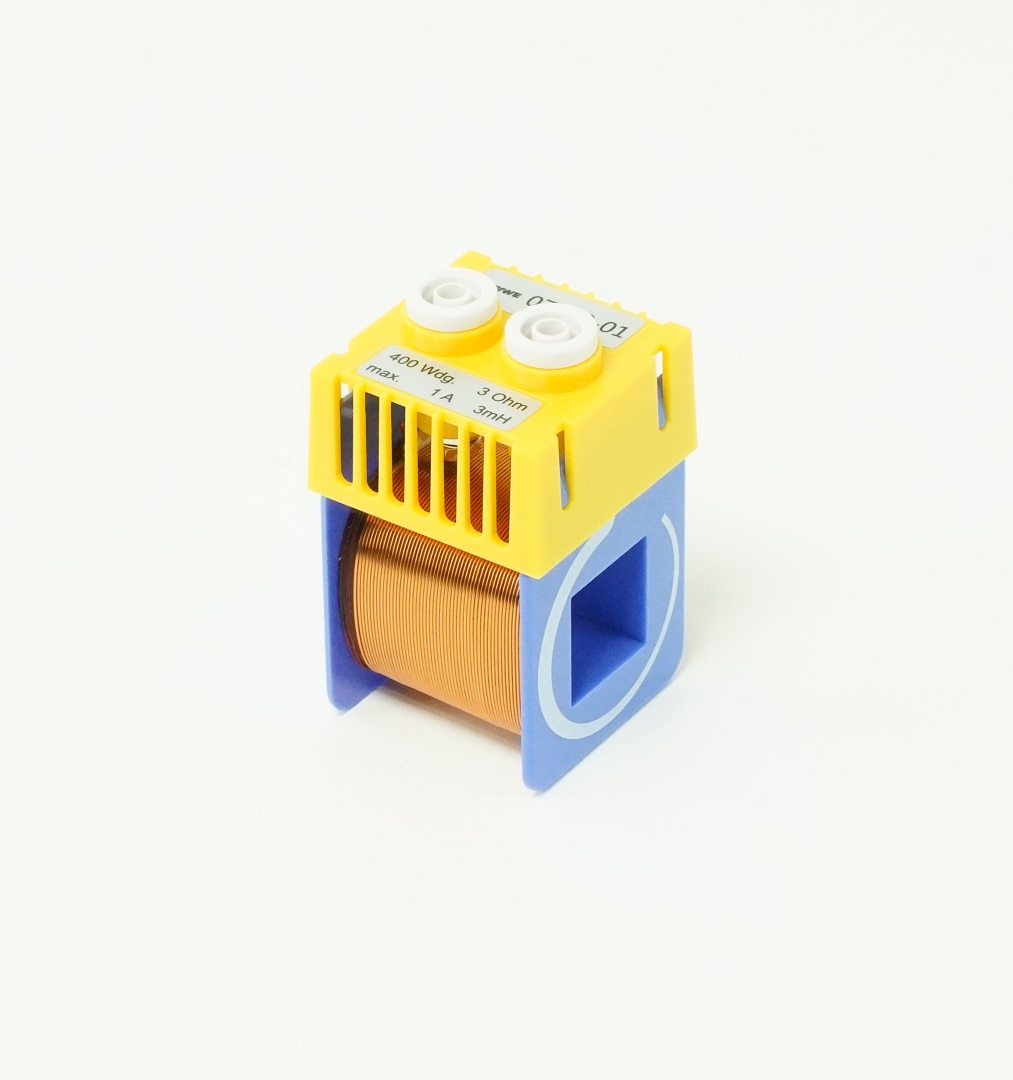

Coil, 400 turns, supplied in the U.S. by American Scientific. Contact us for specifications.

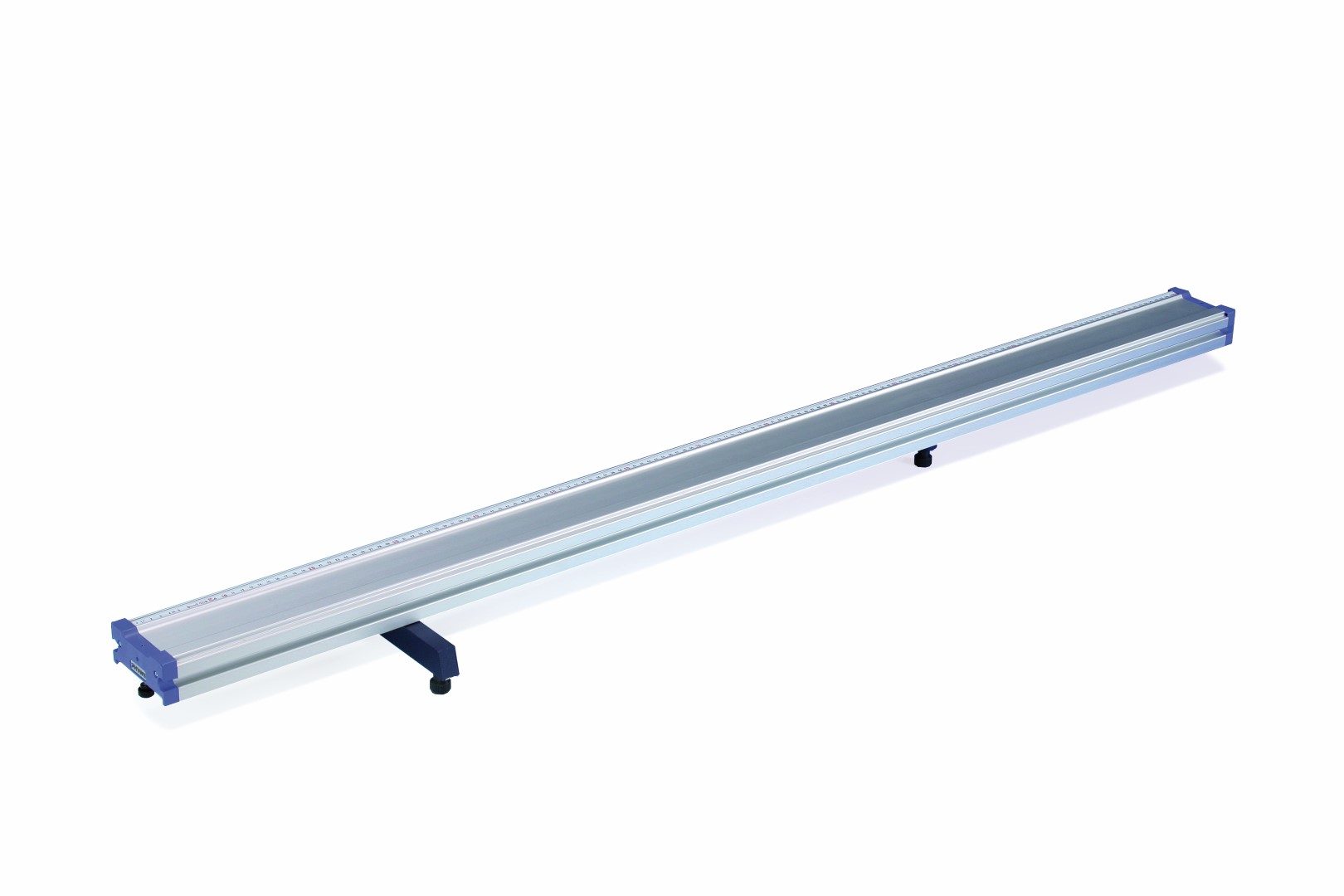

Aluminium track for demonstration and lab experiments with scale, levelling with adjustable feet, with quick lock system for accessories.

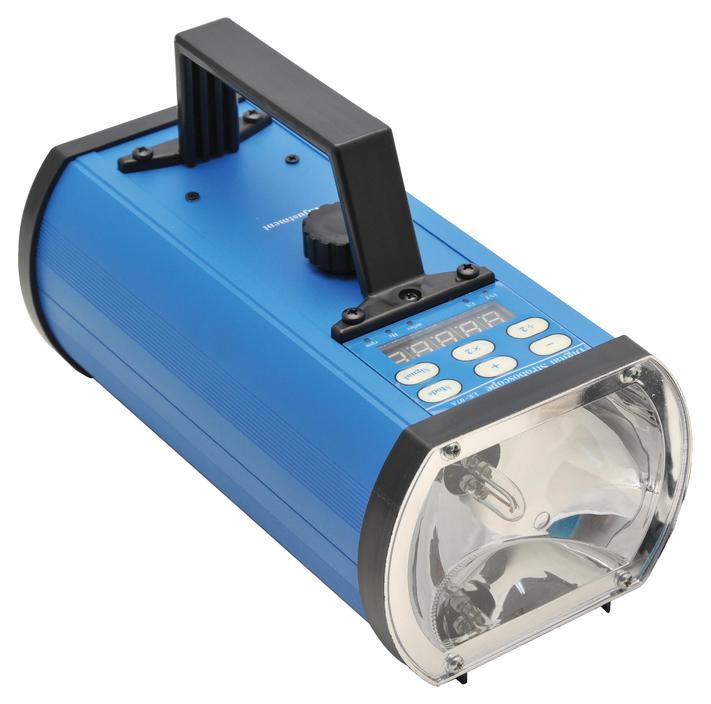

For observing fast periodic or quasi-periodic processes (e.g. rotating or vibrating objects) as well as for connection-free and powerless measurement of rotational speeds or vibration frequencies.

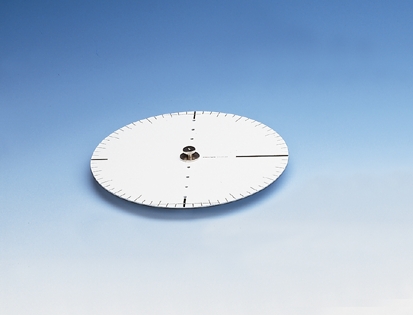

Metal disc with demonstrative angle scale for angular oscillation apparatus (02415.88).

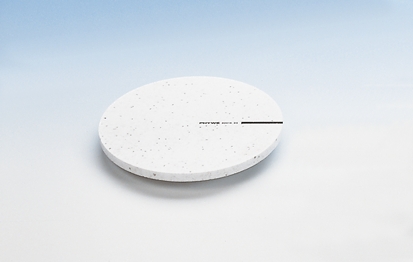

Disk on stem for angular oscillation apparatus (02415.88). Msterial: styrofoam. Diameter: 220 mm. Mass: 300 g.
(no description provided)
(no description provided)
Can be screwed onto both end of air track. Stopper made out of aluminium, V-shape. With hole to take inserts with 4 mm plugs.
With this unit a defined release of two low friction carts is enshured. Can be used for air track and motion track.
data Determination of the gravitational acceleration of the earth with great precision.
(no description provided)
Plug-in fork of black plastic for application of 4 rubber band to plug onto gliders or in the end stop of the air- or demo-rollertrack. With 4 mm plugs. Dimensions (mm): 10 x 80 x 68. Mass: 10 ± 1 g.

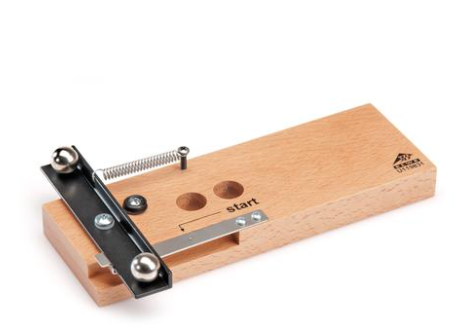

The device is used to demonstrate the undisturbed superposition of motions. A launch rail mounted on a wooden base is tensioned using a spring mechanism. Two steel balls are used as test objects.

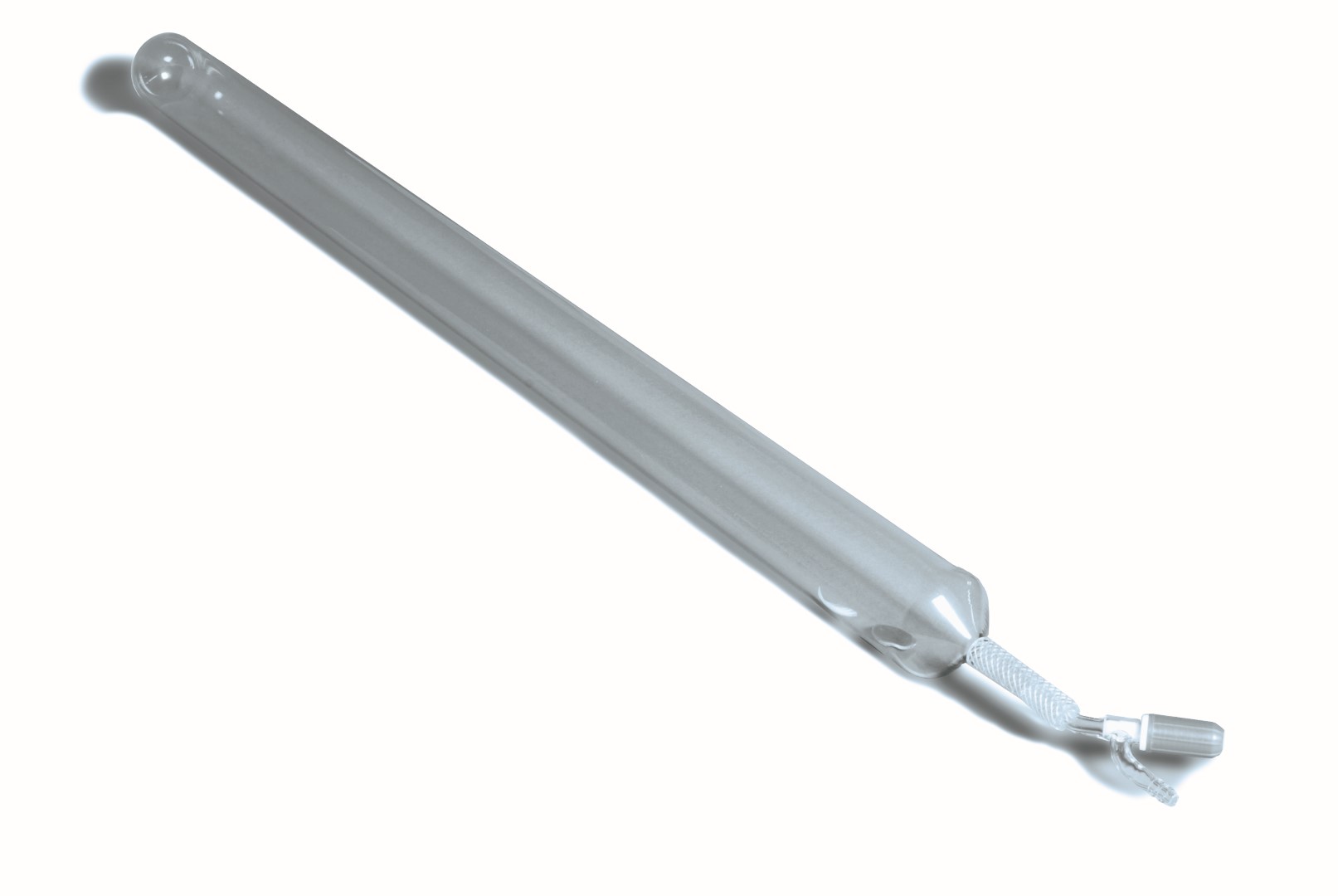

To verify that all bodies fall with the same velocity in a gravitational field if no interfering forces are present (air ascending force, air resistance).

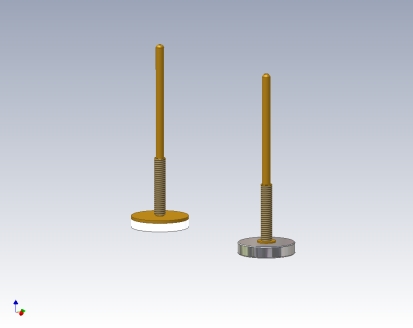

Set of 2 quick release screwable brake mechanisms for low friction cart. With this two mechanisms different brake behaviours can be evaluated on the motion track.

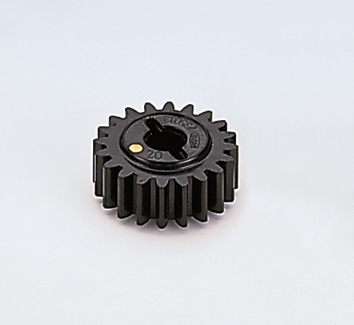

E. g. as part of a gear set for student experiments with belt drives or gear drives. Gear wheel, Z = 20, m = 2.

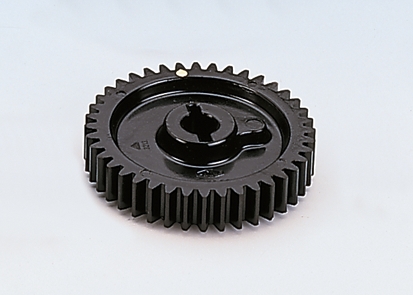

E. g. as part of a gear set for student experiments with belt drives or gear drives. Gear wheel, Z = 40, m = 2.

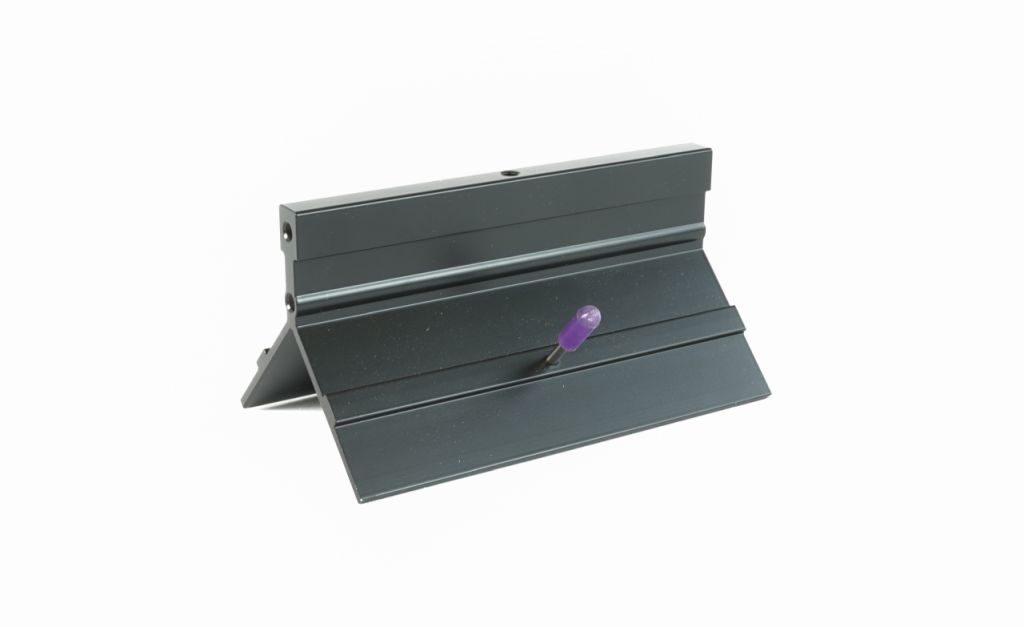

Black anodised glider for gliding on air track.
Demonstration and practical set for working up the gyroscope laws.

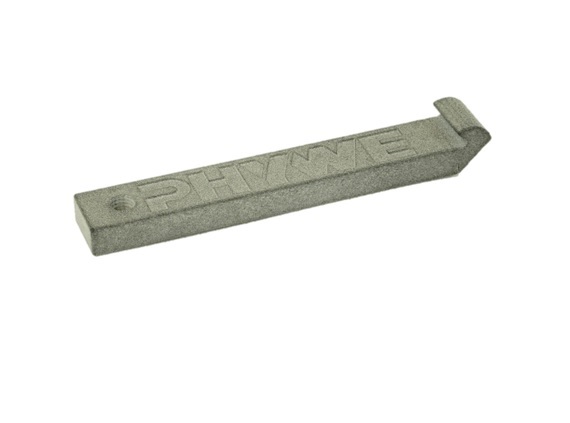

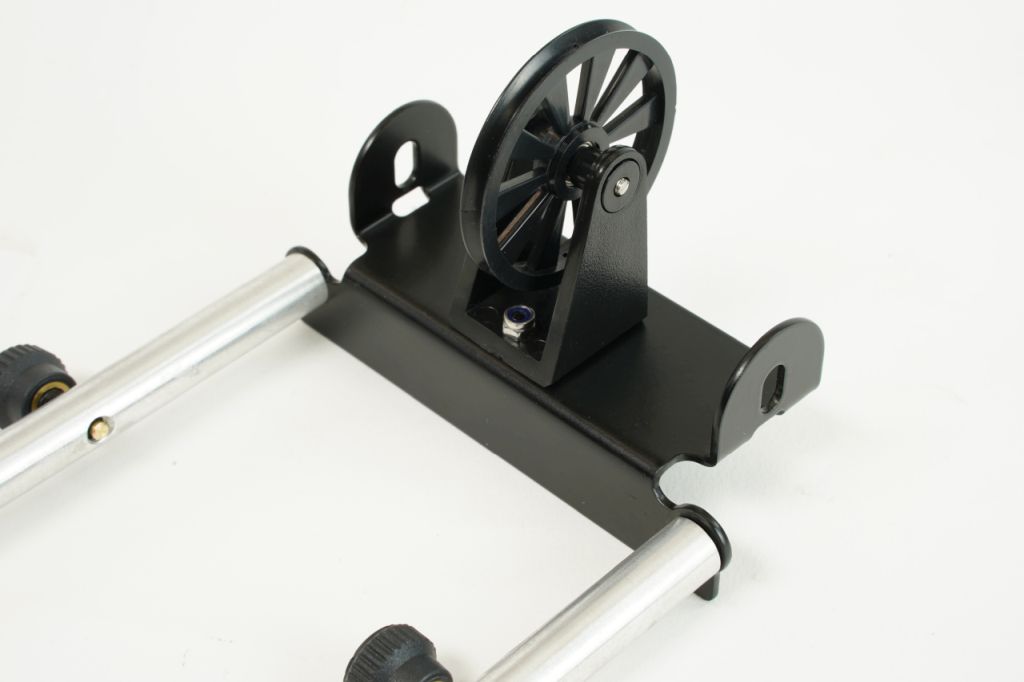

Holder with knurled screw and quick-release system for fixation of light barriers on the demonstration track. Dimensions (mm): 25 × 15 × 112. Mass: 40 g.
(no description provided)

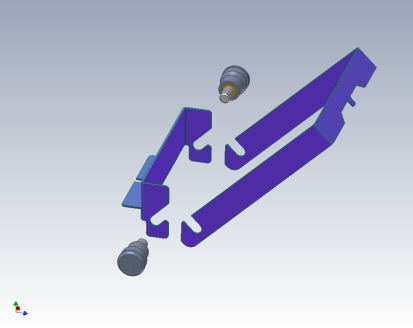

Holder for pulley, supplied in the U.S. by American Scientific. Contact us for specifications.
Plug-in elementto be plugged onto the glider to draw it to the starting system when the electromagnet coil (07829.01) is switched on.
Plug-in elementto be plugged onto the glider to draw it to the starting system when the electromagnet coil (07829.01) is switched on. U-shaped soft iron core with 4 mm plug. Dimensions (mm): 25 x 38 x

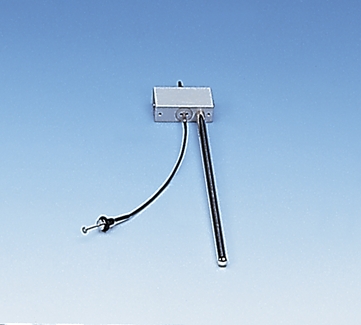

Apparatus to release rotor and simultaneously close a contact to start an electronic counter. Rod length: 300 mm.
(no description provided)

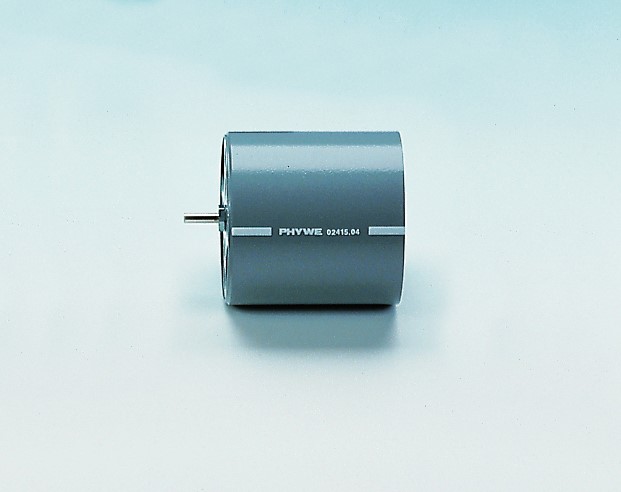

Hollow cylinder on stem for angular oscillation apparatus (02415.88). Made out of metal. Mass: 380 g. Diameter: 100 mm. Height: 100 mm. Wall thickness: 4 mm.
Plug-in element for use in conjuction with precision pulley, weight holder, silk thread and 1 g slotted weights for accelerating the air track glider or the cart of the demo-rollertrack.

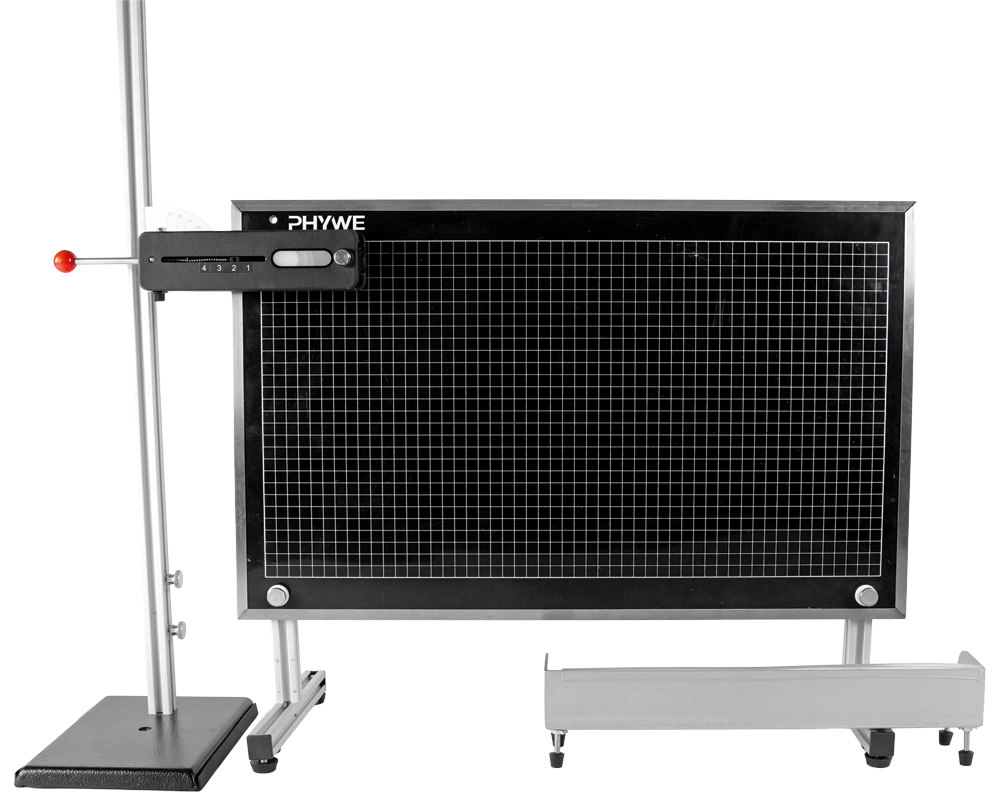

Horizontal Projectile Motion with Cobra DigiMotion, supplied in the U.S. by American Scientific. Contact us for specifications.

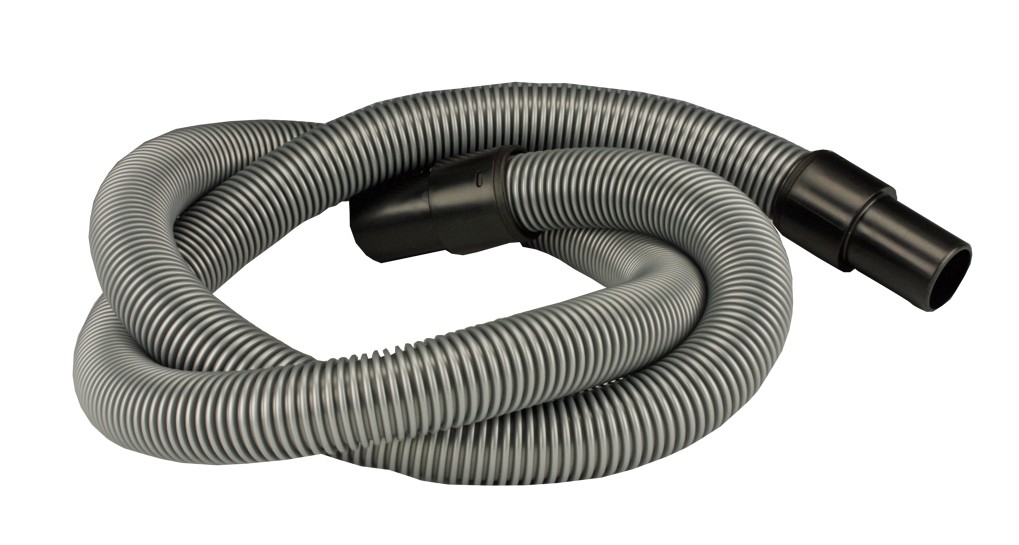

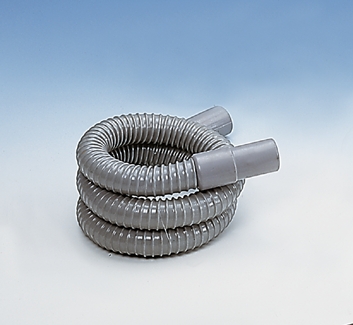

The hose is a spare part for the blower of the air track. It ensures the air supply to the surface of the track and is essential for the proper operation of the experimental setup.
For the determination of fall time together with the starter unit. Tray on top. With 4 mm sockets to connect a time measurement device. With adjustable contact switch.
(no description provided)

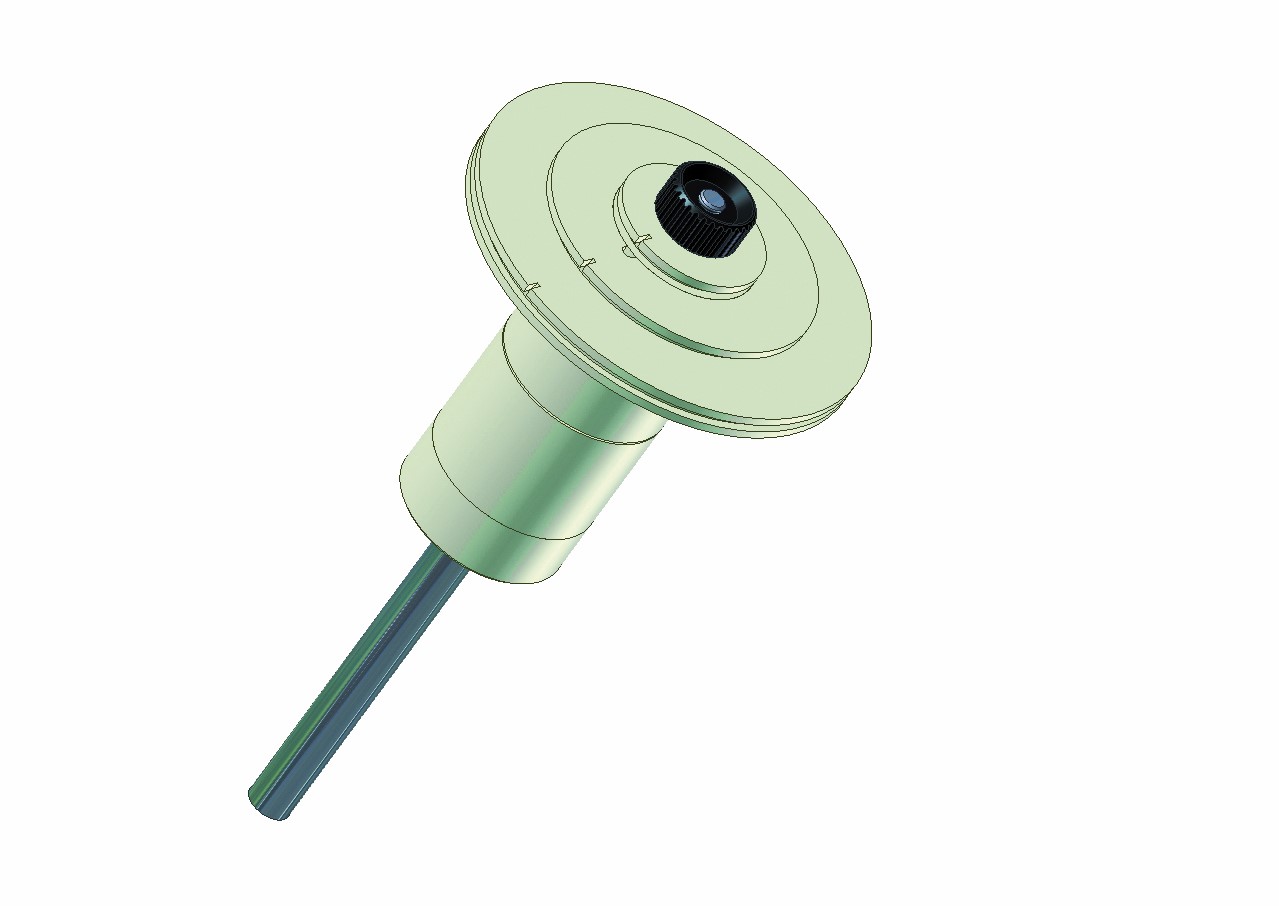

To be used with precision pivot bearing (02419-00).

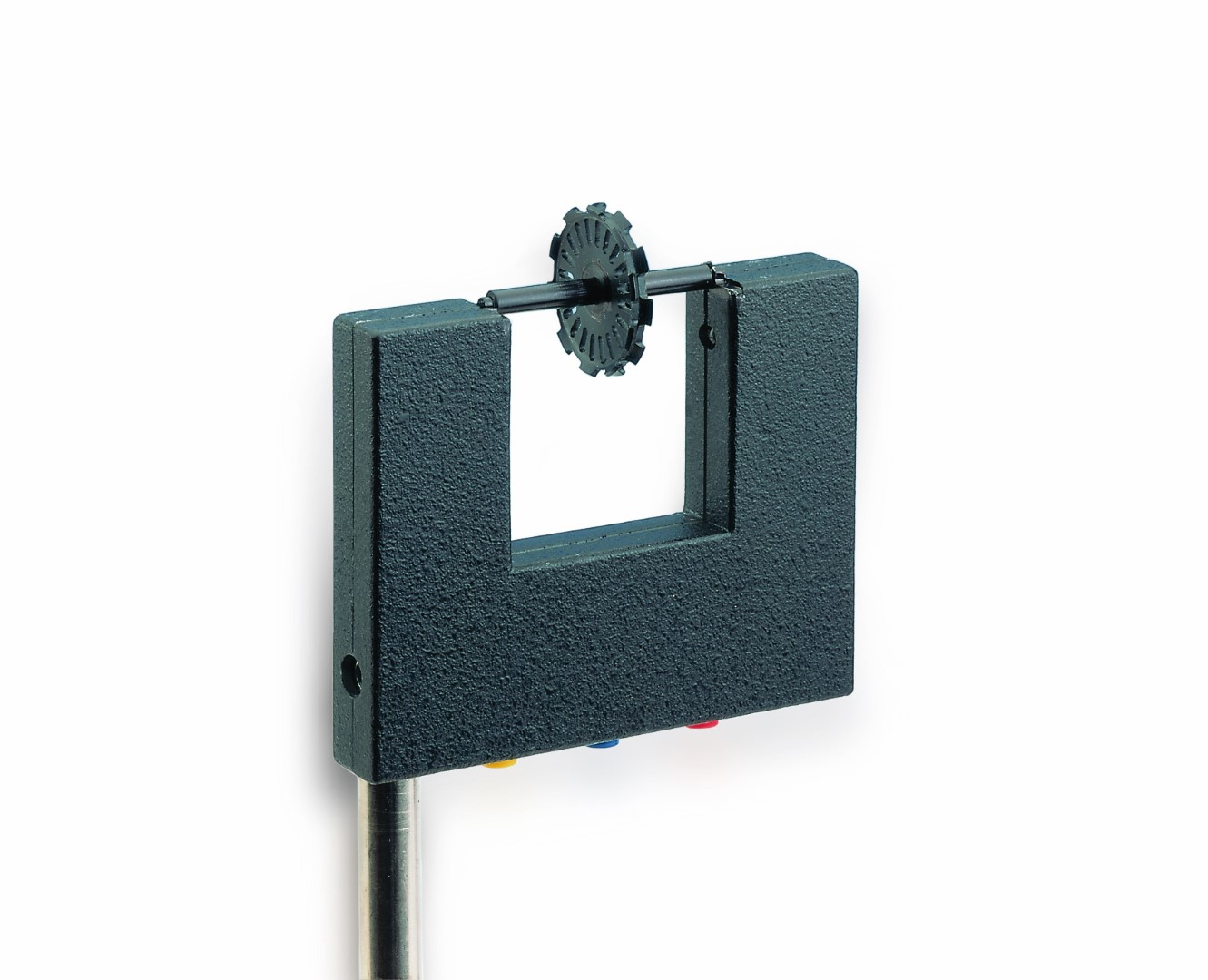

Use the compact infrared fork-type light barrier with flexibly mountable rod to record motion sequences completely without contact, providing students with an intuitive introduction to dynamic...
(no description provided)

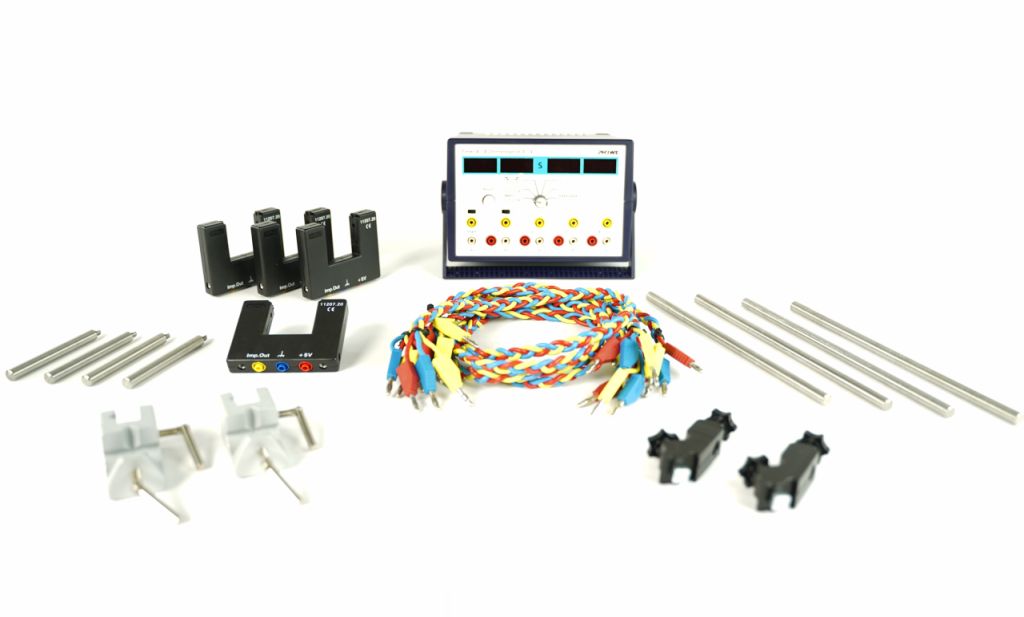

Light barrier extension set for the air track. Equipment and Technical Data: The set consists of the Timer 4-4, four light barriers and the neccessary support material and connection cords.
Magnetic plug-in element for fixation of the air track glider or the cart of the demo-roller track to the starting device. Equipment and technial data Dimensions (mm): 16 x 38 x 16. Mass: 10 ± 1 g.
Apparatus for conversion of potential to kinetic energy and vice-versa (translation and rotation).
Plug-in element for experiments with inelastic collisions. While colliding the needle penetrates the plastic filling in the tube. Needle is protected by cork stoppers. Mass: 10 ± 1 g.

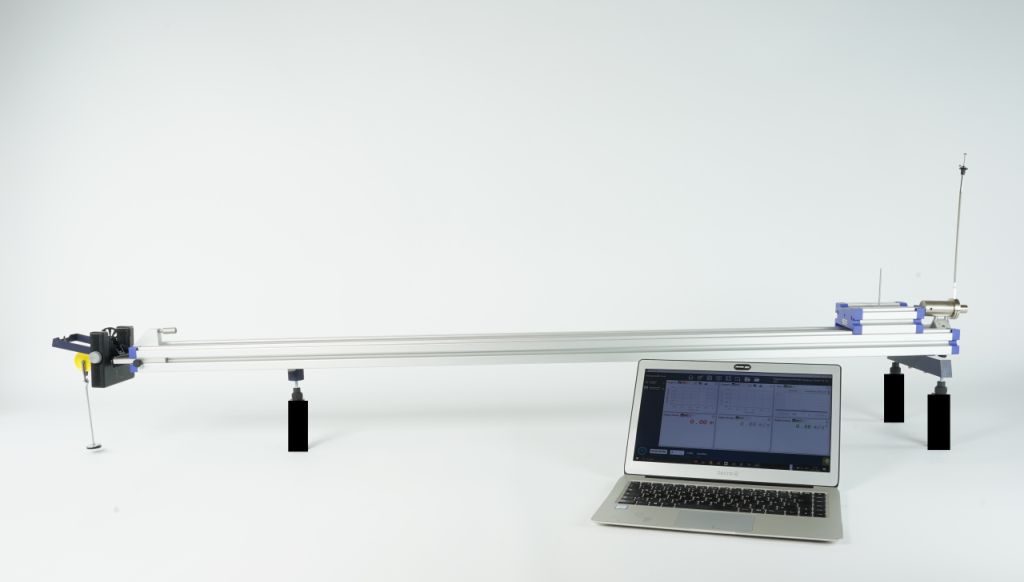

According to Newton's 2nd law of motion for a mass point, the relationship between mass, acceleration and force are investigated.

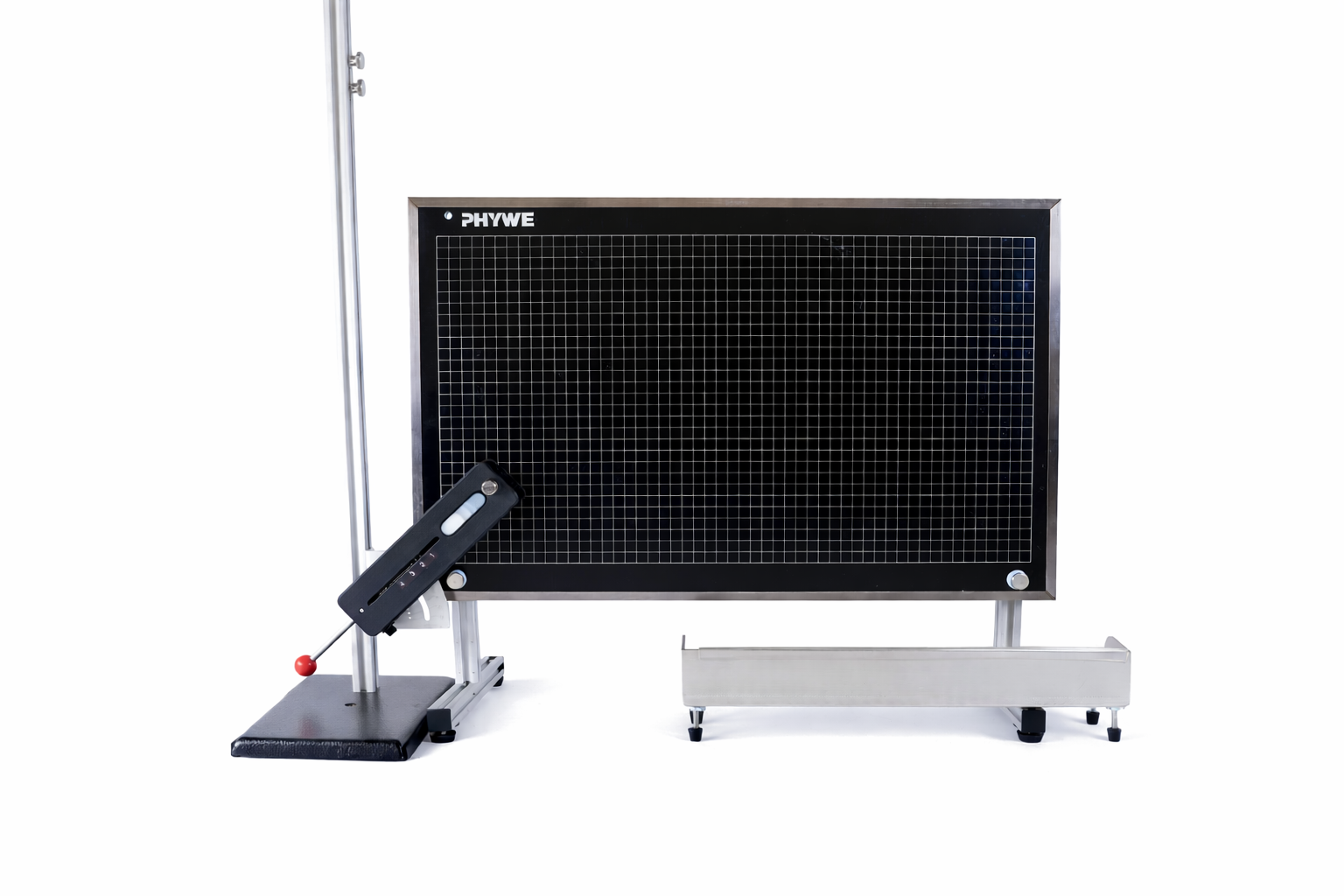

Oblique Projectile Motion with Cobra DigiMotion, supplied in the U.S. by American Scientific. Contact us for specifications.

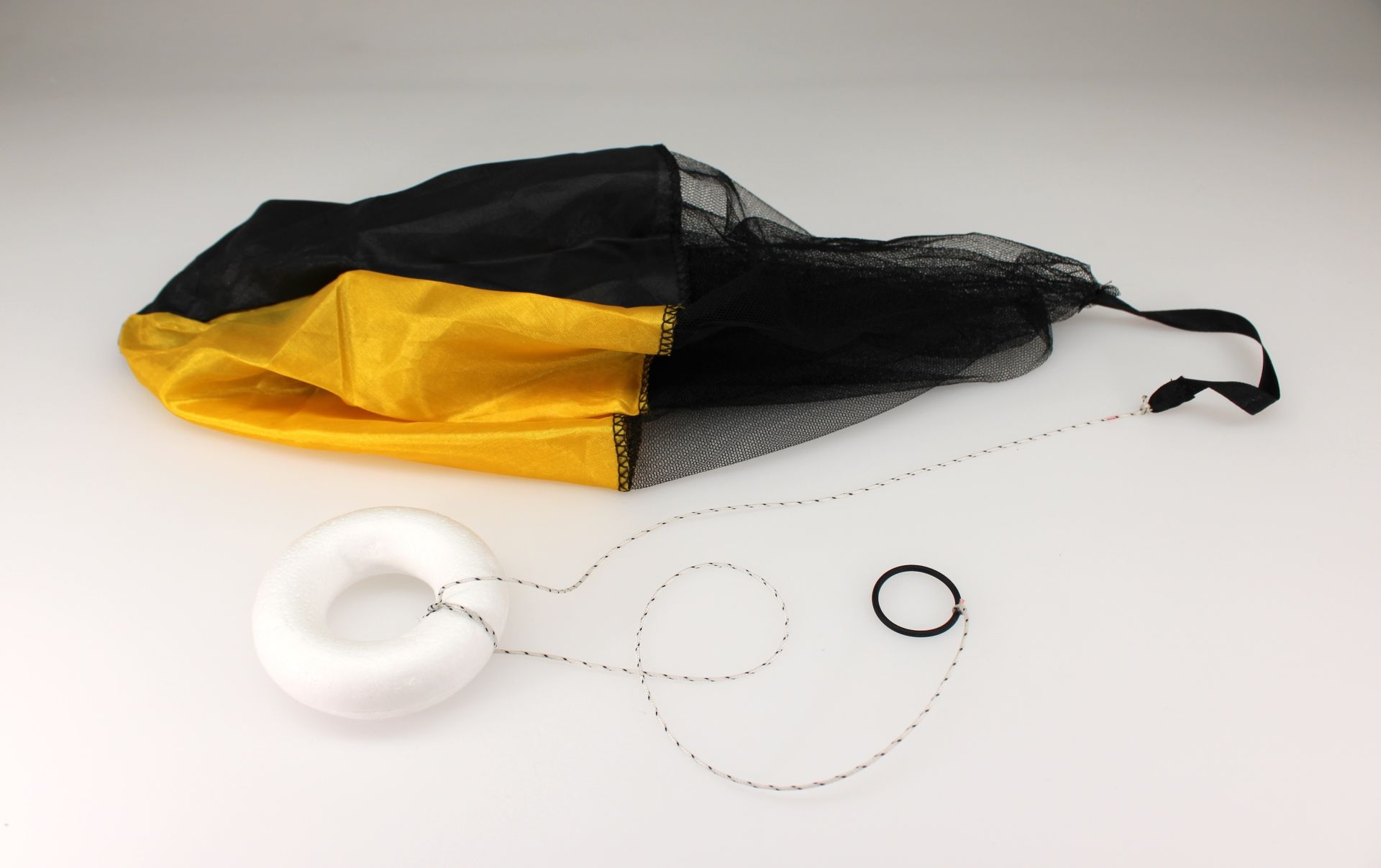

Parachutes for rocket model, 3 pcs., supplied in the U.S. by American Scientific. Contact us for specifications.

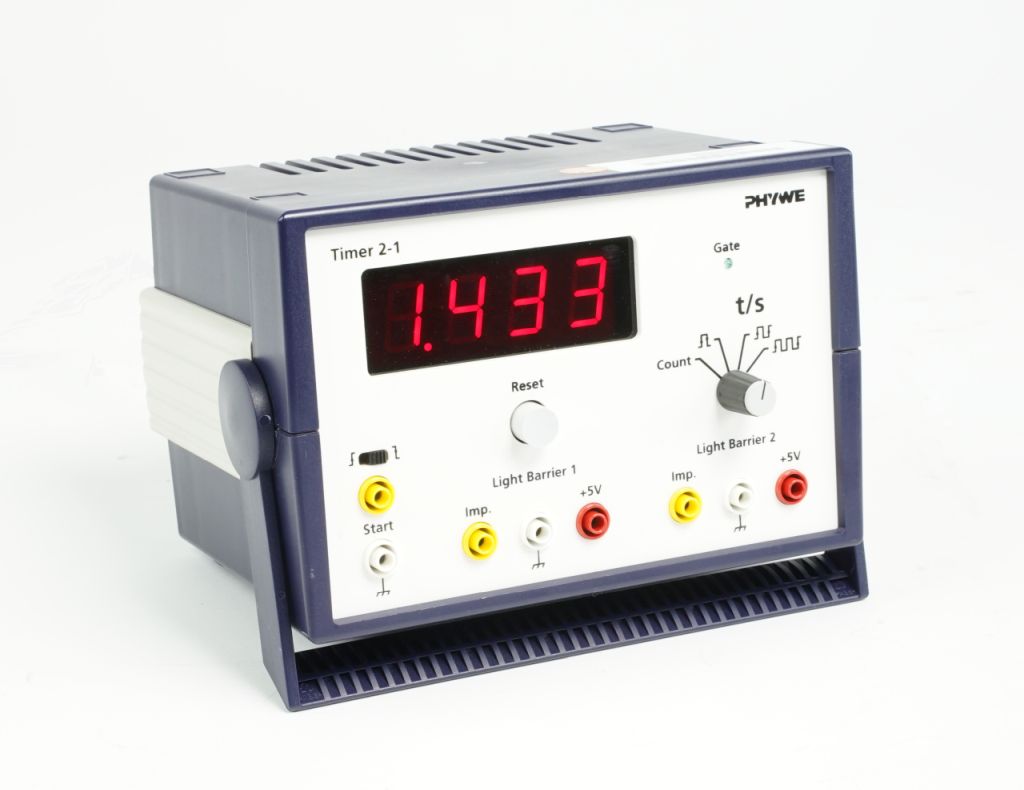

The chronometer Timer 2-1 has a 4-digit digital display and has been specially designed for use in student experiments and demonstrative teacher experiments.

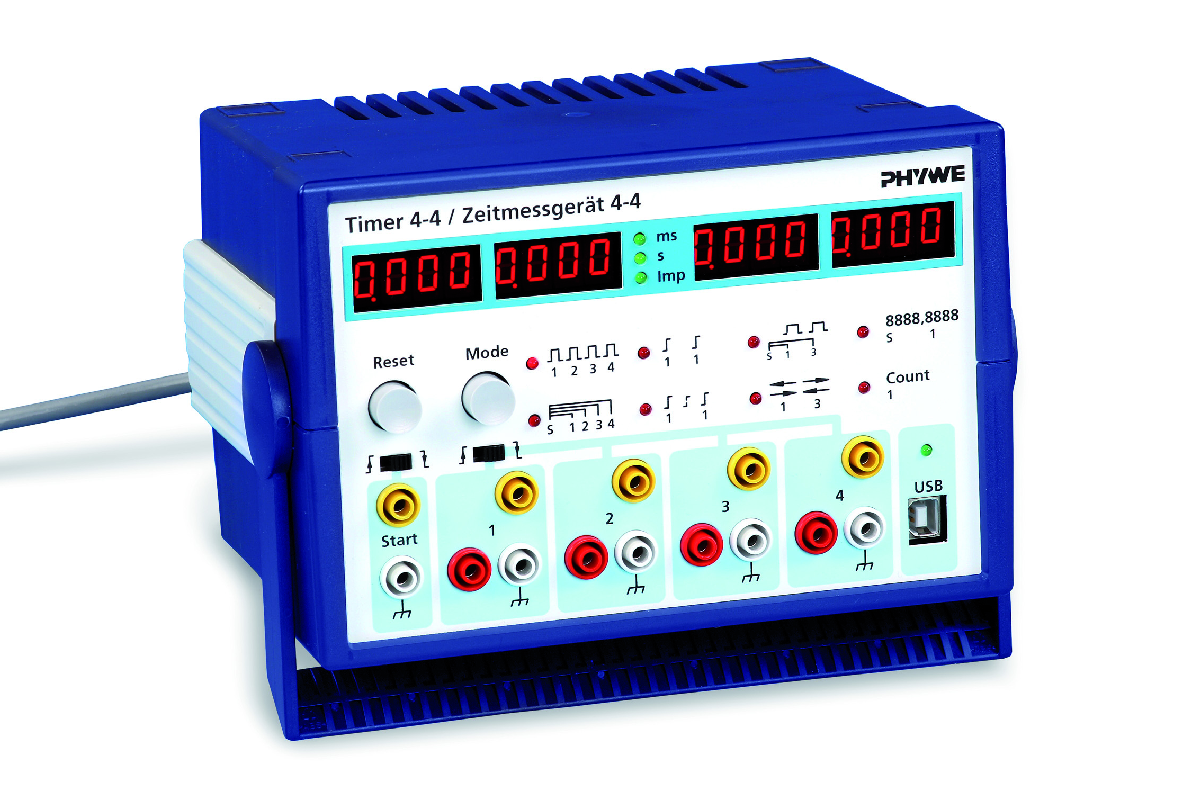

Measures up to 4 times simultaneously. Multiple time measuring instrument for a variety of applications in teaching, wherever times are to be accurately measured.

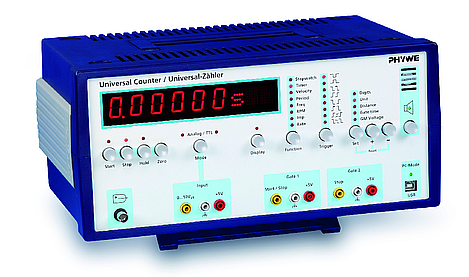

Measurement device for applications in mechanics and radioactivity. Measures time, frequency, pulse rates, pulse counting, periodic times, speeds and velocities.
E. g. as accessory for experimental tracks.
Plug-in element for experiments with elastic collisions. For use in conjunction with electromagnetic starting device and with plug, for producing reproducible glider velocities.

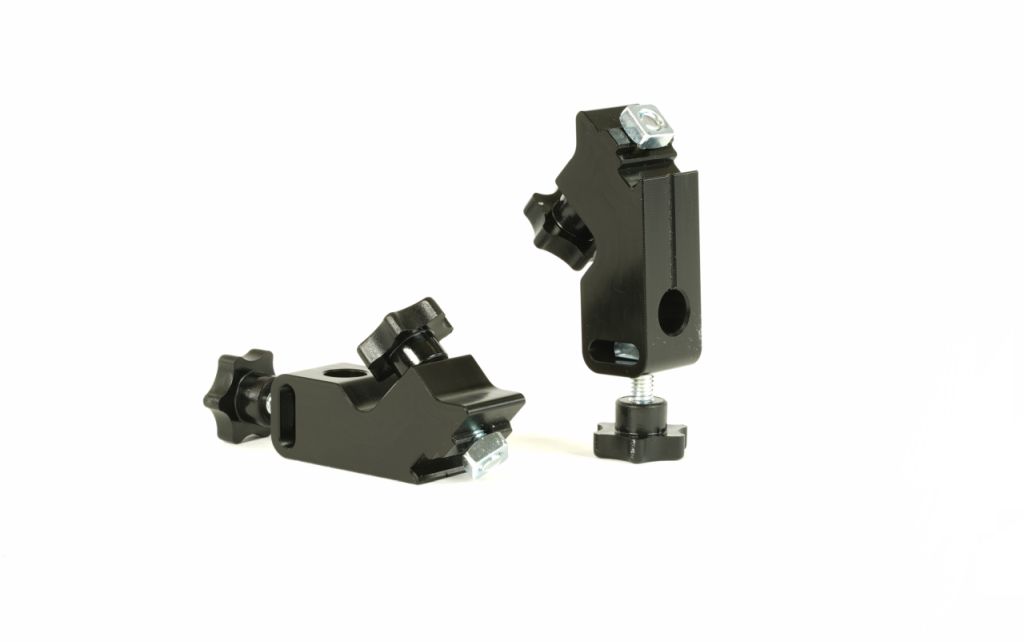

For mounting all accessory parts for the experimental tracks with 4 mm plug. Usable in connection with the cart for measurements. Mass: 20 g.
For experiments with rotational movement. Applicable to several experiments concerning rotational movement:- angular velocity- angular acceleration- rotational energy- torque- moment of inertia of a...

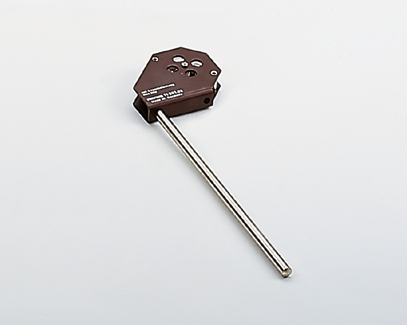

Pulley on stem with low moment of inertia, point bearing in saphire socket. Diameter of pulley: 50 mm. Diameter of support stem: 10 mm. Length of support stem: 160 mm. Max. bearing load: 0.2 N.
(no description provided)

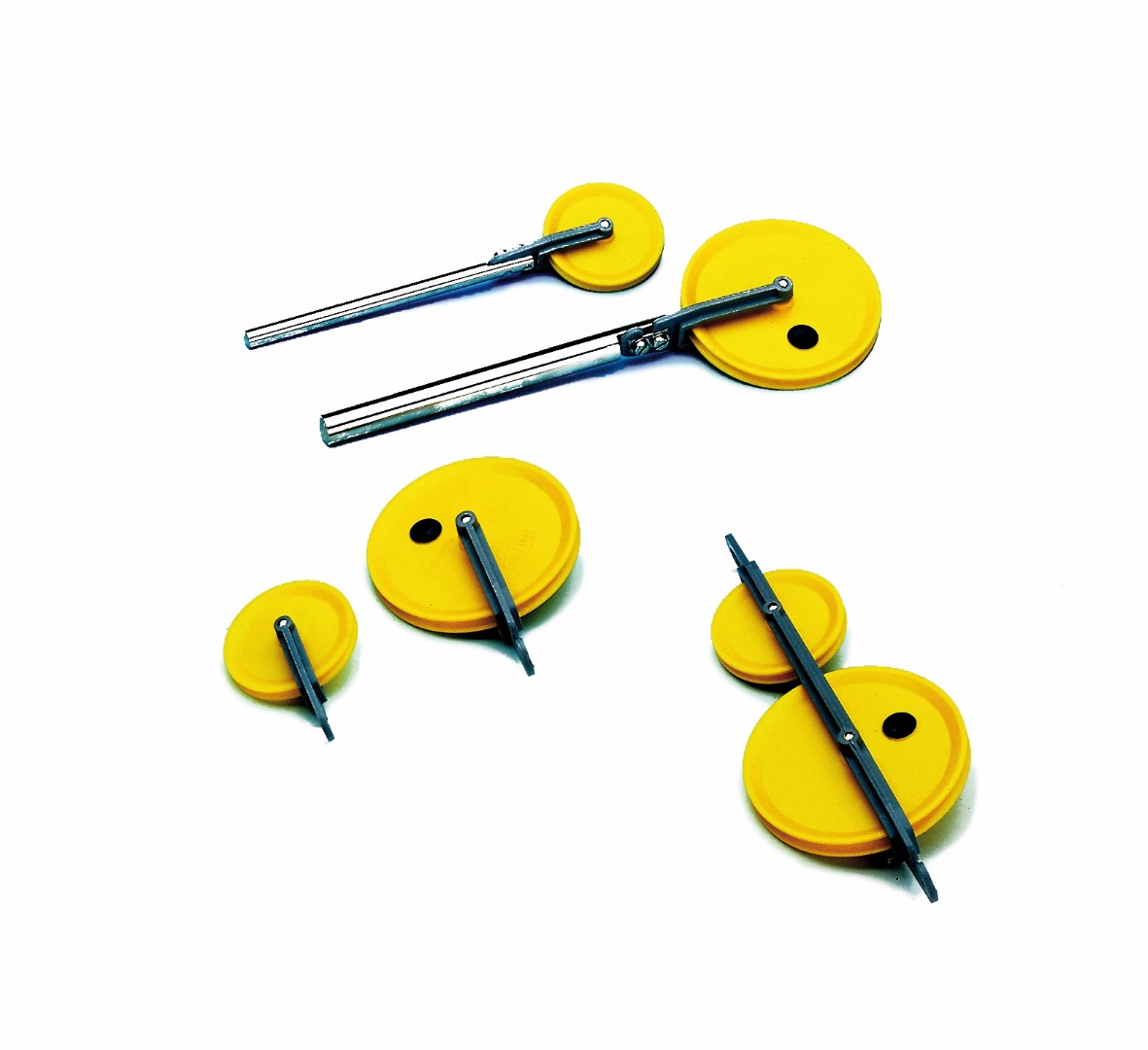

To demonstrate fixed pulleys, to assemble simple tackles and to change force directions.
To demonstrate fixed and loose pulleys, to assemble simple tackles and to change force directions.

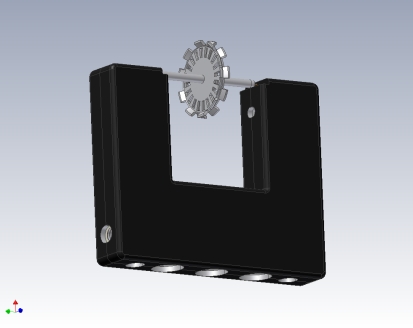

Low friction pulley for demonstration track to be used for acceleration of low friction cart by usage of thread and weights. Consisting of housing of light barrier compact with pulley. Dimensions (mm)
For demonstration of movable pulleys and for construction of simple tackles. Pulley with band channel and load hook. Material: plastic, yellow. Diameter: 40 mm.
To demonstrate loose pulleys, to assemble simple tackles and to change force directions. Pulleys with cordgroove. Material: yellow plastic. With marking dot. With hook. Pulley diameter: 65 mm.

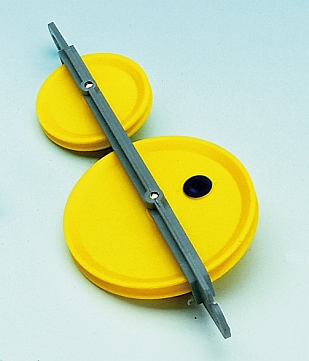

To assemble simple tackles. With hook. Diameters of pulleys: 40 and 65 mm.

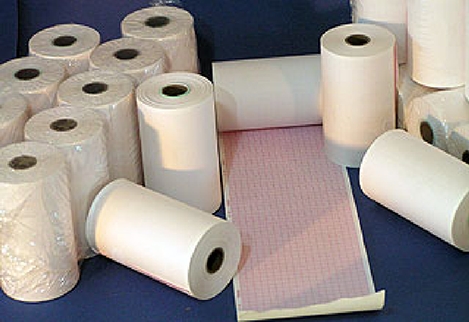

Accessory for the ballistic unit. Length: 25 m. Width: 210 mm.

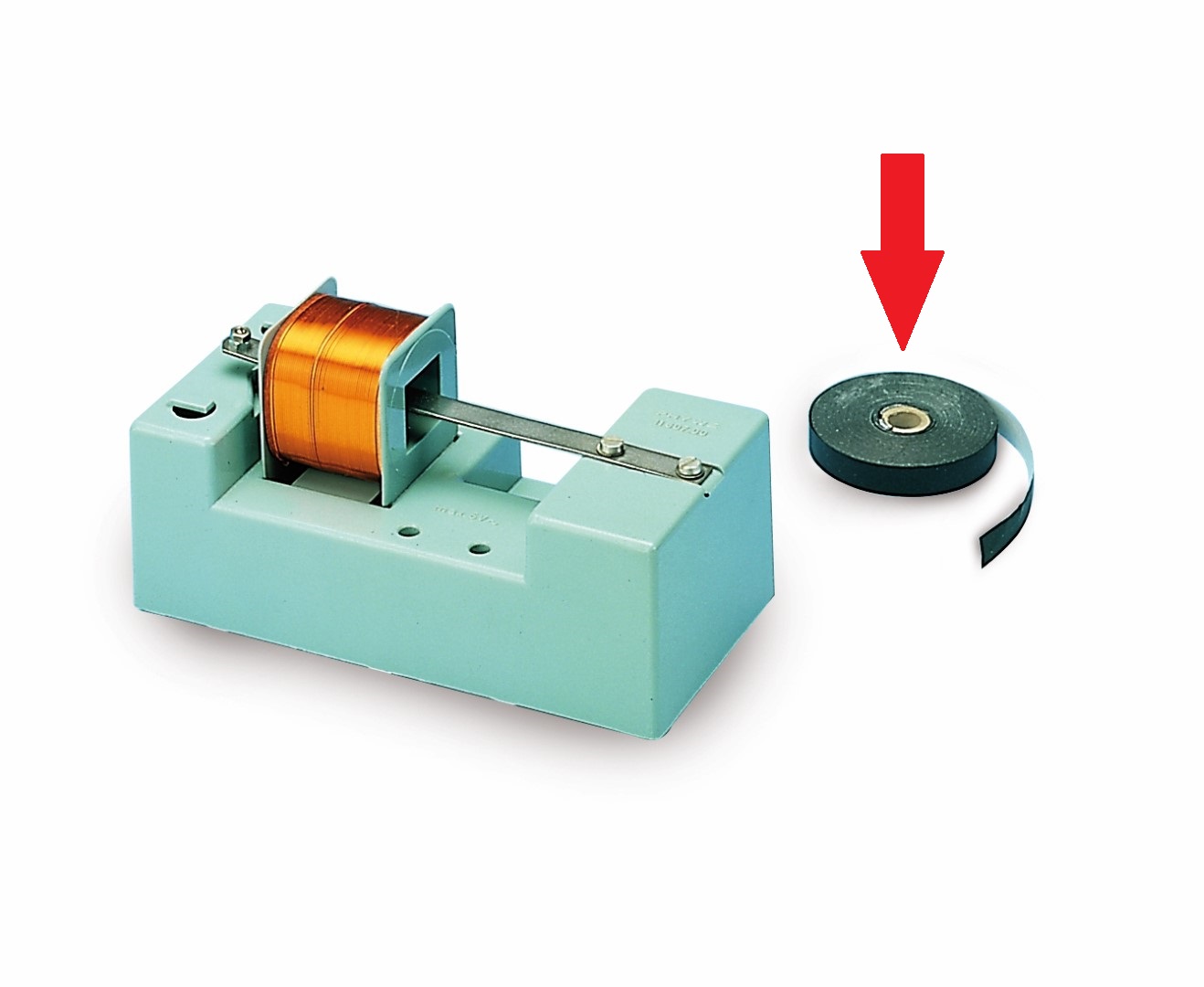

Self-recording tape for recording timer (11607.00). Length: 50 m. Width: 10 mm.

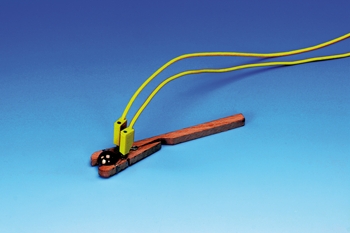

Mechanical fixation on stem with release for timely defined local release of suited bodies (rods, balls etc.).

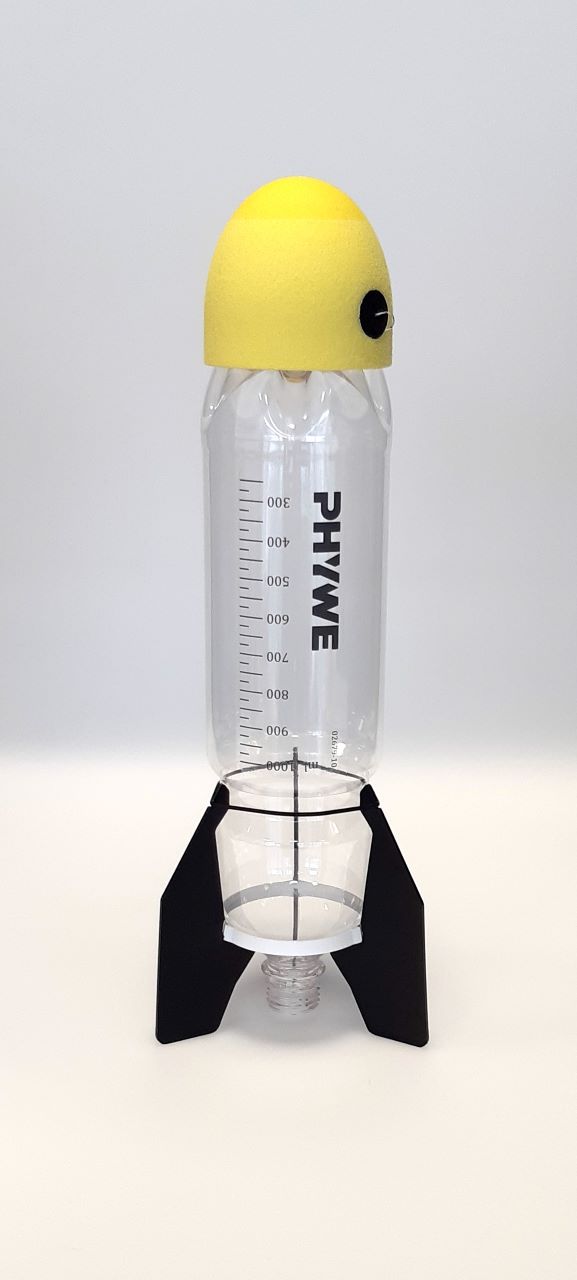

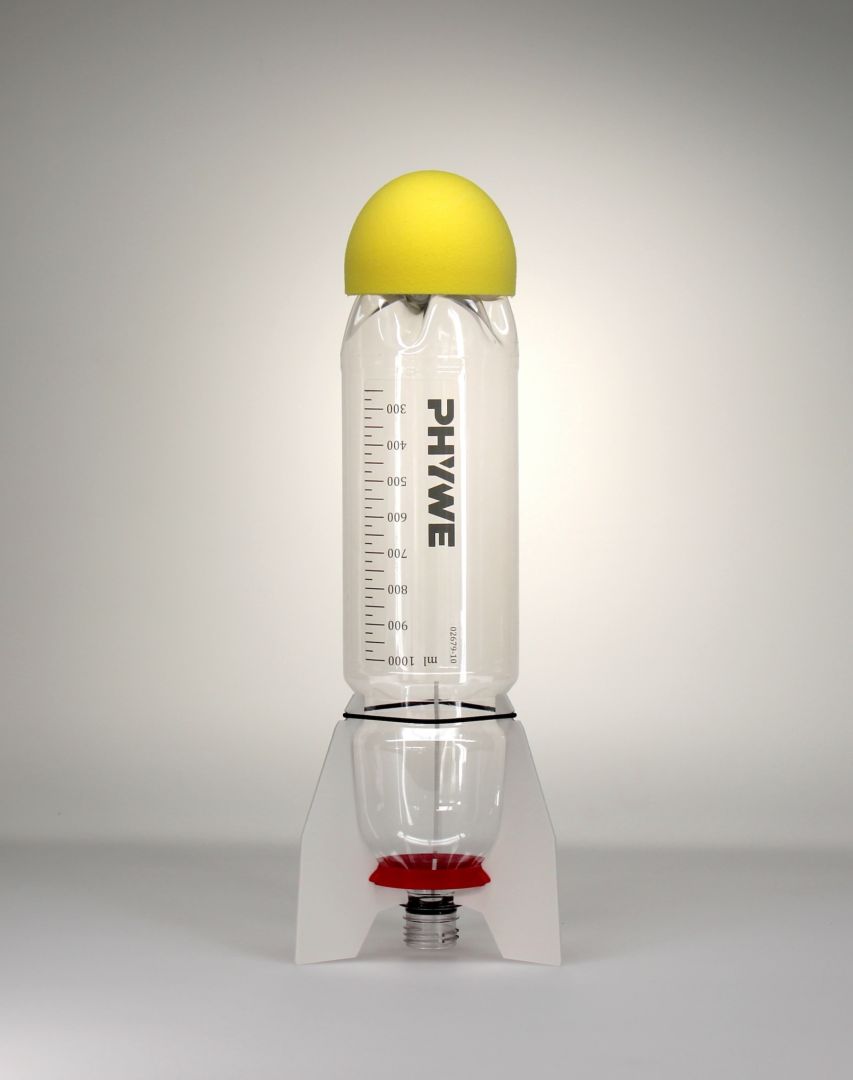

Replacement rocket for rocket model (item no. 02679-00) consting of PET bottle, attached impact absorber, scale, 3 fins, tail ring and fin O-ring.
Sensor rocket consisting of PET bottle, glued-on impact absorber, volume scale, 3 fins, tail ring, fin O-ring, and nozzle. It is compatible with the sensor (02679-04) and the rocket model (02679-00).
To demonstrate the rocket principle. Can be used as a water rocket or as an air rocket.

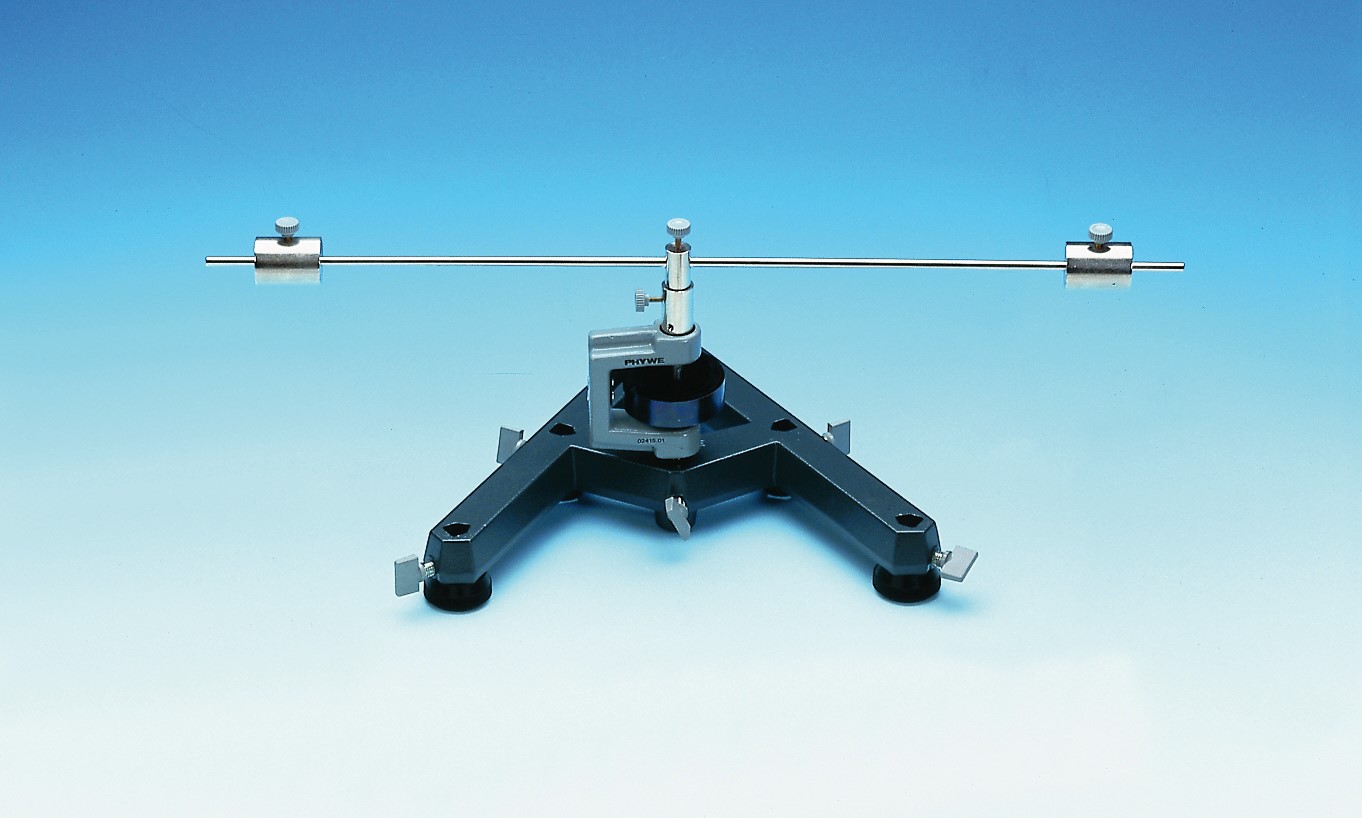

Stem with movable masses as part of the angular oscillation apparatus (02415.88). Length: 600 mm. Stem diameter: 5 mm. Masses of each piece: approx. 210 g.
A rotable axle supports at two places in a frame which is held by a spiral spring to the frame.
Rubber bands for fork with plug (11202.08). Dimensions (mm): 1 x 100 x 1. Mass: 5 g.
Plug-in screen of black plastic to plug onto gliders for breaking the light beam from light barrier for control of electronic time measurement equipment. Screen length: 100 mm. Mass: 10 ± 1 g.
Plug-in screen of black plastic to plug onto gliders for breaking the light beam from light barrier for control of electronic time measurement equipment. Screen length: 25 mm. Mass: 5 ± 0.5 g.

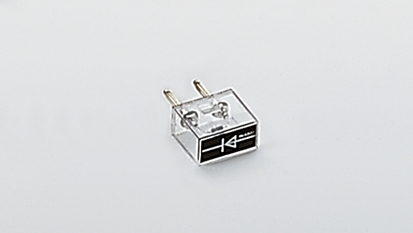

Semiconductor diode Si, 1 N 4007, case G1, supplied in the U.S. by American Scientific. Contact us for specifications.

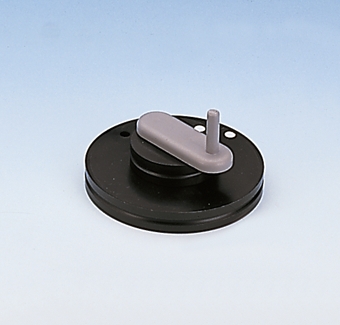

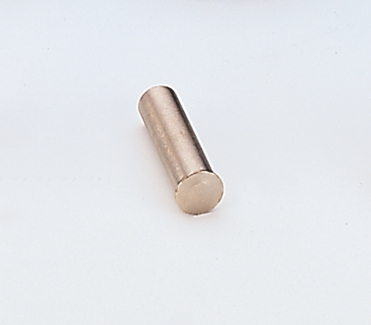

E. g. in connection with the wheel and axle (02360.00) for demonstration of simple engines. Material: High qualitiy steel. Length: 45 mm. Diameter: 12 mm. Accessories Wheel and axle (02360.00).

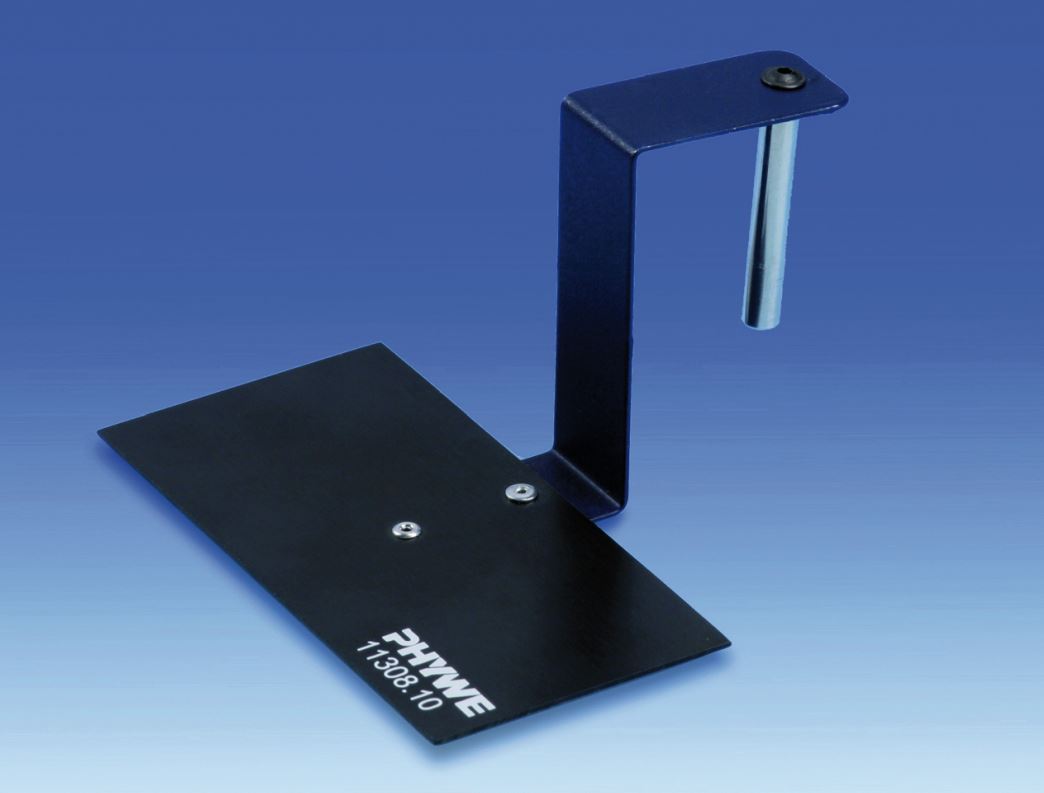

Aperture to be mounted on the motor driven cart for measurements for interrupting the fork light barrier.

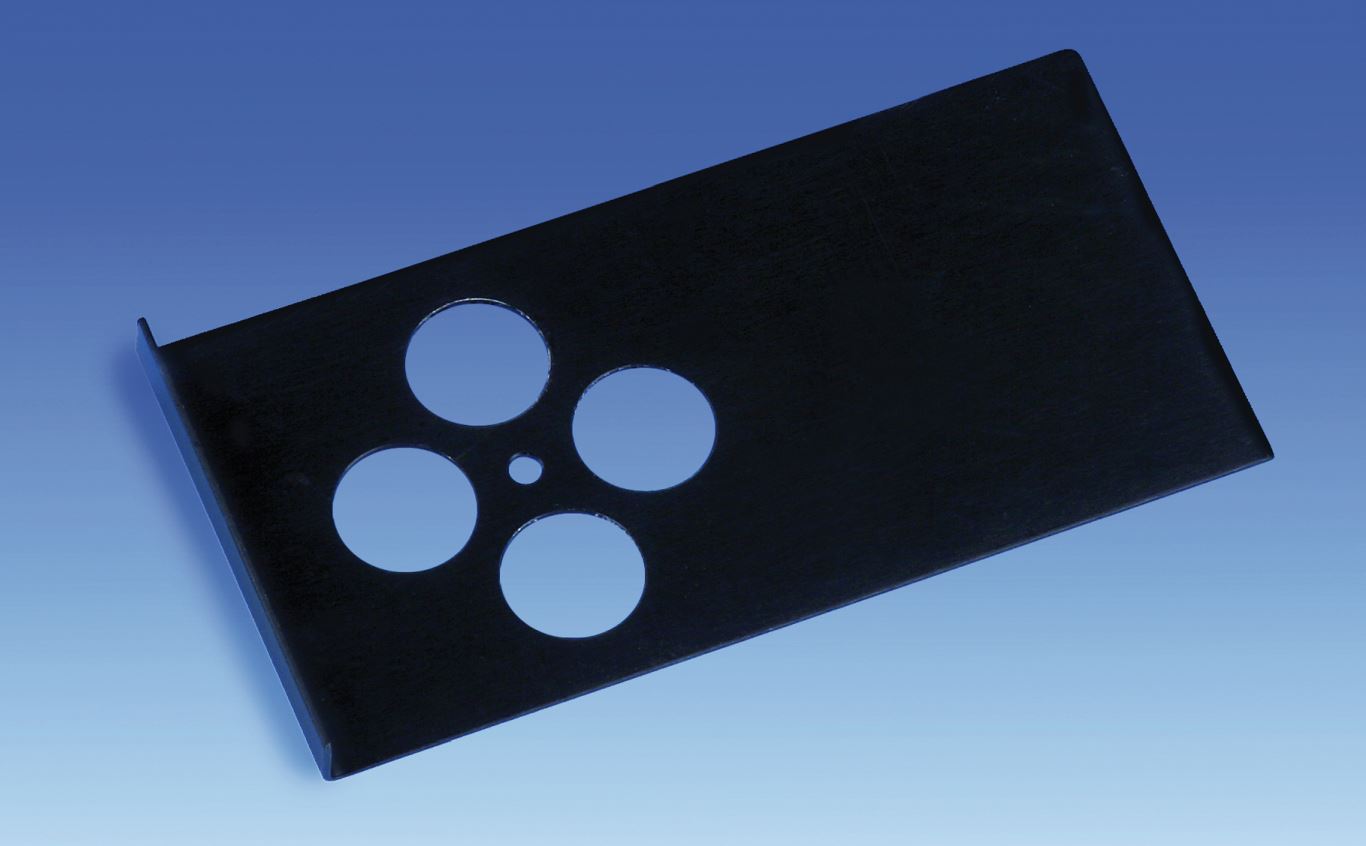

Aperture to be mounted on the cart for measurements for interrupting the fork light barrier. Material: black anodised aluminium. Dimensions (mm): 100 x 50. Mass (g): 10.

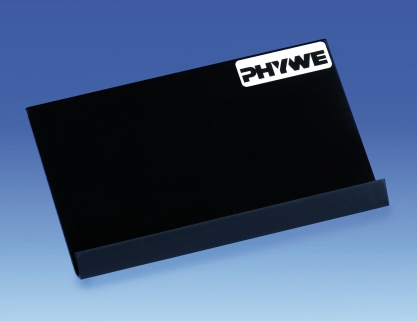

Shutter plate with quick-release system for low friction cart for demonstration track. Dimensions (mm): 15 × 100 × 50. Masse: 20 g.
(no description provided)
(no description provided)

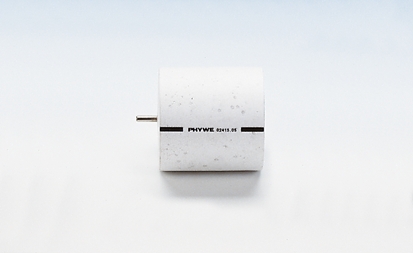

Solid cylinder on stem for angular oscillation apparatus (02415-88).
With ballistic pendulum for determination of the velocity of projectiles.

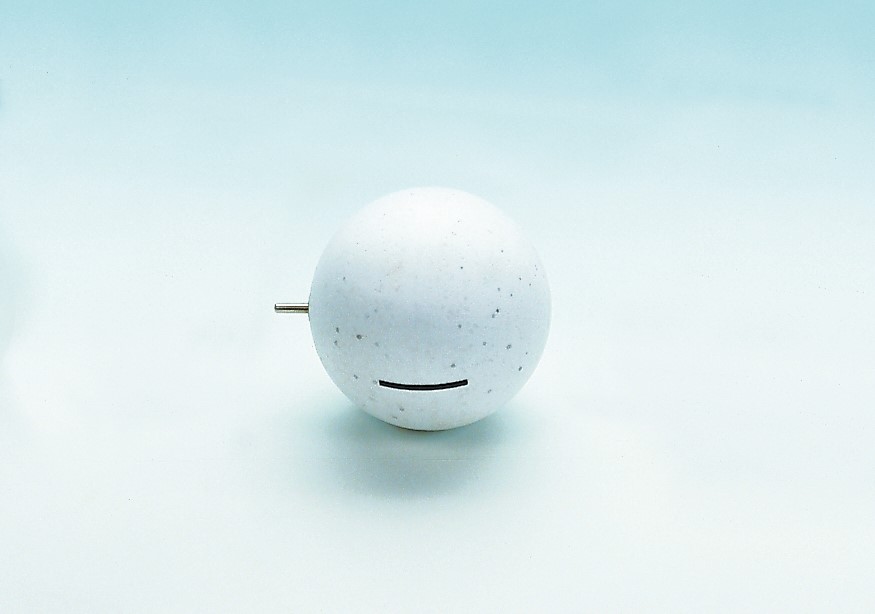

Styrofoam sphere on stem for rotation oscillation apparatus. Sphere diameter: 140 mm. Weight: 760 g.
For momentum conservation experiments (collision experiments); can be set onto cars (11060.00). Two springs can be tensed against each other by means of a cable release.

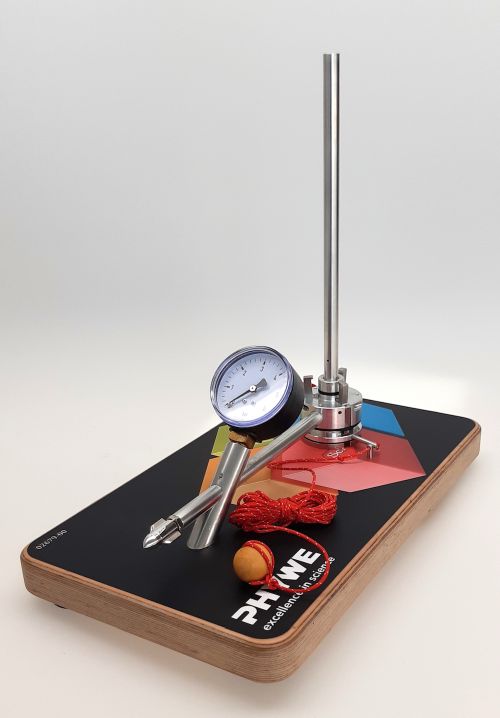

Launch tube for the Phywe rocket with nozzle and nozzle set (15 mm each) for gluing into disposable PET bottles of the PCO-1810 standard. SLT file to produce nozzles yourself on a 3D printer.

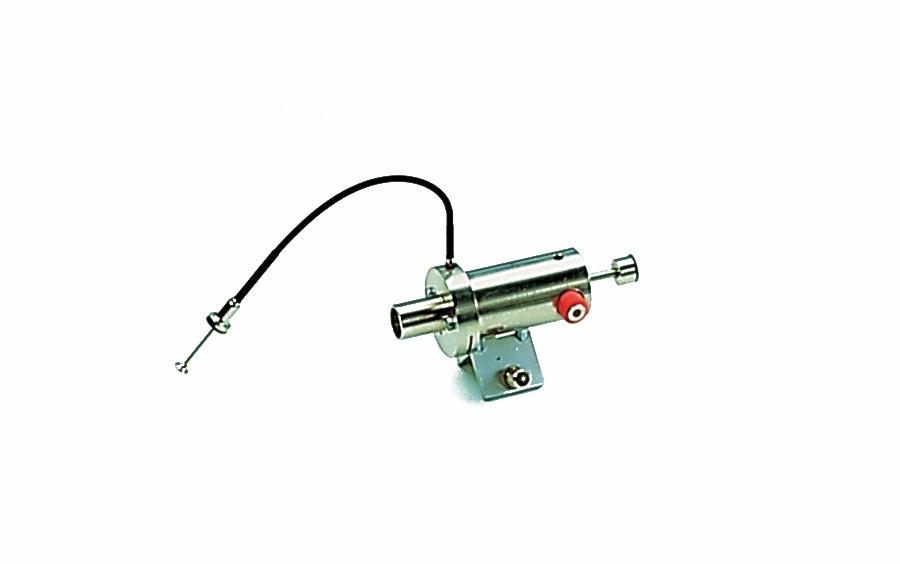

This apparatus provides defined, constant starting pulses for gliders. It can fix a glider in starting position and release it when trigger device is operated.

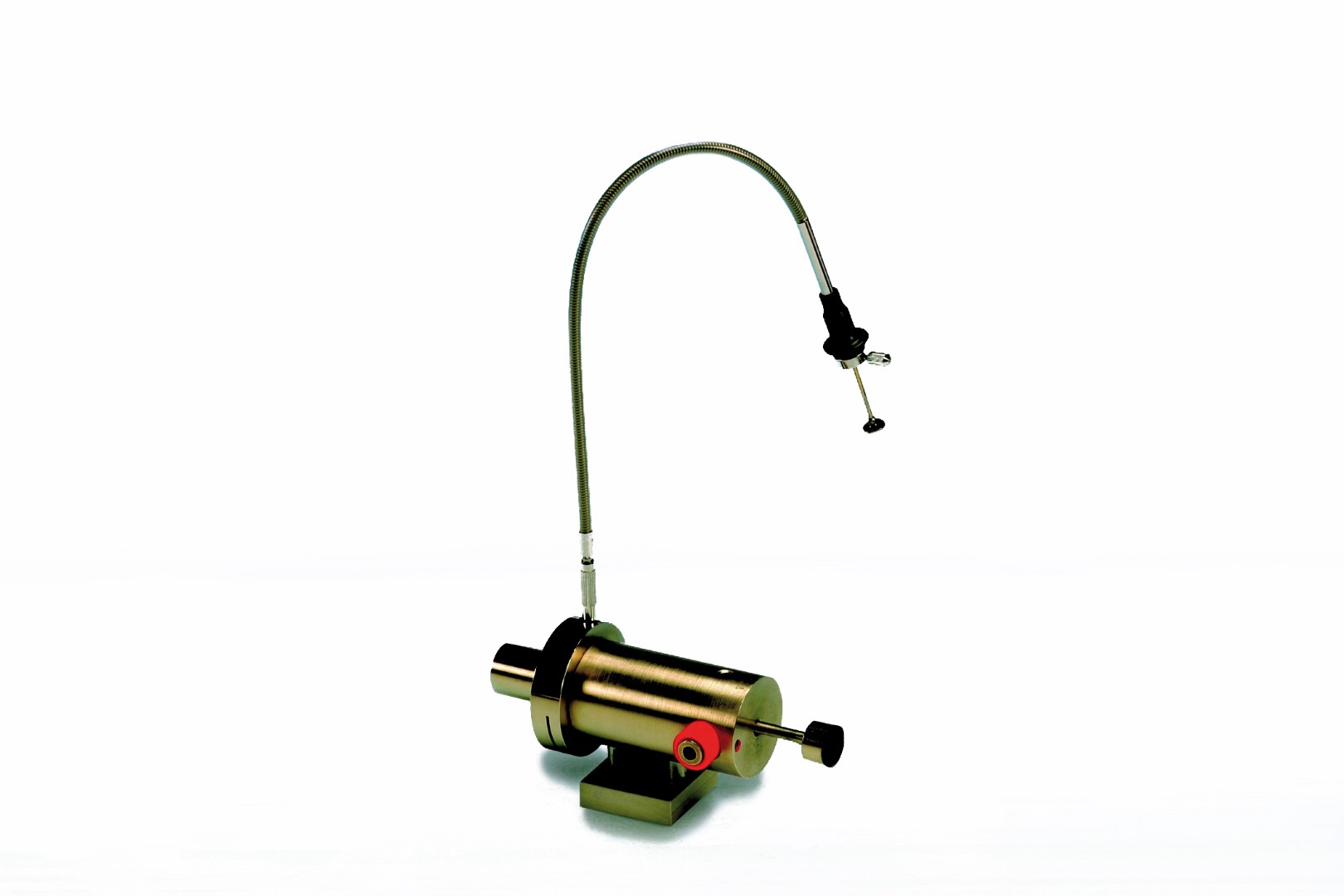

This apparatus provides defined, constant starting velocities for carts on the demonstration track. It can fix a cart in starting position and release with parallel trigger pulse for counter.
For arbitrary limitation of wavelengths on the air track. With hole to take inserts with 4 mm plugs.

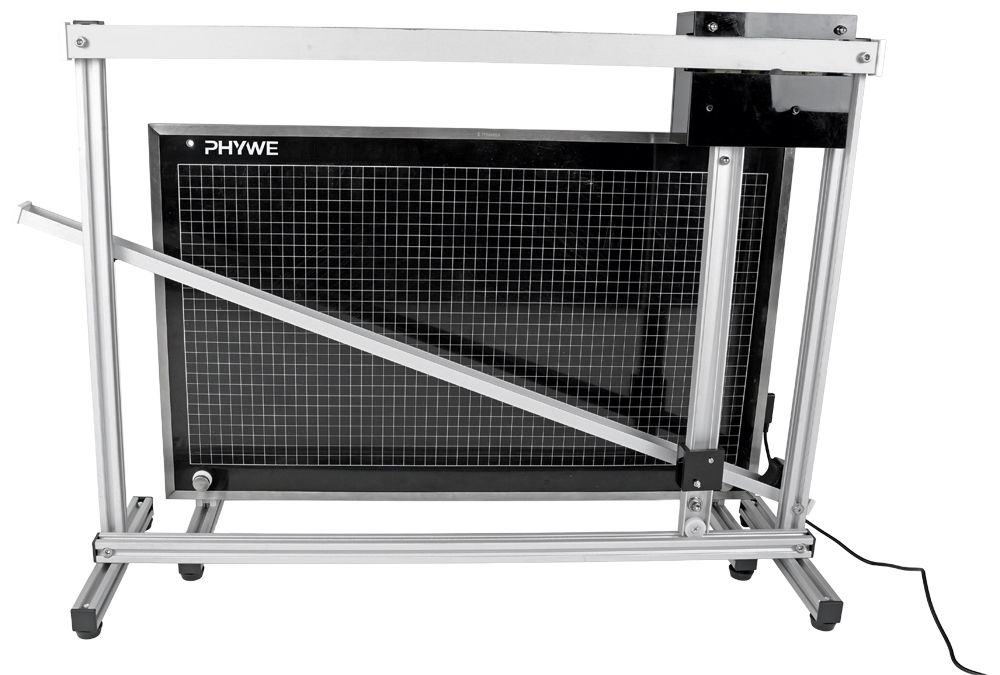

Superposition and Decomposition of Motions with Cobra DigiMotion, supplied in the U.S. by American Scientific. Contact us for specifications.

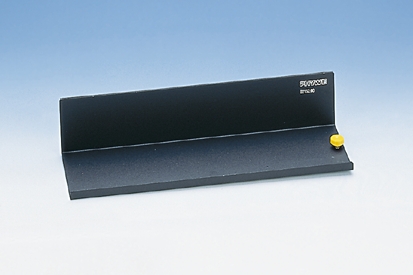

For determination of rectilineal motions and to build an inclined plane.
Tube in connection with needle with plug for inelastic collision on the air track. With plasticine filling. Mass: 10 ± 1 g. Dimensions (mm): 11 x 50 x 11.
Aluminium disk for rotator with air bearing (02417.88).

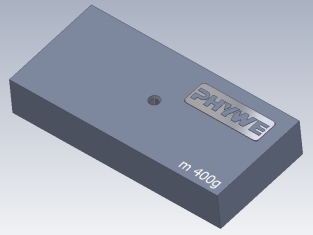

Weight piece for low friction cart. The weight of this weight piece is equivalent to the weight of the low friction cart plus additional accessories. Dimensions (mm): 85 × 40 × 15. Mass: 400 ± 5 g.
(no description provided)
