Energy
Hydrogen fuel cell car
Article No:
06769-00

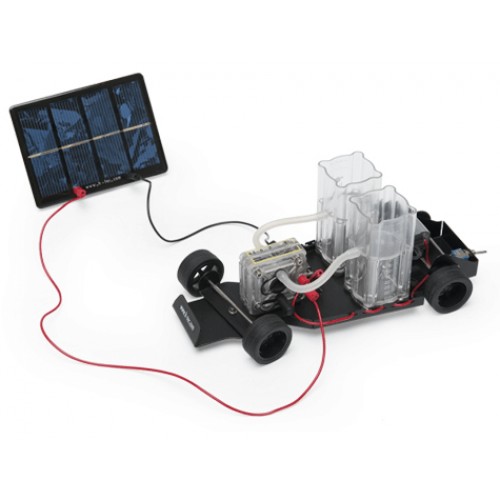

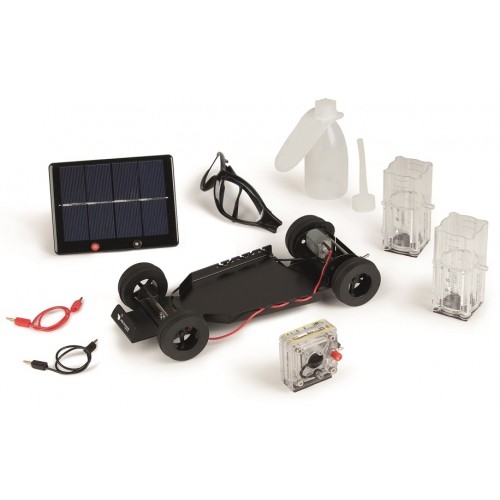

For a clear demonstration of the use of hydrogen energy. The car has a blackly coated plate and is equipped with a reversible PEM fuel cell and two gas tanks for hydrogen and oxygen. Because the components are fixed on magnetic base plates they stick tight on the plate of the car during the experiments. The car has an electrical motor with a gear and a changeover switch for loading and driving operation. Only distilled water is needed for the filling of the gas tanks.
Specifications
| electrolyser mode | 1.16 W |
| gas production | 5 cm³/min H2 and 2,5 cm³/min O2 |
| H2/O2 | 300 mW |
| H2/air | 100 mW |
| gas storage | H2/O2: each 30 cm³ |
| solar module | max. 2.0 V / 600 mA |
| dimensions (L x H x W) | 260 mm x 100 mm x 115 mm |
| charging time (30 cm³ H2) | with solar battery: approx. 9 min |
| driving time | approx. 8 min |
Available through American Scientific
All units adapted for 110V/60Hz. Contact us for volume pricing and grant assistance.
