Measure Hall voltage and conductivity in doped and undoped germanium, up to 140 °C.

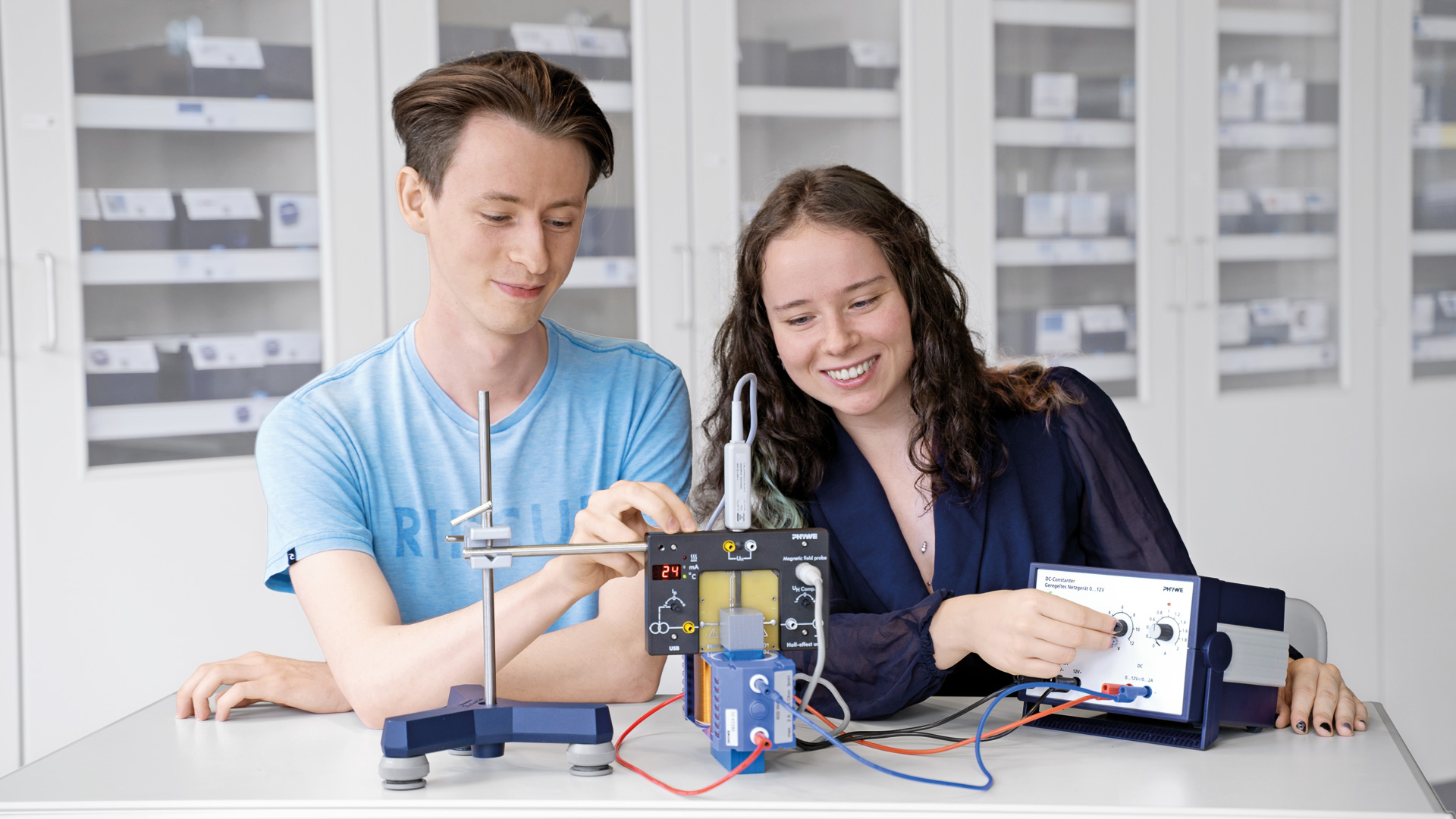

The Hall effect unit is used for holding and supplying Hall effect carrier boards with doped and undoped germanium crystals. It enables temperature-dependent measurement of Hall voltage and conductivity.
| Max. sample current | ±55 mA |
| Max. sample temperature | 140 °C |
| Power supply max. | 12 V AC / 48 VA |
| Housing outer dimensions | 16 × 10.5 × 2.5 cm |
| Weight | 0.6 kg |
All units adapted for 110V/60Hz. Contact us for volume pricing and grant assistance.
Move the magnetic field and switch between n-type and p-type germanium. The Hall voltage reverses sign for the other carrier type.
Bring this to your lab →Insert a doped (n-type or p-type) or undoped germanium carrier board into the unit.
Vary the magnetic field and sample current, up to ±55 mA, and record the Hall voltage that appears across the sample.
Warm the sample up to 140 °C to see how conductivity and carrier behavior change, and tell n-type from p-type by the sign of the voltage.
Typical student results: opposite Hall voltage signs for n-type and p-type germanium (illustrative).
