Modern Physics
Alpha and Photodetector
Article No:
09099-00

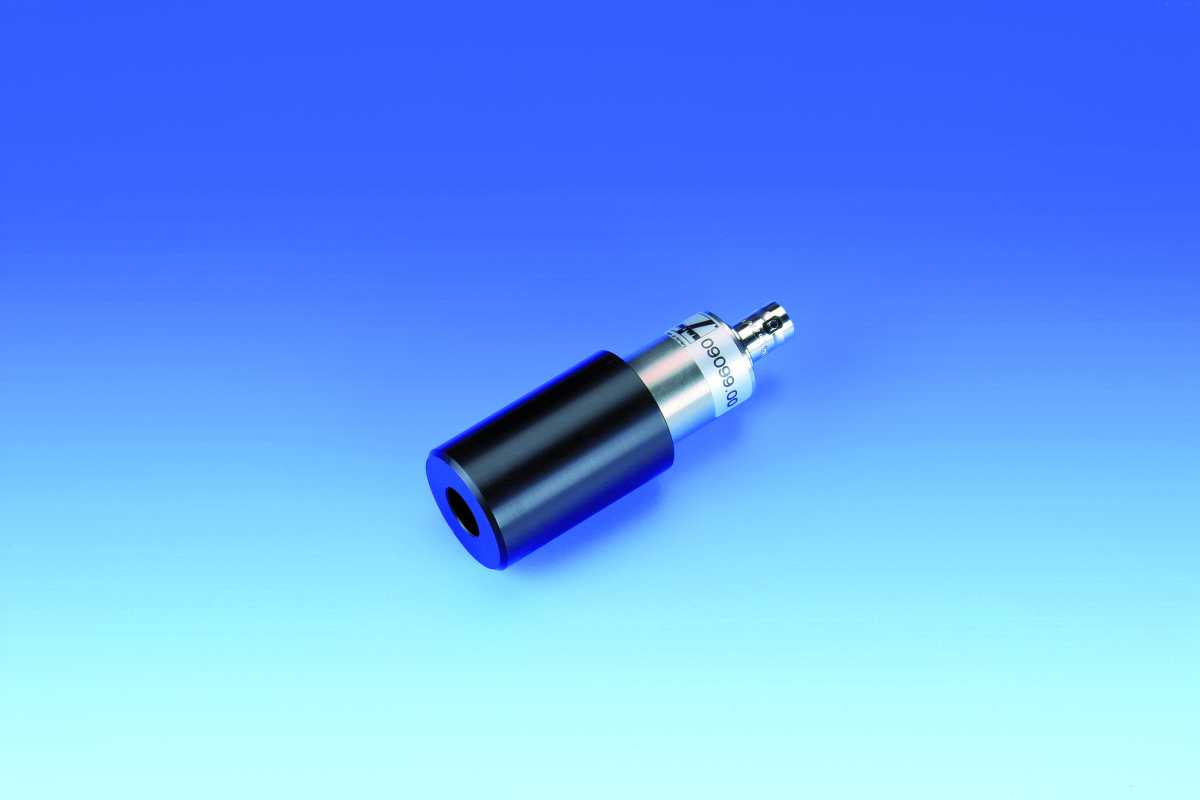

This alpha-particle detector is for detecting alpha radiation and determining its energy.
Key Features
- Sensitive surface: 15 mm 2 .
- Energy resolution for alpha particles at 5.486 MeV: 30 keV.
- Required biasing: - 8... -38 V.
- Detector dimensions (length x diameter): 51 mm x 22 mm.
- Screen dimensions (length x diameter): 70 mm x 45 mm.
- Weight of detector: 55 g approx.
- Weight of screen: 35 g approx.
- The detector is supplied with a protective cap and a screen to keep out visible light.
Specifications
| Sensitive surface | 15 mm 2 |
| Energy resolution for alpha particles at 5.486 MeV | 30 keV |
| Required biasing | - 8... -38 V |
| Detector dimensions (length x diameter) | 51 mm x 22 mm |
| Screen dimensions (length x diameter) | 70 mm x 45 mm |
| Weight of detector | 55 g approx |
| Weight of screen | 35 g approx |
